TB2 Multimedia Player LED Display Controller (Synchronous & Asynchronous Modes) for Full Color LED

TB2 Multimedia Player LED Display Controller (Synchronous & Asynchronous Modes) for Full Color LED

Advantages:
- Load capacity: 650,000
- Processing power: 4 cores, 1GB running memory + on-board 8GB internal storage
- WiFi function: √
- Optional 3G, 4G function: √ (extra costs should be paid)
- Redundant backup : ×
- Synchronous/asynchronous switching: √
- Splicing and loaded: ×
- Application: small screens fixed indoors and outdoors and shop window transparent screens

Features:
- It is the second generation multimedia player for small and medium-sized full-color LED displays.
- Powerful processing performance.
- All-round control scheme.
- Synchronous and asynchronous modes are supported.
- Supports WiFi AP connections.
- Supports direct connection to PC via USB.
- Support program release and display control via PC, mobile phone and LAN, and also support remote centralized release and monitoring.

Hardware Characteristics:
- Supports 650,000 pixels; width up to 1920 pixels and height up to 1080 pixels.
- Supports wired networks.
- Support stereo audio output.
- Support HDMI input mode and full-screen adaptive playing mode.
- Support U disk program import and playing.
- On-board brightness sensor interface with automatic and timed intelligent brightness adjustment.

Application Scenarios:
- It can be widely used in LED commercial display fields, such as light pole screens, chain store screens, commercial LCD displays, mirror screens, retail store screens, displays at the door, car screens, PC-free screens, etc.

Specifications:
- Maximum load: 650,000 points
- Maximum width and height: width 1920; height 1080
- CPU: Main frequency 1.2GHz
- Storage: 1GB+32GB
- Storage expansion: support U disk up to 128G
- Video decoding capability: 1080P
- Operating system: For Android 5.1
- Multi-channel video windowing: 1 x 1080P or 2 x 720P or 4 x 360P
- Sync play: √
- Synchronous and asynchronous switching: √
- HDMI splicing and playing: ×
- Sensor access: ×
- Audio output: √
- U disk local playing: √ (USB2.0)
- Wired network: 100Mbit
- WiFi network: 2.4GHZ, AP&STA soft switching
- Optional 4G network: √ (4G module needs to be purchased separately)
- 5G network: x
- Product certification: x
- Handy/Express/VNNOX: √
- Dr. Screen/Boss Screen: √
- Nova SDK Protocol: √

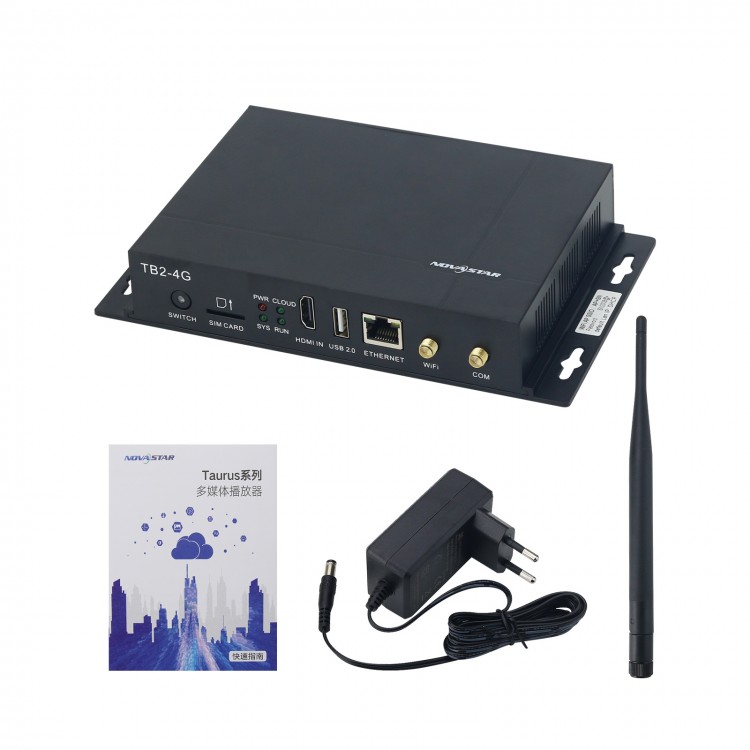

Package Included:
- 1 x Multimedia Player

Note:
- 4G module is optional. If it is needed, please contact us to pay the extra cost. Thank you!
