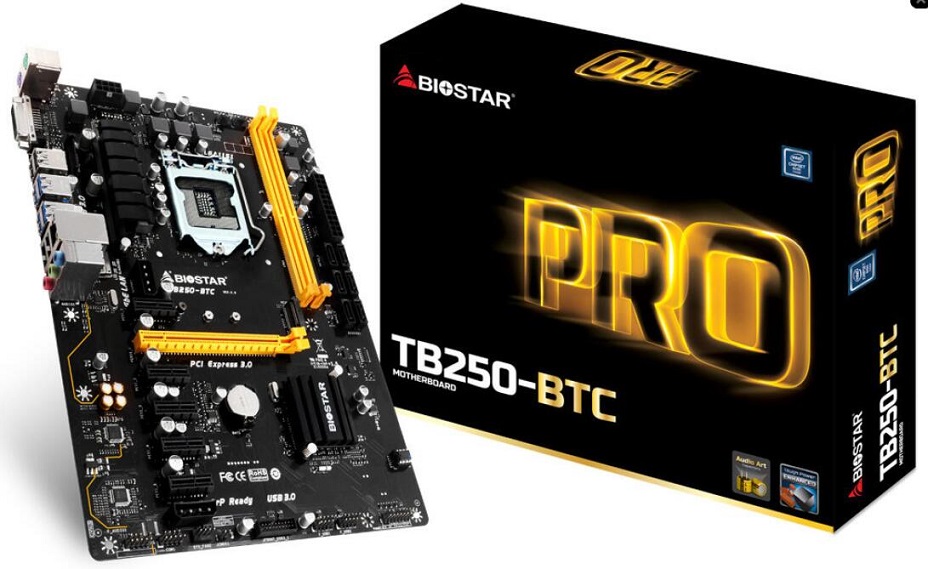

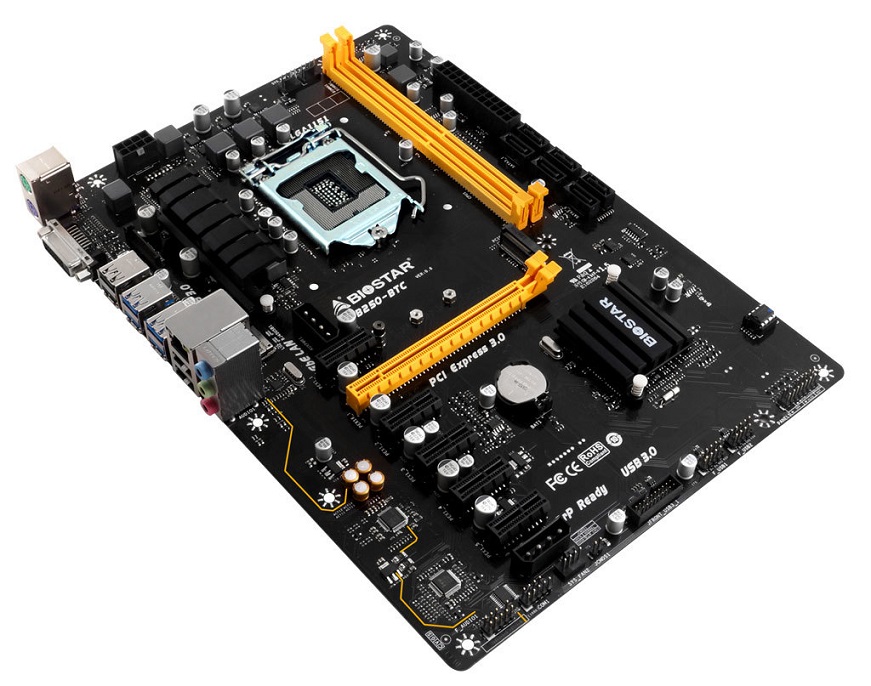

TB250-BTC Mining Motherboard Intel B250 Chipset Support 6 PCI-e Slots with 6 Cards

TB250-BTC Mining Motherboard Intel B250 Chipset Support 6 PCI-e Slots with 6 Cards

CPU support:

Memory support:

Features:
- Supports 7th Generation Intel Core Processor
- Intel B250 single chip architecture
- Support 2-DIMM DDR4-2400/2133/1866 up to 32G maximum capacity
- Support DVI-D
- Support USB 3.0
- Supports 100% Solid capacitor
- Supports Charger Booster
- Supports BIOS Online Update

Audio+:
- HD Audio:Provides high quality sound with minimal loss of audio fidelity.
- AudioArt Capacitors:PRO series comes with Nichicon high-end audio capacitors.Nichicon Capacitors offer artistic-like sound resolution and Hi-Fi audio amplification effect,making your room a live concert.

Video+:
- DVI is better than VGA for LCD displays since it is digital while VGA is analog. For LCD displays,the picture is digitized pixel per pixel.Through DVI,the panel gets data for each pixel,so the picture generated in the Graphics device matches the pixels on the panel itself.
- DirectX 12 introduces the next version of Direct3D,the graphics API at the heart of DirectX.Direct3D is one of the most critical pieces of a game or game engine,and we've redesigned it to be faster and more efficient than ever before.Direct3D 12 enables richer scenes,more objects,and full utilization of modern GPU hardware

Speed+:
- PCI-e M.2 32Gb/s is the latest storage interface,it delivers the highest bandwidth and lower latency.It's 3 times faster compared with PCI-e M.2 10Gb/s.
- SmartSpeedLAN is a free software application which monitors and manages your PC's network behavior.With user-friendly GUI,it allows you to select and prioritize different types of network traffic,including gaming,media streaming,communications or web surfing.You can also set any specific applications,choosing to prioritize or block accordingly.SmartSpeedLAN can feature automatic management options that use adaptive networking intelligence to ensure that you are getting the best online experience possible.

Durable+:
- The popularity of PC usage and working environment is getting deteriorating and moist(rural, coastal,etc.).The PCB will be oxidizing easily by damp or absorbed moisture,and ionic migration or CAF (Conductive Anodic Filament) will be generated.Moisture-proof PCB meets high density and high reliability requirements for moisture proof.
- Low resistance design can significantly reduce the current out of energy loss.Low temperature,small size,excellent thermal conductivity.

Specification:
- Chipset:Intel B250
- CODEC:Realtek ALC887 8-Channel HD Audio;Support HD Audio

CPU SUPPORT:
- 7th & 6th Gen Intel Core i7 LGA 1151 Processor
- 7th & 6th Gen Intel Core i5 LGA 1151 Processor
- 7th & 6th Gen Intel Core i3 LGA 1151 Processor
- 7th & 6th Gen Intel Pentium LGA 1151 Processor
- 7th & 6th Gen Intel Celeron LGA 1151 Processor
- Maximum CPU TDP (Thermal Design Power):95Watt

MEMORY:
- Support Dual Channel DDR4 2400/2133/1866 MHz
- 2 x DDR4 DIMM Memory Slot
- Max.Supports up to 32GB Memory
- DDR4 2400 for 7th Generation Intel Core Processor Family

EXPANSION SLOT:
- 1 x PCI-E x16 3.0 Slot
- 5 x PCI-E x1 3.0 Slot(using for bitcoin mining,it is suggested to change to PCI-E 1.0 via BIOS)

STORAGE: 6 x SATA3 Connector;1 x M.2 Key M 32Gb/s Connector,support M.2 type 2242/2260/2280 SATA 6Gb/s & PCIe Storage

USB:
- 4 x USB 3.0 Port
- 1 x USB 3.0 Header
- 2 x USB 2.0 Port
- 2 x USB 2.0 Port(only 5V power, up to 1.5A)
- 2 x USB 2.0 Header

LAN: Realtek RTL8111H - 10/100/1000 Controller;Support Super LAN Surge Protection

INTEGRATED VIDEO:
- By CPU model
- Supports DX12
- Supports HDCP

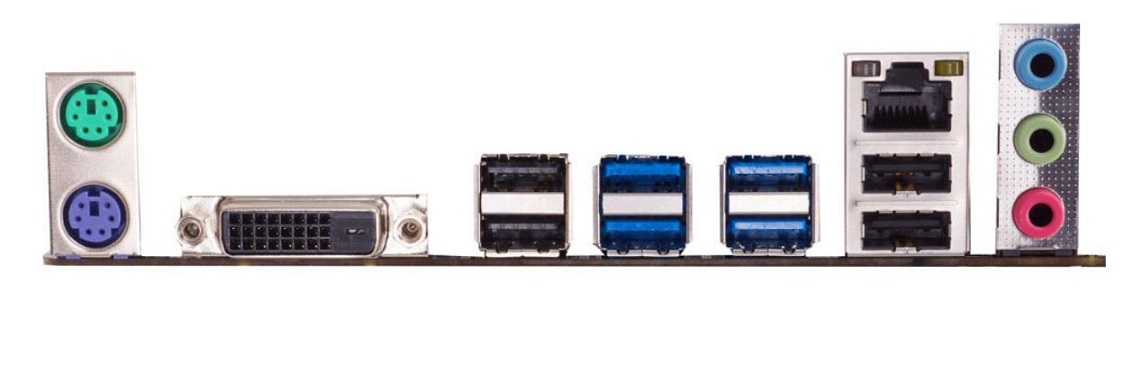

REAR I/O:
1 x PS/2 Mouse
1 x PS/2 Keyboard
4 x USB 3.0 Port
2 x USB 2.0 Port
2 x USB 2.0 Port(only 5V power, up to 1.5A)
1 x DVI-D Connector, resolution up to 1920 x 1200 @60Hz
1 x RJ-45 Port
3 x Audio Connector

INTERNAL I/O:
1 x USB 3.0 Header
2 x USB 2.0 Header
6 x SATA3 6Gb/s Connector
1 x SATA Power Connector(for rear USB power enhancement)
1 x M.2 Key M 32Gb/s Connector,support M.2 type 2242/ 2260/ 2280 SATA 6Gb/s & PCIe Storage
1 x Front Audio Header
1 x Front Panel Header
1 x CPU Fan Header
2 x System Fan Header
1 x Serial Header
2 x PCI-E 12V 4Pin Connector(Must be installed when using for bitcoin mining.)

H/W MONITORING:
- CPU/System Temperature Monitoring
- CPU/System Fan Monitoring
- Smart/Manual CPU Fan Control
- System Voltage Monitoring

DIMENSION: ATX Form Factor Dimension: 29.5cmx21cm(WxL)

OS SUPPORT:
- Support Windows 10(x64) for Intel 7th Generation Processor
- Support Windows 7/8.1(x64)/10(x64) for Intel 6th Generation Processor

BUNDLE: BullGuard

SOFTWARE:
- Smart Speed LAN(Windows 7/ 8.1 only)
- Intel Rapid Storage Technology

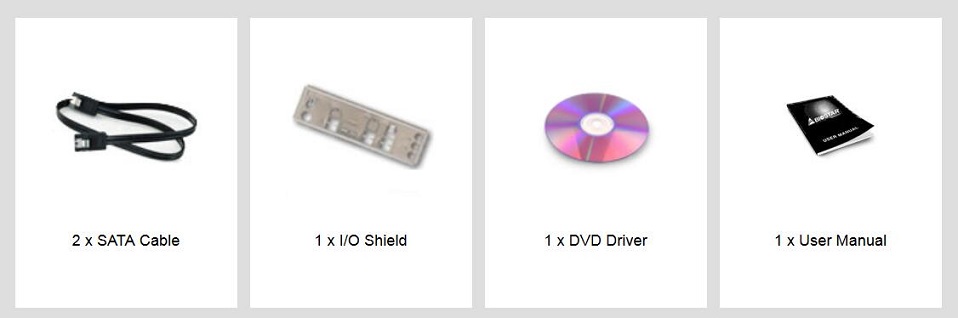

Accessories:
- 2 x SATA Cable
- 1 x I/O Shield
- 1 x DVD Driver
- 1 x User Manual
