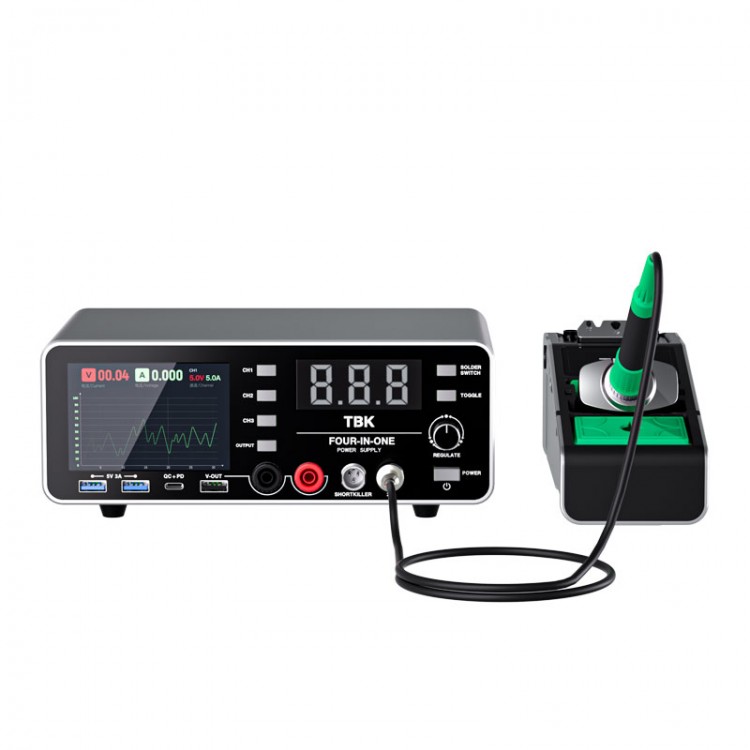

TBK-219 20V 5A Four-in-One Workstation Power Soldering Iron w/ Power Supply & Current Curve Monitoring

Availability: In stock, usually dispatched in 1 business day

  • Price:$202.59
  • Price in reward points: 2026 Reward Points: 20
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $198.54 $194.49 $188.41 $180.31 Contact US
Quantity:
TBK-219 20V 5A Four-in-One Workstation Power Soldering Iron w/ Power Supply & Current Curve Monitoring

Key Advantages:

* 100W High-Speed Engine: 20V 5A rapid power output
* Curve Monitoring: Real-time current curve detection
* Automatic Sleep: Smart sensor-based sleep mode
* Short Circuit Recovery: Automatic circuit fault repair
* Charging Detection: Real-time charging data monitoring
* T210 Soldering Iron: Heats up in just one second
* Channel Memory: Three-channel quick data switching
* One-Key Output: Safety-assured operation
* Compact & Portable: Small size, lightweight design

Features:
TBK-219 All-in-One Workstation Power Soldering Iron
* It is a fully integrated workstation that combines power supply output, a rapid-heating soldering iron, and intelligent fault detection through real-time current curve analysis.
* TBK-219 redefines the workbench — a revolution in efficiency.

100W Output Power
* High-power output and ultra-low internal resistance ensure smoother startup for connected devices.

Curve & Numerical Current Monitoring
* Designed for electronic diagnostics and repair, it displays real-time current curve graphs with high refresh rate, helping users anticipate overloads and short circuit risks.

Short Circuit Recovery | Self-Healing Safety Link
* It features adjustable voltage and controllable current to instantly handle short circuit points.

One-Key Output
* It prevents damage to the motherboard data pins caused by accidentally slipping while connecting the battery terminal under power.
* After disconnecting the power, simply press the one-key output button to safely power the motherboard.

Charging Detection
* Visual monitoring of USB and Type-C charging voltage, current, and power.
* It supports QC protocols using DM and DP, and PD protocols via CC1 and CC2.

T210 Soldering Iron Heats in 1 Second
* Built with aerospace-grade ceramic heating core and dynamic PID algorithm, it melts solder from a cold start in the blink of an eye.

Channel Memory – 3 Preset Groups
* Prestore and switch between three voltage/current presets for different tasks like high-power device repair and diagnostics. Users can switch data sets quickly and easily.

3.5-Inch IPS LCD Screen
* Bright, sharp display for real-time data visualization and intuitive operation.

Specifications:
* Model: TBK-219
* Item Name: 4-in-1 Workstation Power Soldering Iron
* Input Voltage: AC110V/220V
* Output Voltage: DC 0~30V
* Soldering Iron Temperature: 50~450°C
* Current Display Accuracy: ±1mA
* Fuse: 3A (220VAC)
* Maximum Output Current: 10A
* Maximum Output Power: 250W
* Voltage Adjustment Step: 0.1V
* Product Dimensions: 214 × 130 × 88 mm
* Net Weight: 1.6 kg

Packing List:
* 1 x Multifunctional Workstation Power Soldering Iron (Main Unit + Sleep Stand + Soldering Iron + T210 Tip)
* 1 x Alligator Clip Cable
* 1 x Power Cable
* 1 x Programming Cable
* 1 x Sleep Mode Cable

Packaging Details:
* Package Dimensions: 405 × 270 × 150 mm
* Gross Weight: 2.5 kg
