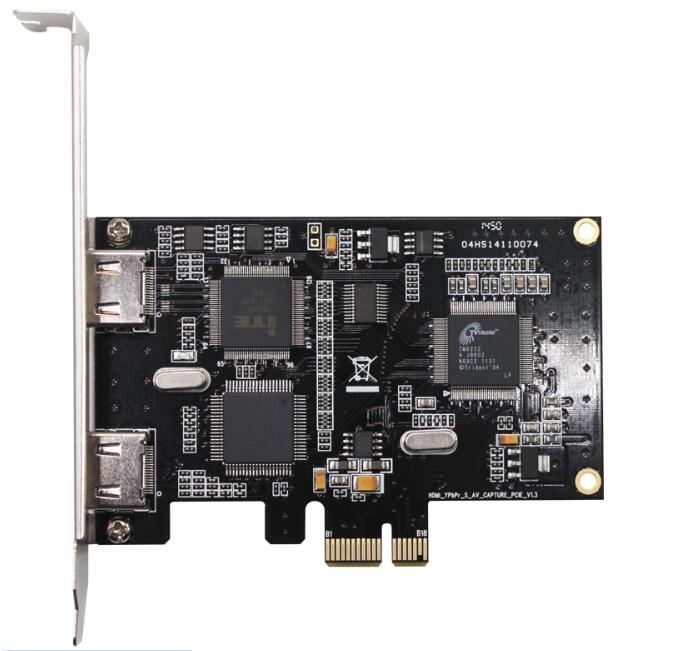

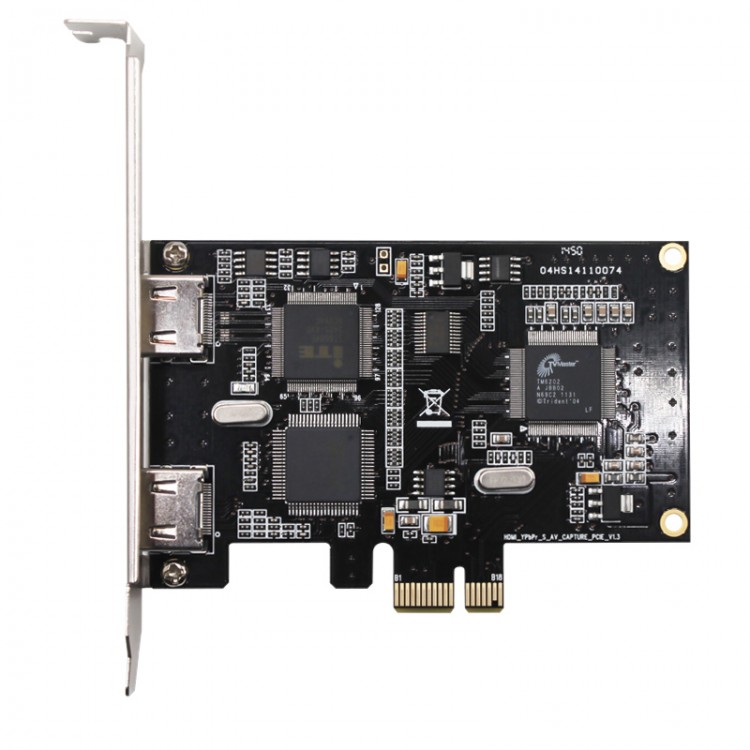

TC 737 Video Card HD 1080i 720P Pci-e Support Multiple Cards

TC 737 Video Card HD 1080i 720P Pci-e Support Multiple Cards

Product Description:
- TC 737 can collect 1-channel HD or standard definition video signal,1-channel stere analog audio signal.
video input can connect HDMI,YPbPr,CVBS,S terminal video full function interface.
- TC 737 HD acquisition card supports all HDMI device the following resolution:Sony Z 5C high definition camera,resolution:1080i(50i)

Product parameter:
- AV /S terminal interface:PAL/ NTSC  480I 576i
- UV components:480i / 480p  576i 576p  720p(50/ 60) 1080i (50 / 60)
- HDMI:576i / 576p  720p(50 60)  1080i (50 / 60)
- Support resolution MAX.FPS:1080i @60 fps

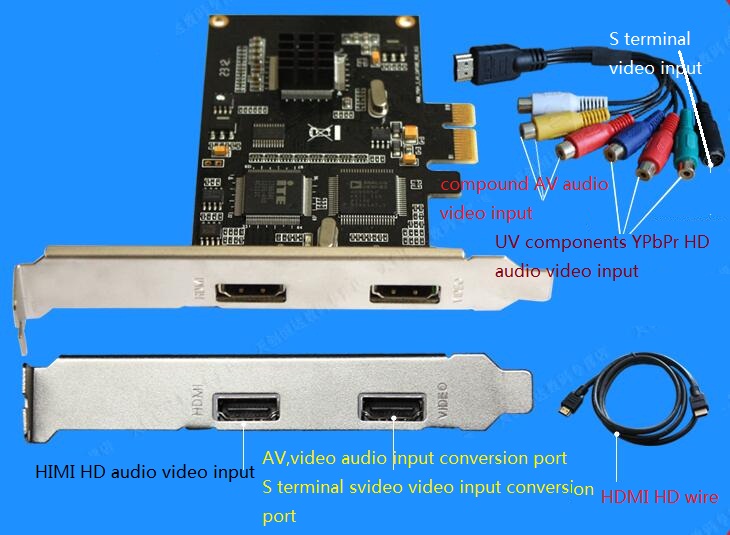

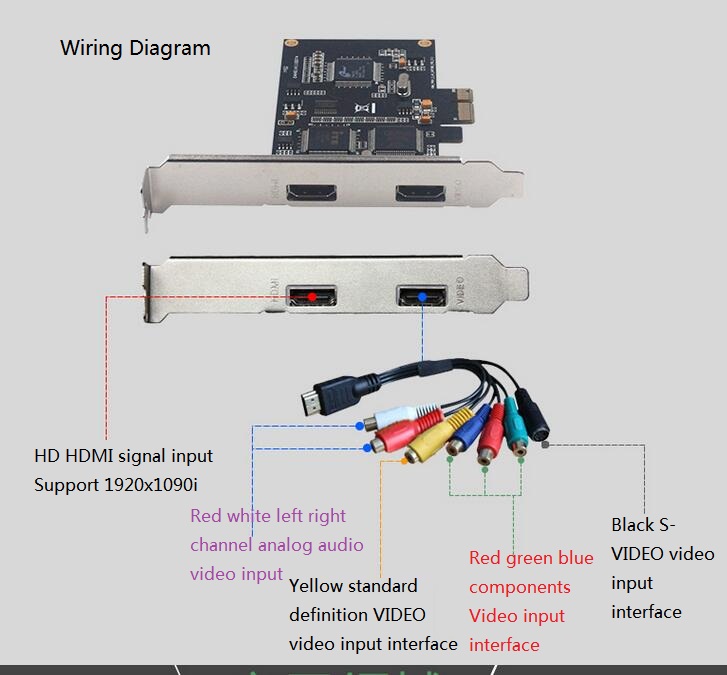

- Video Input interface:1 x HDMI, 1 x YPbPr, 1 x Component ,1 x S-Video
- Audio Input interface:1 x HDMI, 2 x RCA
- Main board Interface:PCIe 1.0a&1.1
- HDMI&HDCP version (HDMI&HDCP Ver):1.4&1.4
- Blue-ray support:Yes
- Recoding Mode:Software Compression
- Dimension:64mm X 100mm
- HD Video Resolutions:
1920x1080i @60/50 fps
1280x720p @60/50 fps
800x600p @60 fps
720x576p @50 fps
720x576i @50 fps
720x480p @60 fps
720x480i @60 fps
- SD Video Resolutions:
720x576i @50 fps
720x480p @60 fps
720x480i @60 fps
352x288p @50 fps
352x240p @60 fps
160x120p @50 fps
- Independent Audio Device:Yes
- Display Video Format:YUY2
- Multiple Cards:Yes
- De_interlace:Yes
- SDK:Yes

Software Support:
- Support standard DIRECT SHOWAPI:DirectShow,support current video edit software:AdobePremiere Pro CS5,Media Live Encoder,MicrosoftMedia Encoder,AMCap,VLC Media Player....,ect.
- Single card,signal acquisition advantages:1-channel HD HDMI;1-channel Component HD;1-channel compound AV;1-channel compound S terminal
- Support multiple cards simultaneous work.

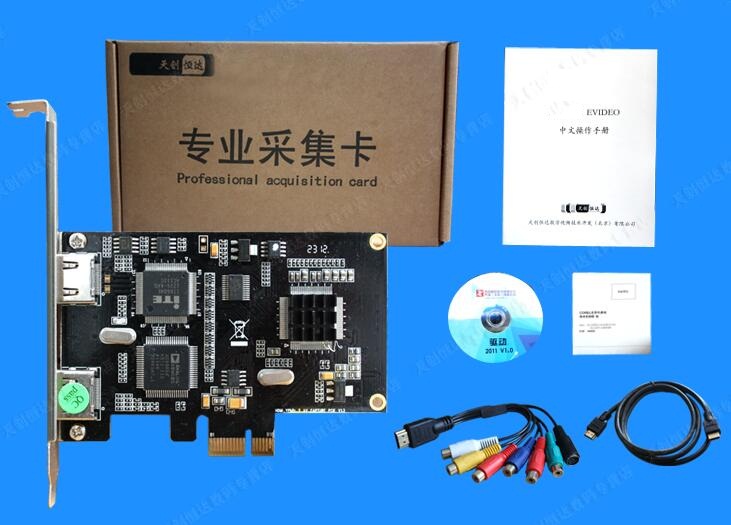

Package List:
- 1 x TC 737 Video Card
- 1 x USB wire
- 1 x Connect adapter
- 1 x User manual
- 1 x CD
- 1 x Package Box
