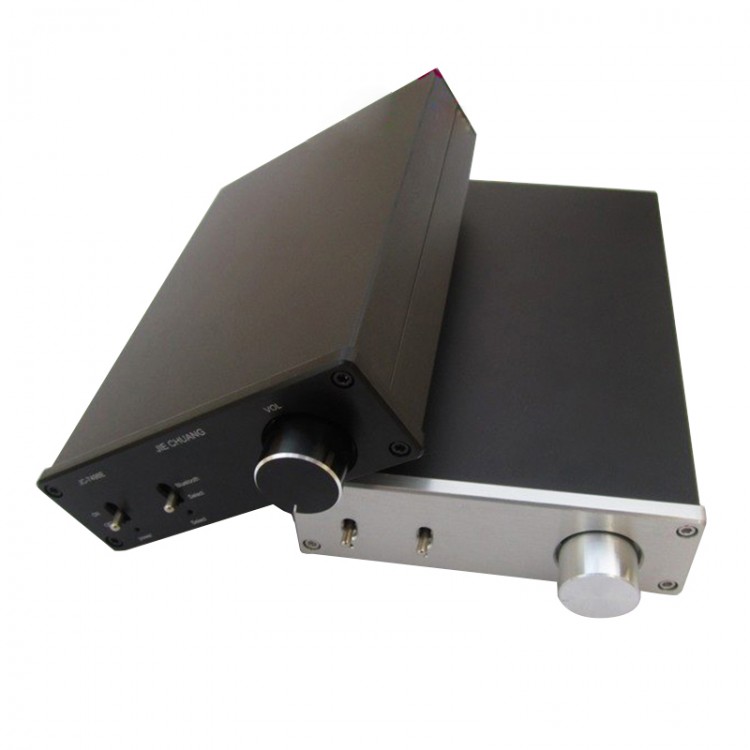

TDA7498E 2X160W HIFI Bluetooth Digital Amplifier Dual Track Black + Power Supply
- New TDA7498E 2X160W HIFI Bluetooth Digital Amplifier Dual Track+Power Supply
- Thin Appearance ;Superior Sound Quality; Home audio;
- Professional sound system ;Active speaker;
- 320W Power handling capabilities; Strong current output characteristic.
- Power density is 20%higher than that in the market.
- TDA7498E are integrated in the final application.
- It can improve the quality of multiple audio optimization function,
- including built-in noise suppression, standby function and mute function,
- as well as the most suitable for control the balance of TDMA (time division multiple access) noise input.
- New product is built-in intelligent electric current protection function.
- It can identify the speaker of the peak current frequency range,
- and automatically prevent interruption of audio stream output.
- DC=36V hour160W+160W;RL=4Ω，THD=10%
- 120W + 120 W；THD = 10% ；RL = 6Ω ；
- 100W + 100 W；THD = 10% ；RL = 8Ω ；
- 160-W + 160-W output power at THD = 10% with RL = 4 Ω and VCC = 36 V
- 1 x 220 W output power mono parallel BTL at THD = 10% with RL = 3 Ω and VCC = 36 V
- Wide-range single-supply operation (14 - 36 V)
- High efficiency (η = 85%)
- Parallel BTL function using the MODE pin
- Four selectable, fixed gain settings of nominally 23.8dB, 29.8dB, 33.3 dB and 35.8dB
- Differential inputs minimize common-mode noise
- Standby and mute features
- Smart protection
- Thermal overload protection
- Small offset less than 20 mV
- TDA7498E 160W*2 black
- Choseal Q-304 Audio cable
- Power Supply(Input voltage：110-240V 50Hz Output voltage：36V/4.5A)
