TDA7498E 2X160W Mono Digital Amplifier Board Stereo BTL320W High Power Amp

Availability: In stock, usually dispatched in 1 business day

  • Price:$33.87
  • Price in reward points: 339 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $33.19 $32.52 $31.50 $30.14 Contact US
Quantity:

TDA7498E 2X160W Mono Digital Amplifier Board Stereo BTL320W High Power Amp


Description:
- Amplifier chip: Original TDA7498E (TDA7498 is 2X100W chip, TDA7498E is 2X160W chip)
- Output Power: 2X160W (use 4 ohm speaker impedance, input voltage 36V DC output power 160W + 160W)
- Operating voltage: 15 ~ 36VDC (generally using the recommended voltage 32V)
- Speaker Impedance: 8 ohms 4 ohms 6 Euro
- Cooling: Forced air temperature (heat sink temperature is high to a certain extent forced cooling fan operation)
- Efficiency: 85% (official data)
- Support BIL mode (amplifier board on the back of J1, J2, J3, J4 shorted) Mono 320W output (TDA7498, TDA7498L chip does not support this feature)

Package :

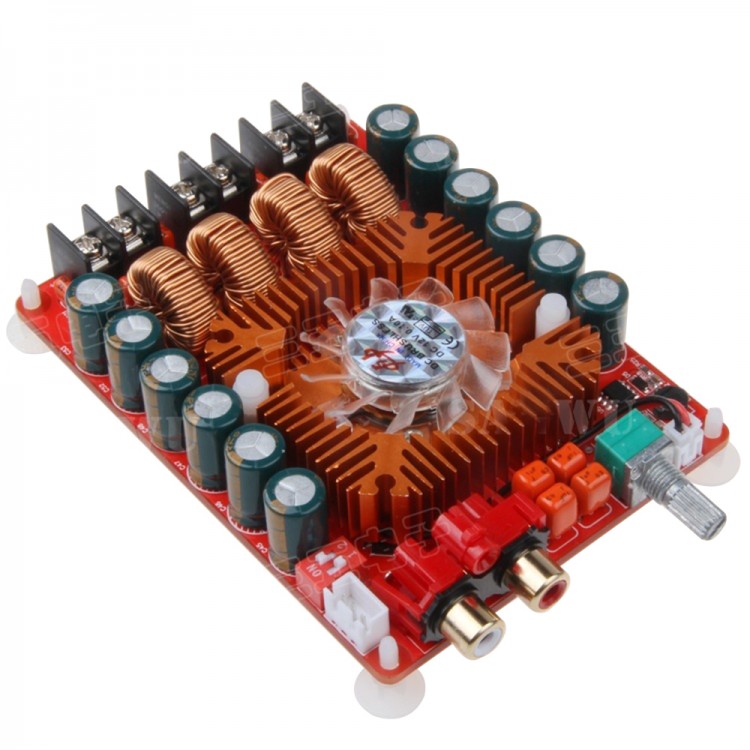

- 1pc module as picture show
