TDS-100H Handheld Ultrasonic Flow Meter High Performance Portable Flow Meter for Industrial Flow Measurement

TDS-100H Handheld Ultrasonic Flow Meter High Performance Portable Flow Meter for Industrial Flow Measurement

Features:
- Built-in charging circuit and Ni-MH rechargeable battery that can work continuously for ten hours
- Four lines of Chinese characters display flow rate, instantaneous flow, cumulative flow, signal status, etc. on the same screen
- The linearity is better than 1%.
- Diameter of measuring pipe: 15mm~6000mm
- Built-in data recorder can record date, cumulative flow, signal status, working time and etc.
- OCT outputs positive, negative, static cumulative pulse signal and frequency signal (1~9999HZ)
- RS232 standard data communication interface, used for exporting recorded data, online networking detection, etc
- Small measuring tube (can calibrate the water meter online, with an accuracy of+/- 0.5%)
- Mini size: 100 x 66 x 20mm; weight: 0.5kg
- Non-contact measurement: the magnetic ultrasonic flow meter sensor is adsorbed on the outer wall of the pipeline, which can complete the flow measurement with a large measurement range.
- Different types of sensors can be used to measure the flow of DN20 ~ DN1500 pipes. If larger pipe diameters need to be measured, please use this series of large-diameter ultrasonic flow meter.
- Large screen LCD display: it can display cumulative flow, instantaneous flow, flow rate, working status, etc. at the same time.
- Built-in data recorder: Built-in data recorder, with a space of 24k bytes, can store 2000 lines of measurement data.

Specification:
- Size: 100 x 66 x 20mm
- Weight: 516g
- Measuring medium: water, sea water, industrial sewage, acid-base liquid, various oils and other liquids that can transmit sound waves
- Flow rate range: 0 ~ ±32m/S
- Measuring precision: ±1%, velocity >0.2m/S
- Pipe section size: 15mm ~ 6000mm

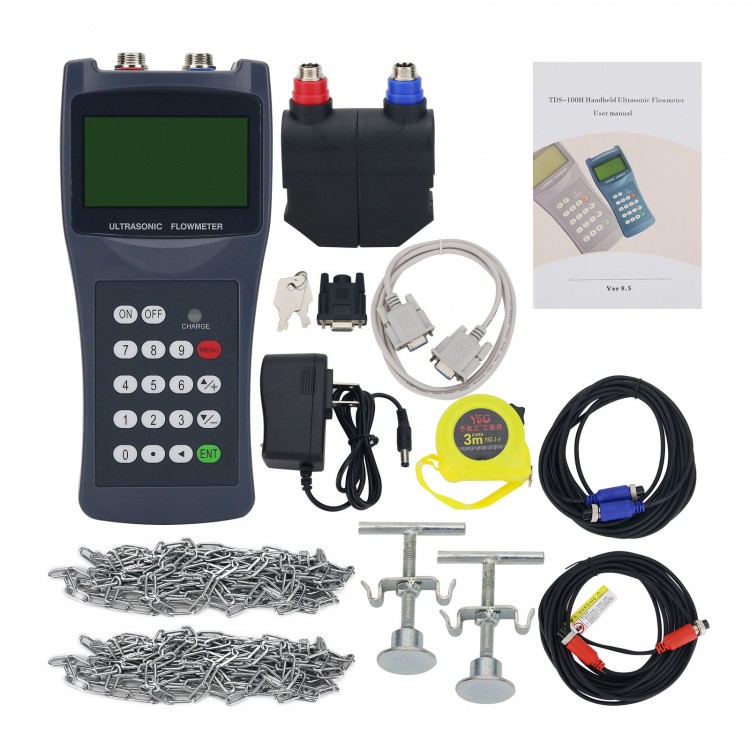

Package Included:
- 1 x TDS-100H Kit
