Tecsun 2P3 Radio DIY Kit AM MW Radio Receiver Assembly Parts Red Wine Color Unassembled

Tecsun 2P3 Radio DIY Kit AM MW Radio Receiver Assembly Parts Red Wine Color Unassembled

Description:
1. The BG7ICA version 2P3 adopts a more advanced epoxy double-sided board and PCB edging process. The board after the hole process is equivalent to a copper rivet. The welding is firmer. After the board is plated, it has good weldability, easier to weld beautiful solder joints.
2. Due to the use of double-sided printed boards, the component layout has been greatly adjusted, and the wiring is more reasonable.
3. A shielding cover is added to the detection diode, the antenna coil is wound in sections, and the high and low end sensitivities in the band are more uniform.
4. Improve the design, adjust some component parameters, and further improve the performance; reduce the phenomenon of DIY mis-installation, pre-adjust the frequency of the intermediate frequency transformer, and increase the success rate of one-time installation; the non-inductive screwdriver for debugging is reserved in the kit for easy accurate adjustment. More universal pads have been added to facilitate DIY, modify the circuit, and improve performance.

Specifications:
Frequency range: 530 kHz ~ 1620 kHz
Power voltage: 3V
Sensitivity: < 1mV/m
Max. output: 120mW
Quiescent current: 7mA

Features:
-Mixing circuit
-IF amplifier
-Detector
-Automatic gain control
-Audio amplifier

Package List:

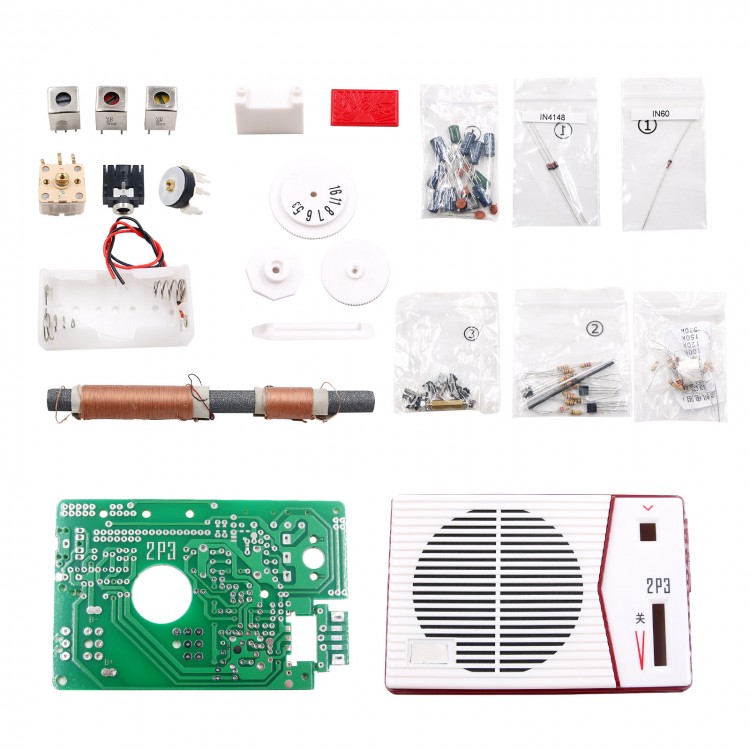

-1 Set of Radio DIY Kit
-1 x Instruction Manual

Note：The product is a set of DIY kit and not assembled.
