TENEALAY USB Digital Interface OTG Sound Card Digital Audio Interface USB to COAX OPT IIS for Amanero

TENEALAY USB Digital Interface OTG Sound Card Digital Audio Interface USB to COAX OPT IIS for Amanero

Introduction:
- Size (W*L*H): 108MM*124MM*30MM
- Net weight: 220g
- Input & output interface: 1 USB input port; 1 coaxial output port, 1 optical fiber output port, 1 HDMI IIS/I2S output port, 1 RJ45 IIS TTL port
- Supported coaxial (COAX) output: PCM: 44KHZ-192KHZ 16BIT-32BIT signal sampling frequency
- Supported optical fiber (OPT) output: PCM: 44KHZ-192KHZ 16BIT-32BIT signal sampling frequency
- Supported HDMII IS/I2S output: PCM: 44KHZ-384KHZ 16BIT-32BIT signal sampling frequency, support DSD: DSD 64-DSD512
- Supported RJ45TTLIIS/I2S output: PCM: 44KHZ-384KHZ 16BIT-32BIT signal sampling frequency, support DSD: DSD64-DSD512

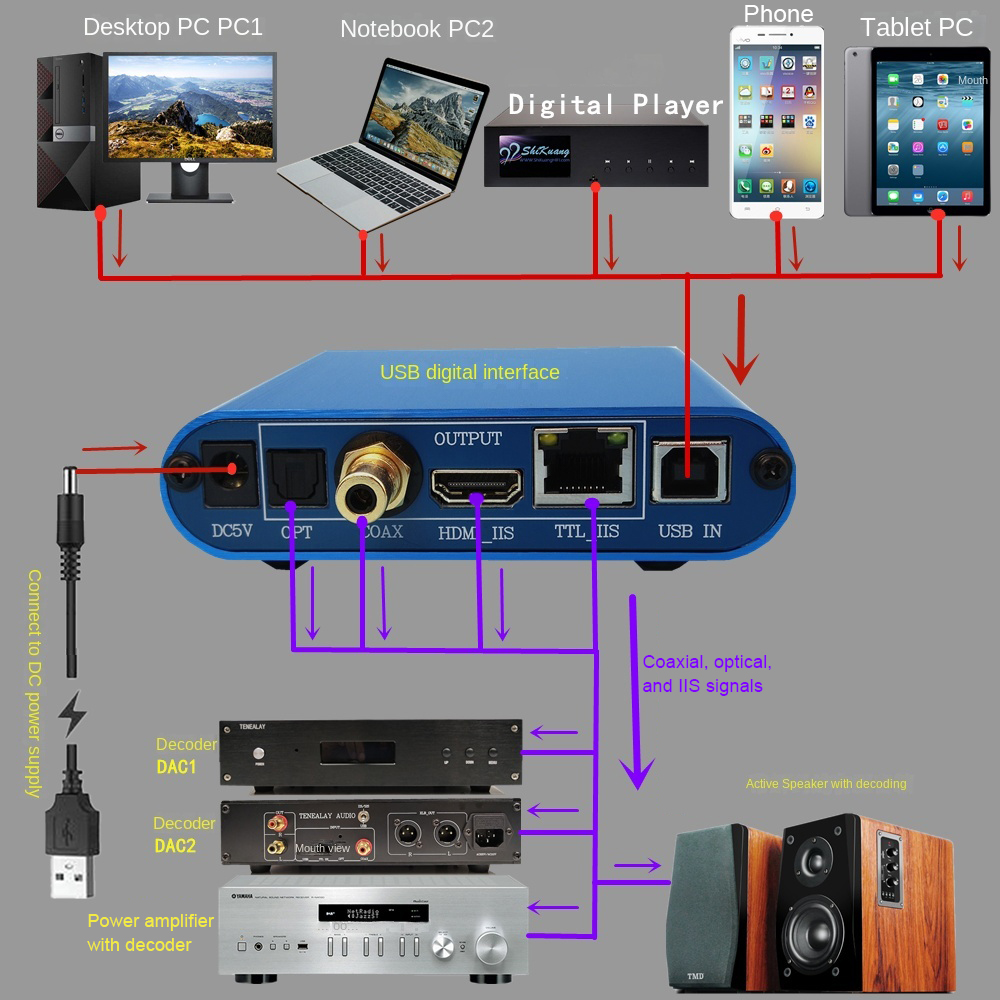

- Supported devices: various desktop computers, notebook computers, some tablet computers, smartphones that support OTG, USB ports of Jueling digital players and other devices. For Windows XP, Windows 7, Windows 8, Windows 10 and Windows 11 systems; driver-free for smart devices with OGT function, such as for MAC_OS X, Linux, Android above 5; for iPhone cellphones
- Support mobile phone VIPER HIFI player USB exclusive mode

Download Product Driver:
- Link for http://amanero.com/drivers.htm

Package Included:
- 1 x USB Digital Interface

Note:
- Other items pictured are not included, for demonstration purposes only. Thank you for your understanding!

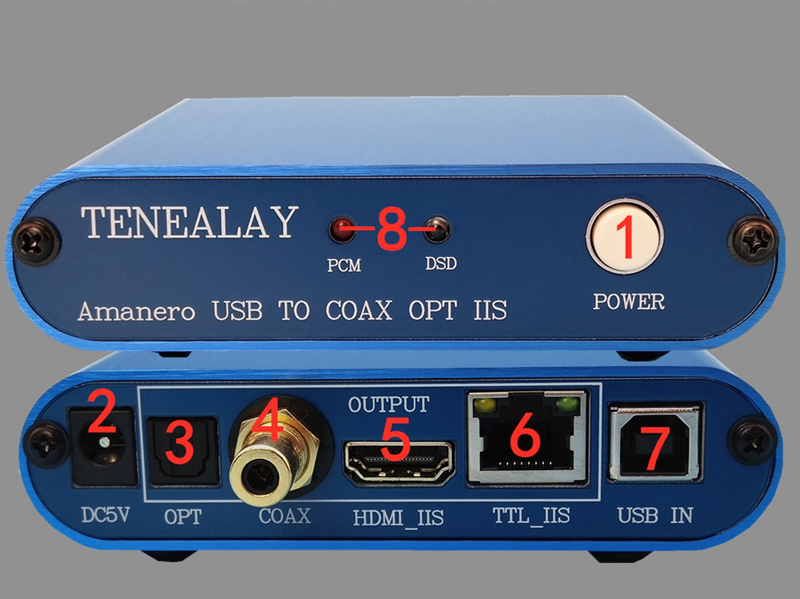

1: Switch (Press the switch to turn on; turn off when it pops up)
2: DC power supply input port (DC5-12V)
3: Optical output port
4: Coaxial output port

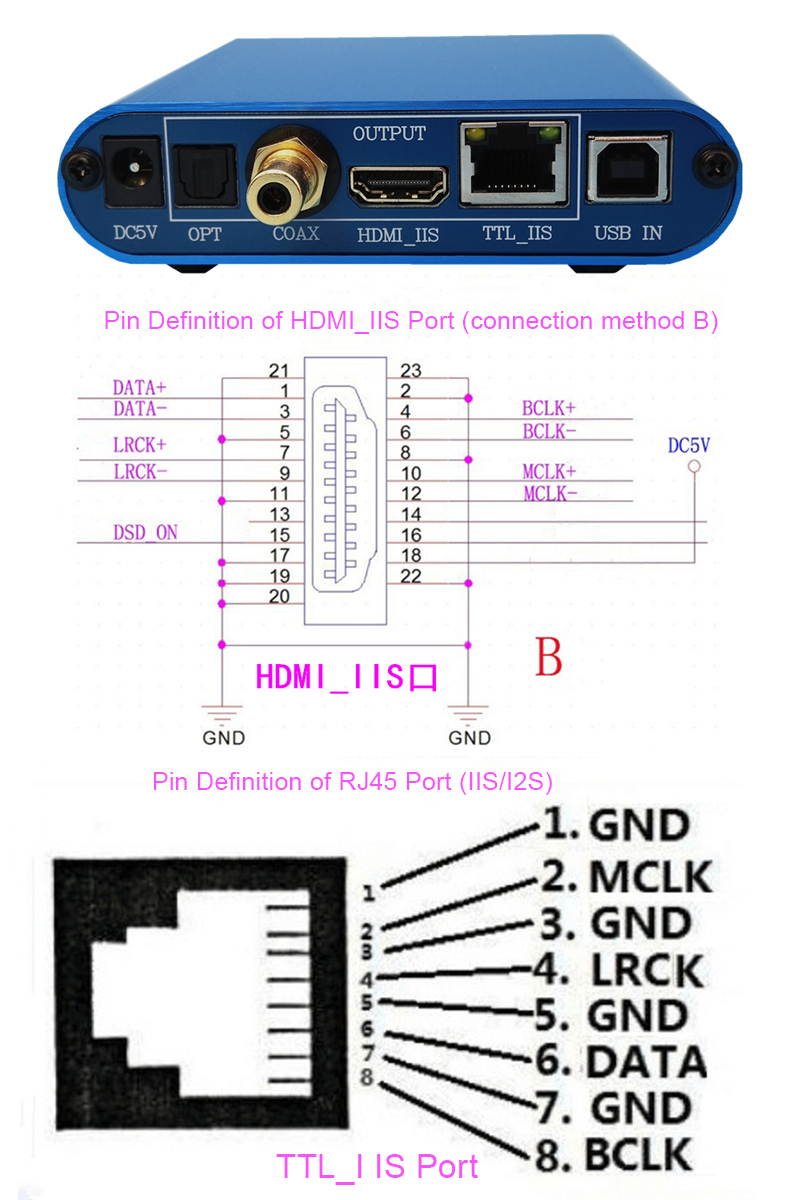

5: HDMI_IIS output port
6: TTL (RJ45) _I IS output port
7: USB input port
8: PCM/DSD format indicator
