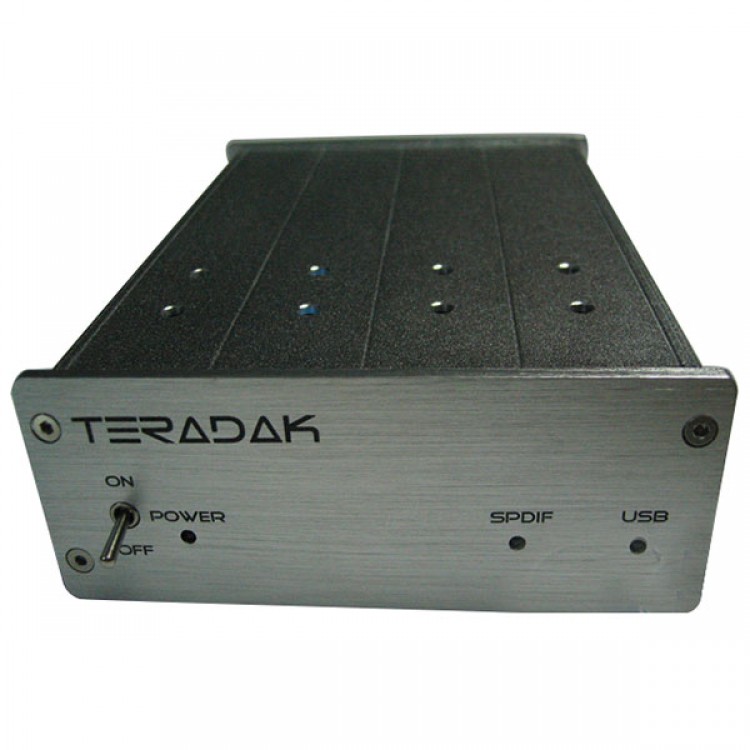

TeraDak V2.6D DAC TDA1543 NOS DAC 26D 96k/24bit USB DAC Audio Decoder

TeraDak V2.6D DAC TDA1543 NOS DAC 26D 96k/24bit USB DAC Audio Decoder

Product Description:
- USB,COAXIAL,OPTICAL three inputs,2RCA
- can be used as a USB sound card,small size,convenient for PC-HIFI users
- decoding using classical philips TDA1543 chip, 8 slices of parallel design, exquisite moist voice.
- digital receiver chips using WM8805 (analog and digital independent voltage)
- the TE7022 USB receiver chips, support 24 Bit, 96 KHz, directly receive digital audio signal flow skip the format conversion.
- USB using high precision of 12.000 Mhz 1 PPM TCXO (rubbing crystals) as the mian lock of TE7022;     Reclock circuit using  the Toshiba TC74VHC74 high-speed chip.
- support 24 Bit, 96 KHz.
- compatible with win2000, XP, vista, win7 system.
- using  panasonic audio's   filter capacitor which is special used for FM top series.
- ac input with EMI filter circuit.
- with built-in heat sink,whole aluminum shell,panel.
- gold-plated 2 RCA, coaxial terminals and low contact resistance guarantee  stable signal transmission.

Technical Specifications:
- SNR: 100dB above
- Output level: 2V(RMS)
- Rate, sampling frequency: 44.1KHz,48KHz,96KHz
- USB, coaxial, optical fiber input: 24Bit, 96KHz
- Siae: 165*122*45mm
- Weight: 839g

Note:
- This machines radiates comparably high working temperature, please do not cover the top
- Default 220V, if you need 110V, please leave a message for us
