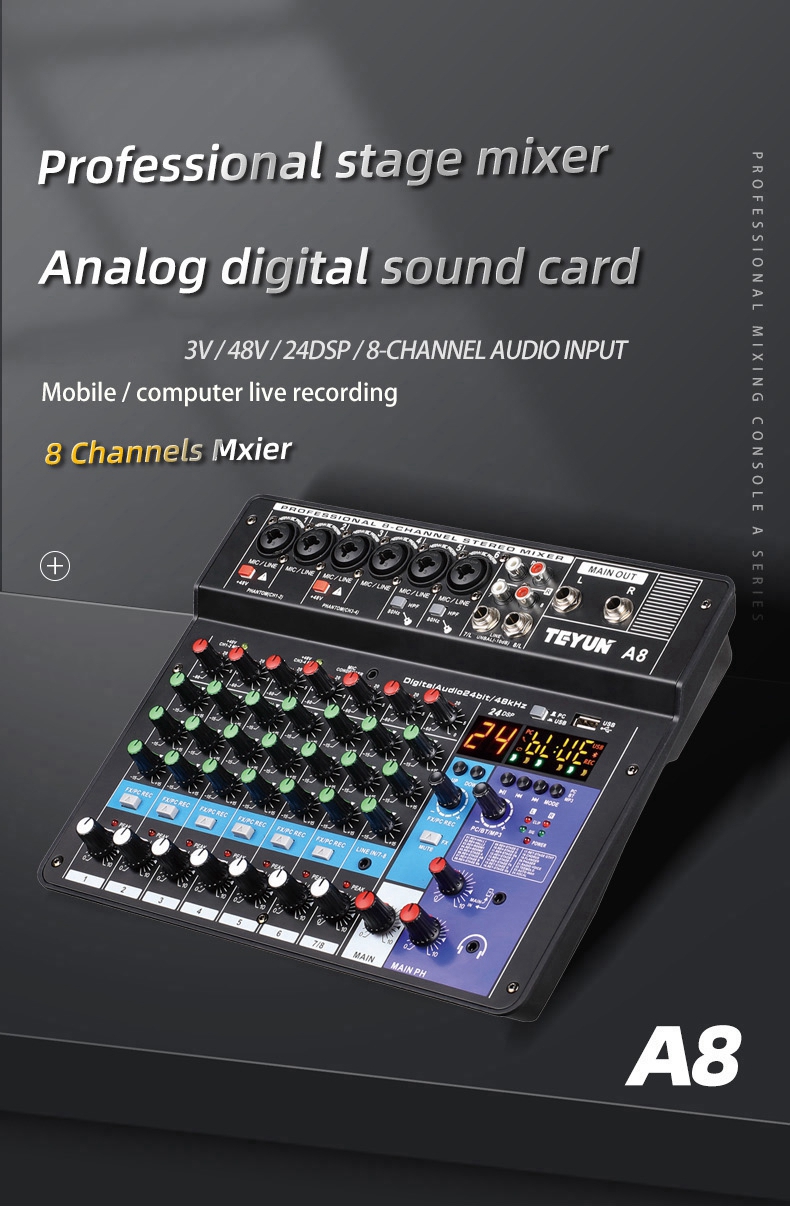

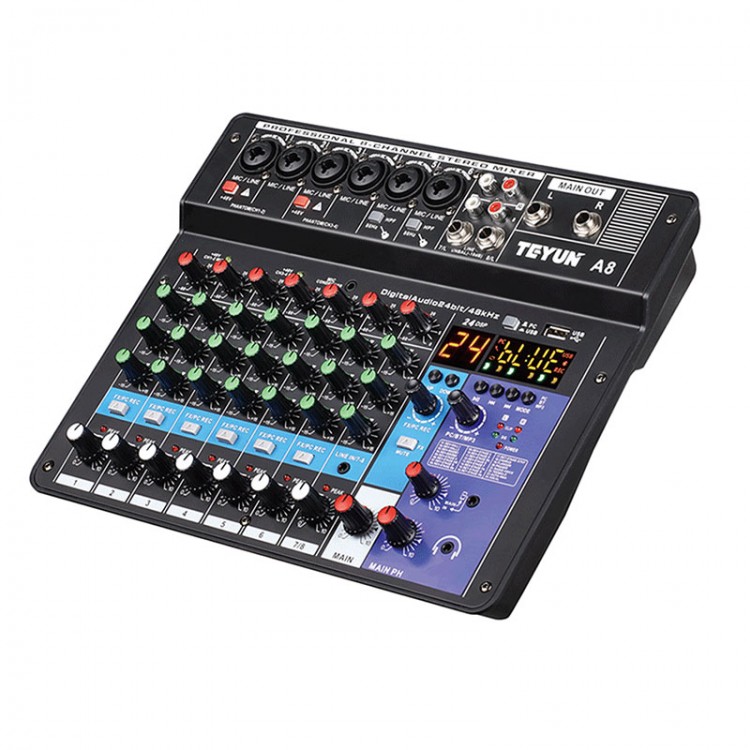

TEYUN A8 Audio Mixer Professional 8-Channel Mixing Console and Monitor Paths Plus Effects Processor

TEYUN A8 Audio Mixer Professional 8-Channel Mixing Console and Monitor Paths Plus Effects Processor

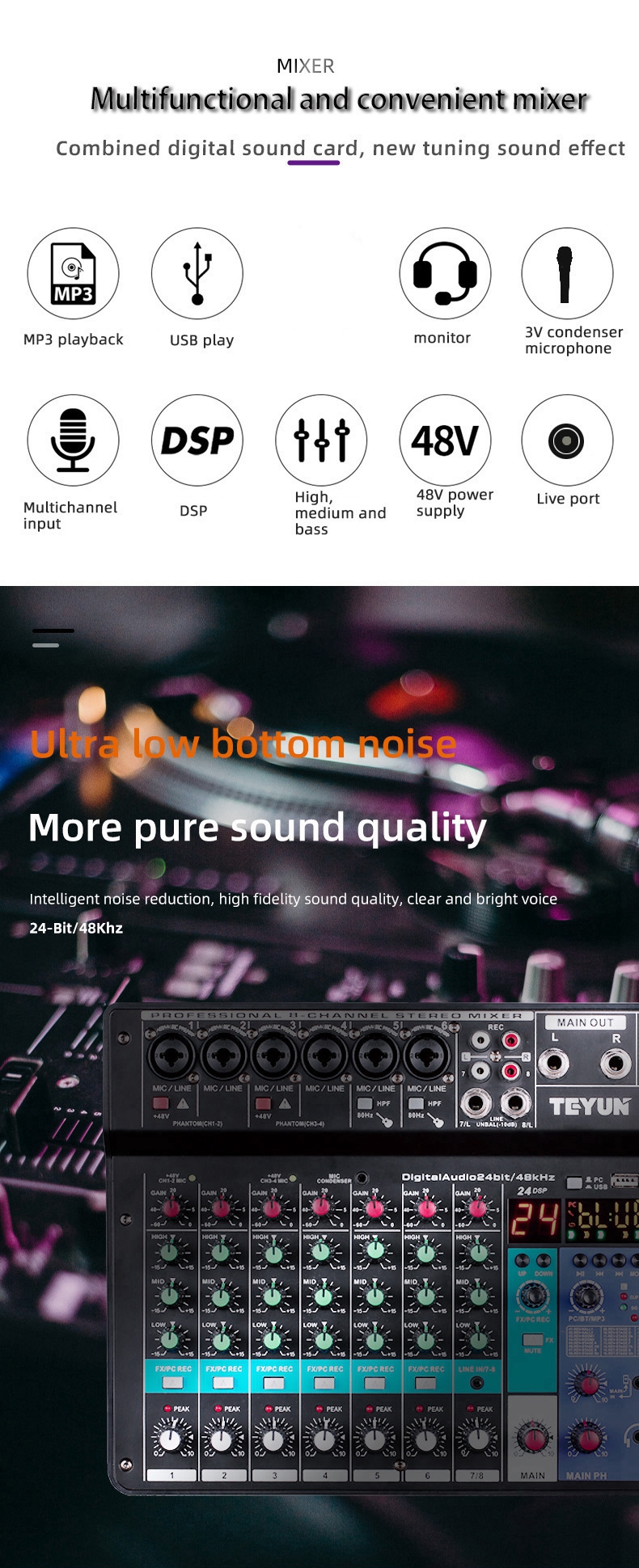

Functions:
- MP3 playback
- USB play
- Built-in Bluetooth
- Monitor
- 3V condenser microphone
- Multichannel input
- DSP
- High, medium and bass
- 48V power supply
- Live port

Features:
- The analog mixer is used in combination with the digital sound card.
- 8-channel mixer.
- 6 microphone/2-wire inputs.
- Sampling rate: 24 bits/48 khz
- High resolution, dual track recording and playback.
- Built in high-speed ARM chip, with unique processing technology, such as low noise, sound change, pitch change, reverberation, delay, electroacoustic effect, etc.

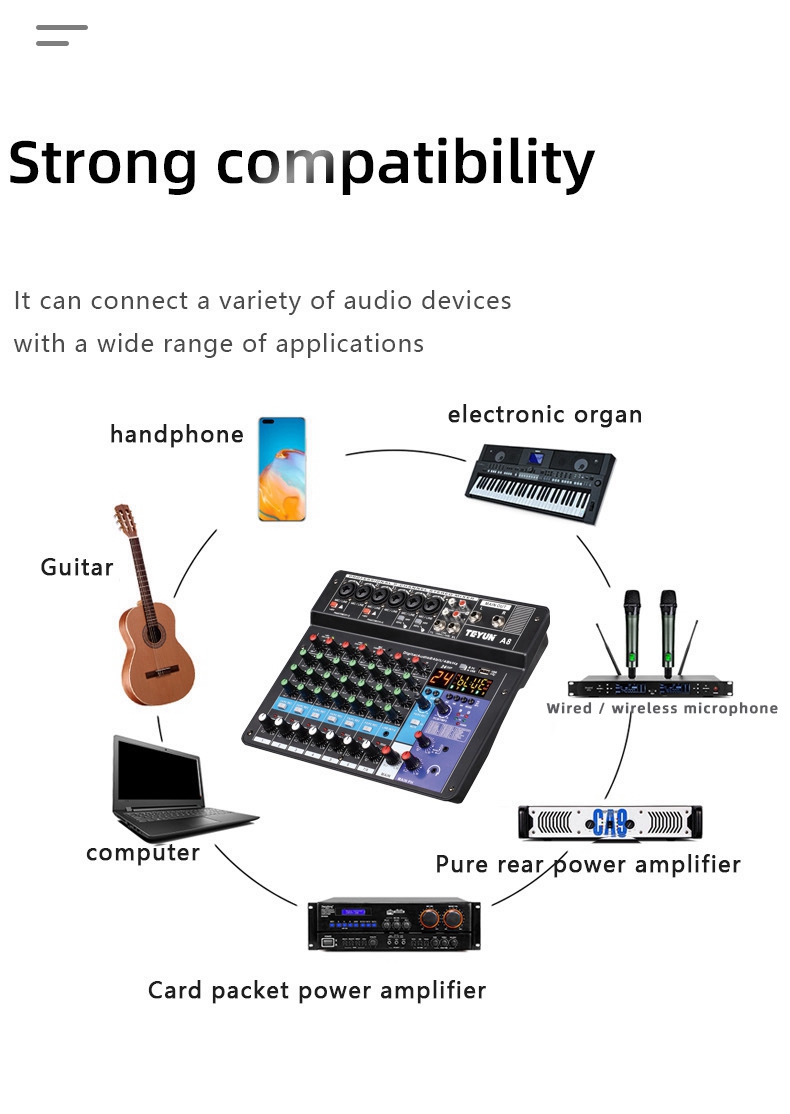

- Multiple input/output combination interfaces and multiple recording methods are available.
- Highly available power input mode and switch mode 48V phantom power supply.
- High quality equalizer and high pass filter.
- Multiple record groups are optional, and dual monitor mode is optional.

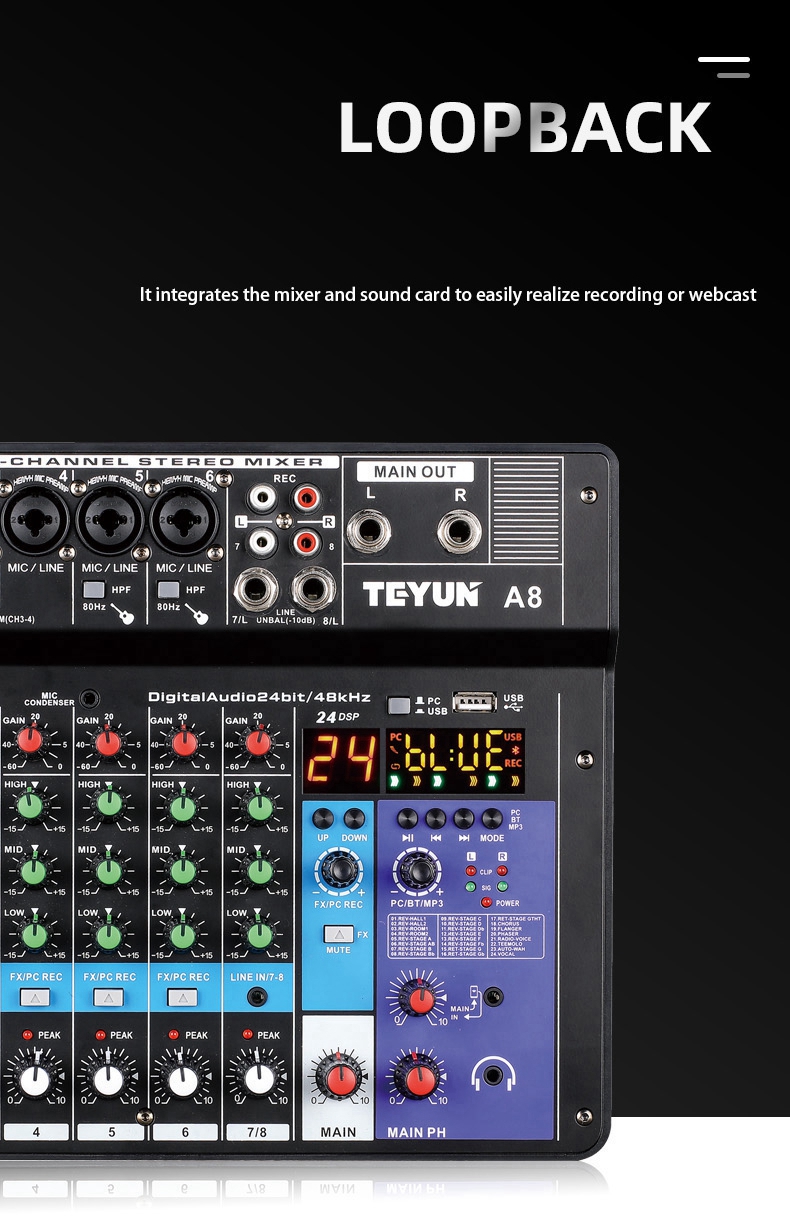

- The flexible LOOPBACK function is very suitable for recording and webcasting.

Specification:
- Frequency response: input STEREO OUT 0.5dB/-1.0dB (20hz~20khz), test the rated output level at 1khz; GAIN knob: middle
- Distortion: 0.02% at+10dBu (20hz~20khz)
- Residual noise: - 85dBu
- channel crosstalk: (1khz) - 83dB

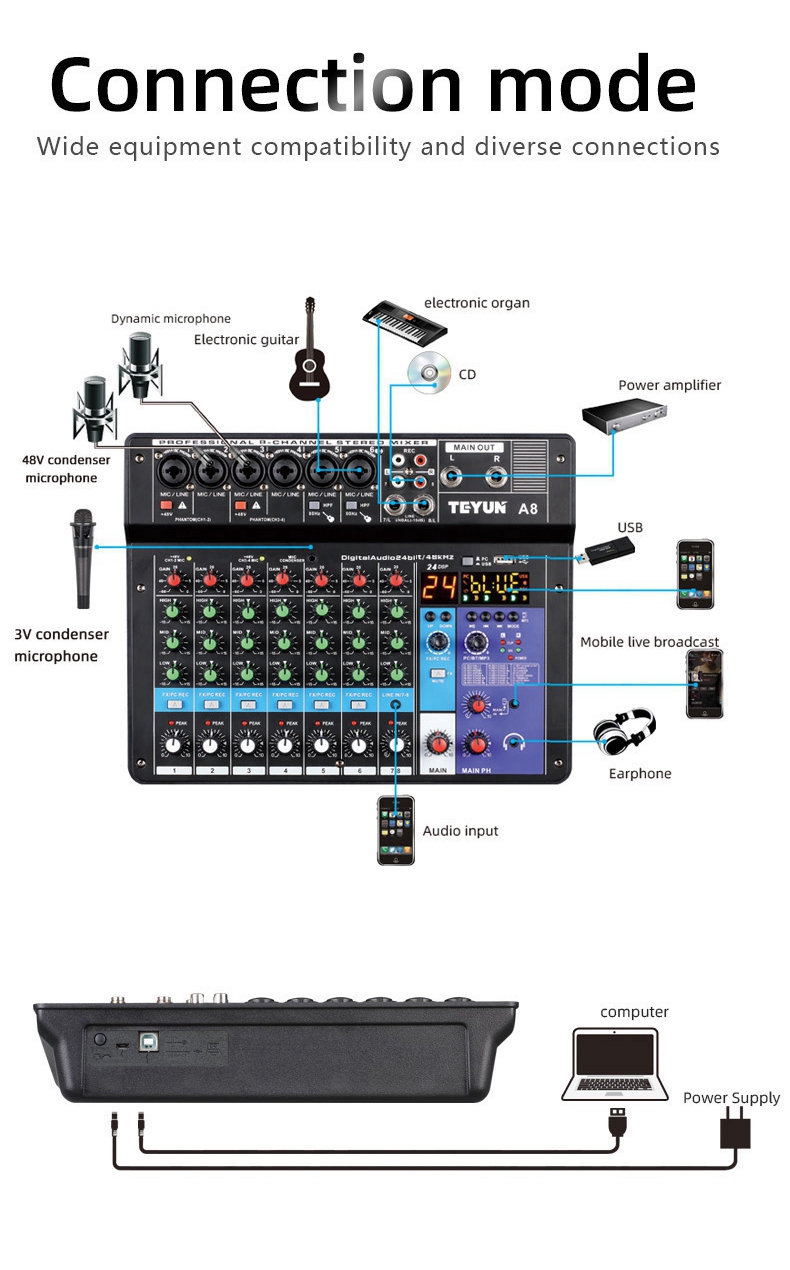

- Input: MIC x 6/2RCA, PC, 2LINE, USB, BT, 3.5MINI
- Output: STEREO OUT: 2, PHONES: 3.5MIN Headset output: 1, 3.5MN mobile phone live broadcast output.
- Bus: stereo: 1
- Input channel function:
HPF (mono): 80hz, 12dB/Octave
EQ high gain: +15dB/- 15dB,
Treble 10kHz, mid-range 2.5KHz, bass 100Hz
Peak LED: When the signal after EQ reaches 3dB below the distortion, the LED lights up.
- Level indicates MAIN STREO LEVEL knob, and the green light is on when the signal after MAIN LEVEL. When it reaches 0dB, when the signal reaches 0dB below the distortion, the red light will be clipped, and the LED will light up.
- Input/output level: MIC (- 60dB) LINE ONPUT (- 40dB)

Package Included:
- 1 x A8 Audio Mixer
- 1 x USB
- 1 x Power adaptor
- 1 x Manual
