Description:
The TF Mini LiDAR is an unidirectional laser range finder based upon time-of-flight (ToF) technology. It consists of special optical and electronic devices, which integrates adaptive algorithm for indoor and outdoor application environment. It features tiny body and high performance in distance measurement.

The laser sensor can be used as a distance-measuring tool to detect the distance from it to obstacles. It can also be used as an eye of a robot, as it provides distance information for robotic safe avoidance and route selection. It supports for system automation in a variety of machine control scenarios. Because of its small size, light weight and low power consumption. It is also suitable for altitude hold quad-copters and terrain following.

TF Mini's maximum detection distance is 12 meters. TF Mini also supports 100Hz sampling resolution, within 6 meters, its accuracy is within 4cm, 6~12 meters, accuracy within 6 cm. FOV of 2.3 degree. Its anti-interference is strong, and can work in outdoor light. It weights only 4.7g.

Adopting UART (TTL) communication interface, TF Mini LiDAR can supplied by standard 5V, and its average power consumption is 0.6w. It is suitable for a variety of Arduino controllers. With our Gravity IO Expansion Shield, it be be plugged in directly without additional wiring for your Arduino.

It can be easily integrated into the system.

Features:
- Unidirectional laser range finder
- Maximum Detection Range: 12m
- Excellent Performance: high-precision distance measurement
- Support 100Hz sampling resolution, responsive
- Small size and low power consumption

Applications:
- Machine control and safety measurement systems
- Laser range finder robot
- Altitude hold quad-copters and terrain following

Specifications:
- Voltage Range: 4.5V-6V
- Communications Interface: UART (TTL)
- Working Range: 0.3m-12m (indoor)
- The Maximum Range of Reflectivity 10%: 5m
- Average Power: 0.6W
- Acceptance Angle: 2.3°
- Minimum Resolution: 5mm
- Refresh Frequency: 100Hz
- Ranging Accuracy: 1% (<6m), 2% (6 to 12m)
- Ranging Unit: mm
- Band: 850nm
- Size: 1.65 x 0.59 x 0.63in / 42 x 15 x 16mm
- Operating Temperature: 0℃ to 60℃
- Storage Temperature: -20℃ to 75℃
- Anti-light Environment: 70Klux
- Weight: 4.7g

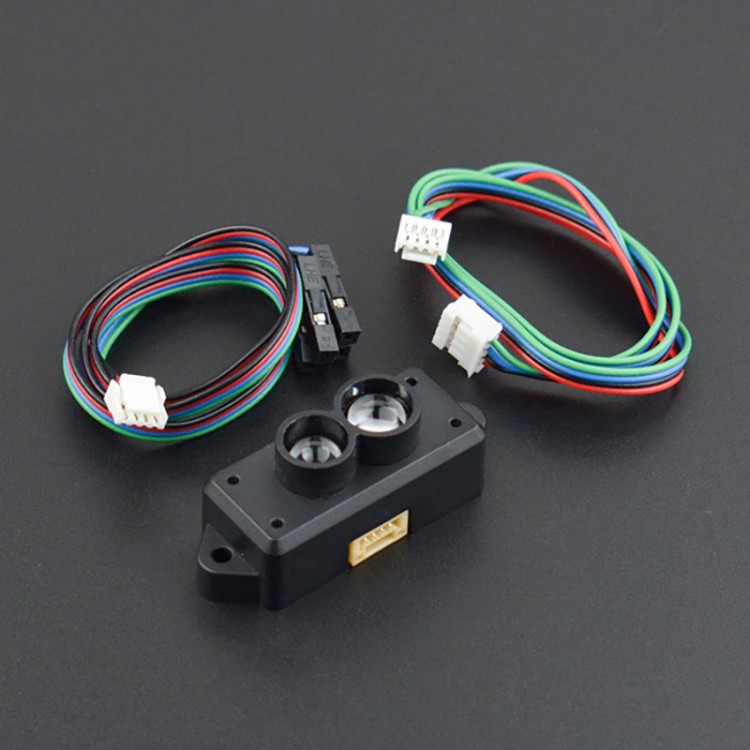

Package Included:
- 1 x TF Mini LiDAR(12m)
- 1 x TF Mini LiDAR(12m) A Wire
- 1 x TF Mini LiDAR(12m) B Wire

Note:
- The product may be invalid when probing objects with high reflectivity, such as mirrors and smooth tiles.
- When there are transparent objects, such as glass and water, between the product and the tested object, it may become invalid.
- Do not touch the circuit board with your bare hands. If necessary, please wear an electrostatic wristband or antistatic gloves.
