Thermoelectric Peltier Refrigeration Cooling System Semiconductor Cooler Conduction Module + Radiator + Fan + TEC1-12706 DIY Kit
Description:
With the wide applications of semiconductor cooling, more and more DIY enthusiasts are interested in it. It's a question that how to make refrigerating capacity to a more great extent in water cooling applications. This DIY kit could be just to your taste to solve this problem.
Features:
- Adopt TEC1-12706 semiconductor chilling plate, good quality for use.
- Complete sealed structure, isolating the moisture in the air.
- Higher reliability than others.
- Include TEC1-12706 semiconductor cooler and other accessories, easy to install.
- Great DIY kit for electronic enthusiasts in semiconductor cooling applications.
Note:
- The conduction cool module can frost when the temperature is under -25°C.
- TEC1-12706: one side with words is the refrigeration side, the other side is heat dissipation side.
- Must install heat sink or water-cooled radiator on the heat dissipation side; otherwise will burn the Peltier.
- The DC power is not included in this kit, please prepare it by yourself.
Specifications:
- Semiconductor Chilling Plate: TEC1-12706
- Size: 40 * 40 * 3.75mm
- Internal Resistance: 2.1~2.4Ω
- Max. Temperature Difference: 67°C Above
- Rated Voltage: 12V(Vmax. 15V, Starting Current 5.8A)
- Working Current: Imax.=4~4.6A(Rated 12V)
- Refrigeration Power: Max. 50~60W
- Working Environment: -55~83°C
- Sealing Process: Standard 704 silicon rubber sealing all sides
- Fan: DC 12V 0.15A
- Conduction Module Size: 60 * 45 * 21mm
- Radiator Size: 116 * 100 * 23mm
- Fan Size: 90 * 90 * 25mm

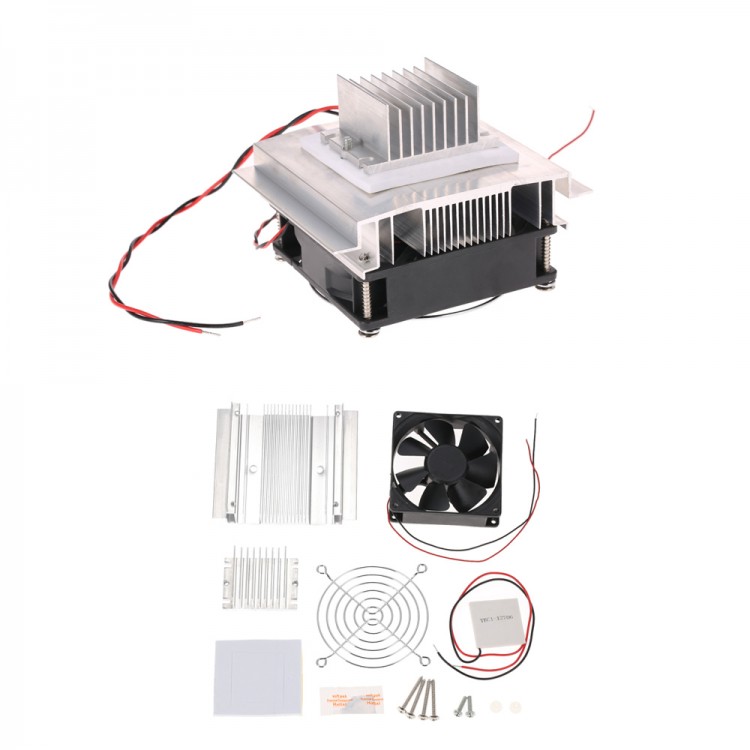

Package List:
- 1 * TEC1-12706
- 1 * Fan
- 1 * Radiator
- 1 * Outer Cover for Fan
- 1 * Conduction Module
- 1 * Thermal Grease
- 1 * Thermal Insulation Gasket
- 1 * Pack of Screws
