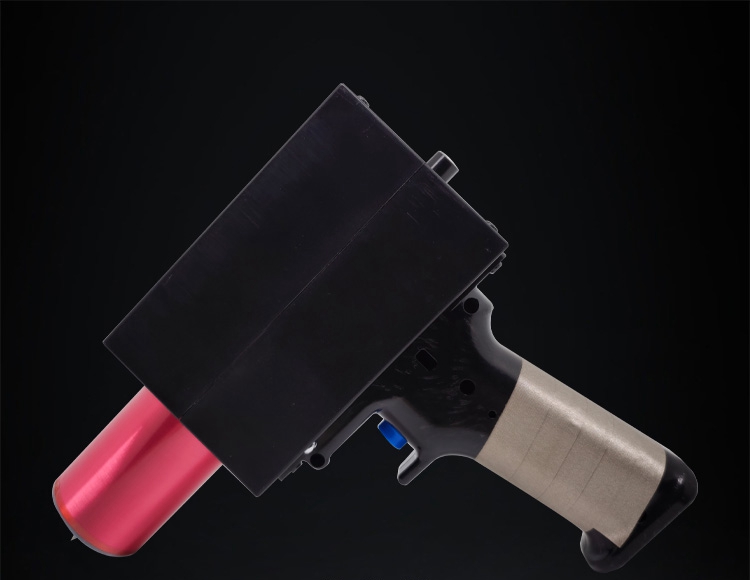

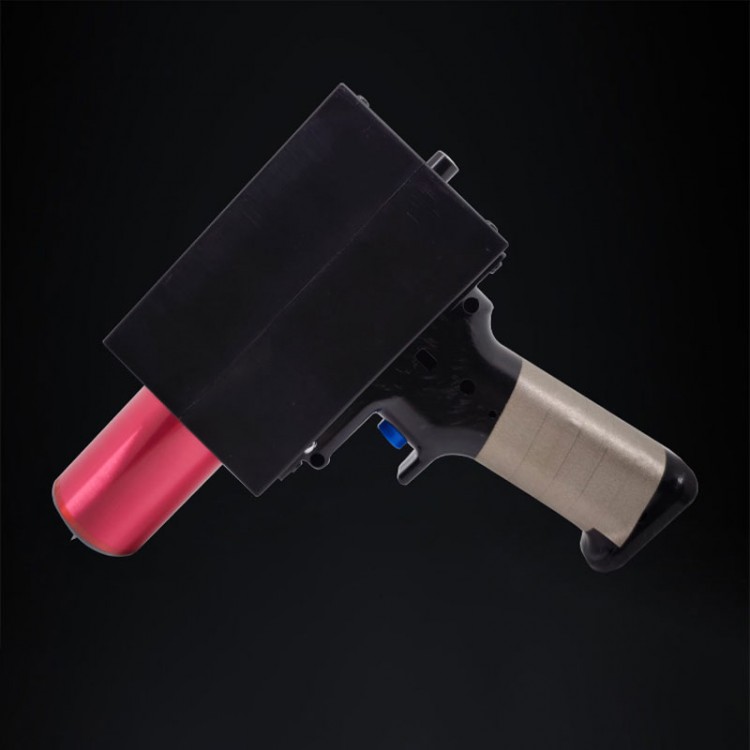

Third Generation Trial Version Tesla Coil Gun Handheld Magnetic Energy Generator with Power Adapter

Third Generation Trial Version Tesla Coil Gun Handheld Magnetic Energy Generator with Power Adapter

Difference:
- The third generation trial version (deep grey) Tesla coil gun adopts a fully black injection molded shell, paired with a 2000mAh lithium battery, which can generate approximately 7000 flashes of lightning. This model does not have an automatic triggering function. (single trigger)
- The third generation Plus enhanced version (transparent) Tesla coil gun is equipped with a 3150mAh lithium battery for Panasonic, which can generate approximately 10000 flashes of lightning. (automatic trigger + single trigger)

Description:
- The handheld Tesla coil is a Tesla coil powered by battery and DC voltage converter. It is portable and mobile, no longer limited by the disadvantages of traditional switching power supply, which can only be used in fixed occasions.
- After the changes of the previous two generations, the third generation official version has undergone varying degrees of optimization and adjustment in the selection of components and careful debugging of parameters, as well as in the use of materials for the exterior shell. Especially in this generation of version, gold-plated functional panels and customized handles have been used at all costs, resulting in a fundamental improvement in appearance and user experience.

Technical parameter:
- Power supply voltage: 10.5 - 12.6V
- Power supply current: 0.5 - 6A
- Standby current: 0.15mA
- Battery capacity: 2000mAh
- Charging time: 1 - 3 hours
- Power: 6W - 80w
- Resonant frequency: 1.2MHz - 1.4MHz
- Electric arc length: 3 - 12cm linear and adjustable
- Electric field intensity: 1m/400V
- Magnetic field intensity: 1m/70uT
- Noise: 1m/91dB
- Net weight: 550g ±50g (included the coil)
- Size: 200 x 10 x 175mm (included the coil)
- Power adapter:
  Input: AC100 - 240V 50/60Hz
  Output: DC12.6V 1000mA
- Coil:
  Size: 40 (diameter) x 92 (length)mm
  Resonant frequency: 1.2MHz - 1.4MHz

Note:
- When using automatic triggering and operating in maximum arc mode, after continuous uninterrupted use for more than 5 minutes, the device should be stopped or reduced in power to avoid overheating and damage.
- If the device crashes during startup and use, it should be turned off and restarted, with the coil facing a metal object, or by touching the tip of the coil and then pressing the trigger switch to restore normal use.
- During the initial installation and use of the coil, the user may press the switch without generating an arc, and the indicator light may also turn off. At this time, the user needs to restart the device and place the coil close to metal objects or wooden tabletops to reduce the insulation value between the coil and the air, so that the coil can better excite the arc and resume normal use.
