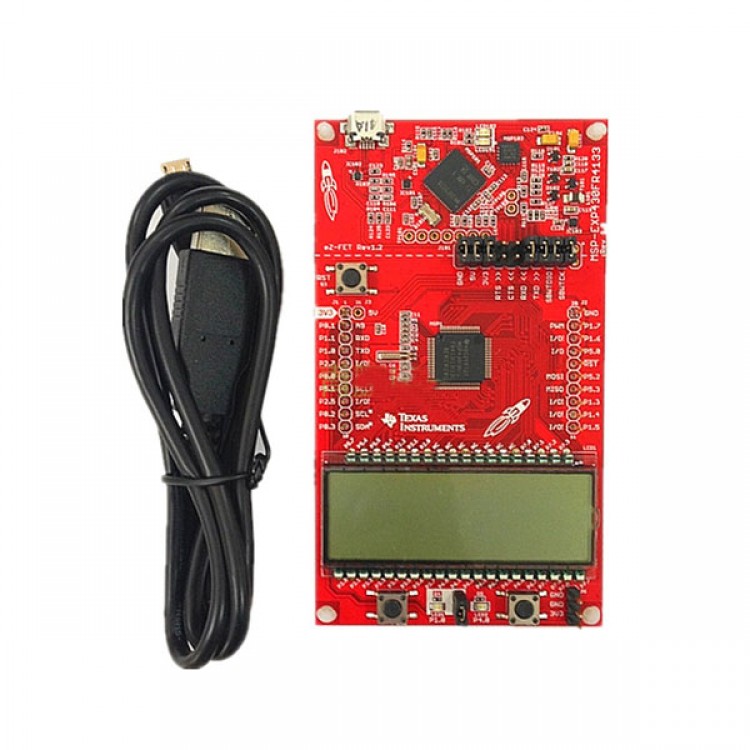

TI Original Spot MSP430FR4133 LaunchPad development board MSP-EXP430FR4133

Availability: In stock, usually dispatched in 1 business day

  • Price:$41.70
  • Price in reward points: 417 Reward Points: 4
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $40.87 $40.03 $38.78 $37.11 Contact US
Quantity:

TI Original Spot MSP430FR4133 LaunchPad development board MSP-EXP430FR4133

Description

MSP-EXP430FR4133 LaunchPad development kit is suitable for MSP430FR4133 microcontroller easy to use evaluation module (EVM). It contains all the resources were needed to develop the ultra-low power MSP430 microcontroller -based (ULP) FRAM 's (MCU) platforms, including on-board emulation for programming , debugging, and power metering . The circuit board has a simple user interface for quick integration of on-board buttons and LED, and the use of flexible software can be configured to show the pin integrated drive liquid crystal display (LCD). MSP430FR4133 devices with embedded FRAM ( Ferroelectric Random Access Memory ) , which is an ultra-low power consumption, high endurance and high write access to the non-volatile memory is known .
20-pin connector BoosterPack plug-in module simplifies the rapid prototyping , support for multiple BoosterPack market . You can quickly add wireless connectivity , graphics, environmental sensing , and other functions . Design your own BoosterPack, or choose from a variety of existing market TI and third-party developers in BoosterPack . MSP-EXP430FR4133 LaunchPad segmented using the on-board display that provides two modes of operation , with out of the box features. The stopwatch timer can run a long time up to 100 hours timer . Stopwatch mode can also be split time , in this case , the display is \"frozen \" while the stopwatch continues to run in the background. The second mode uses an on-chip temperature sensor provides a simple thermometer applications. Temperature is displayed on the LCD screen , can be displayed in degrees Fahrenheit and Celsius . Also provides free software development tools, such as Eclipse-based TI provides Code Composer Studio and IAR Embedded Workbench. When used in conjunction with MSP430FR4133 LaunchPad , both IDE support EnergyTrace technology. About the LaunchPad, BoosterPack and more information available resources support, please visit the TI LaunchPad portal.
Shall comply with TI's standard terms and conditions of the evaluation module .

Property
FRAM-based MSP430 ULP MSP430FR4133 16MCU 16KB FRAM
16-bit RISC architecture that supports up to 8MHz system clock speed of FRAM access speed / 16MHz of
3 timer block
10 -channel 10- bit ADC
8 x 32 segment LCD driver with integrated charge pump and configurable pins
Can be used for ultra-low power debugging EnergyTrace
BoosterPack ecosystem use LaunchPad standard 20-pin
Onboard eZ-FET simulation
Two buttons and two LED, easy user interaction
Segmented LCD

Contains items
1x MSP-EXP430FR4133 LaunchPad Development Kit
1x Micro USB cable
1x Quick Start Guide
