TILEAR USB DAC TPA6120 Headphone Amplifier Dual ES9038Q2M Supporting DSD256 (D6 with Power Adapter)
Features:
1. Using dual ES9038Q2m decoding chips. Each chip is responsible for one channel, with better dynamics and separation
2. Over ten channels of voltage stabilizer circuits. Each channel is independently powered, and sound details are better reflected
3. The Headphone amp adopts TPA6120A2, a high-performance amp chip, which can drive 16-600 ohm headphones. The amp has gain adjustment, and the output gain is adjusted according to the sensitivity of headphones
4. One-key switch between headphone amp and RCA line output. You can switch without plugging or unplugging headphones
5. With signal detection indication
6. USB for Win7/Win8/Win8.1/Win10 and Apple operating system. Support OTG of most mobile phones, up to PCM up to 32BIT 384kHz (for WIN10), and DSD up to DSD256
7. Optical/coaxial support 16/24Bit 44.1/48/88.2/96/176.4/192kHz
8. Chipset SA9227+ES9038Q2M*2+TPA6120A2+Lm4562+NE5532*3+C1237
9. Hifi capacitors
10. Machine power supply requirements: DC12V above 1A
11. The input voltage of applicable adapter: 100-240V for global use
12. Dimensions (LxWxH): 125 x 98 x 33mm/4.9 x 3.9 x 1.3" (dimensions without convex parts)
Attention:
- Please contact customer service for driver and DSD settings.
- The system for Win7 needs to install a driver.

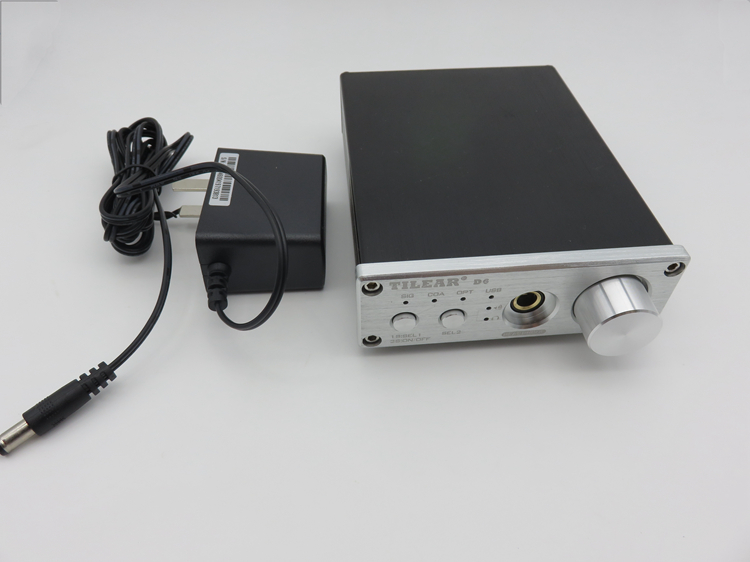

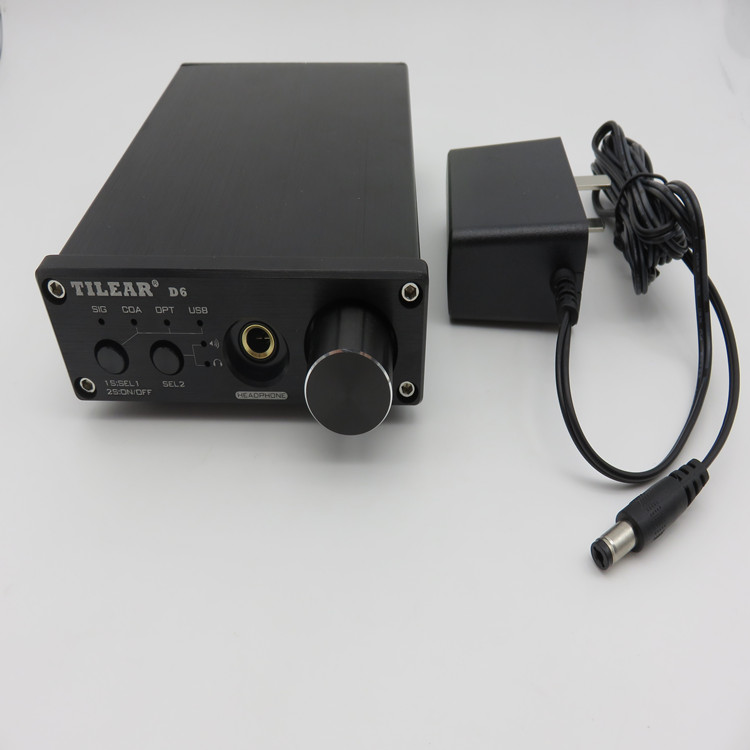

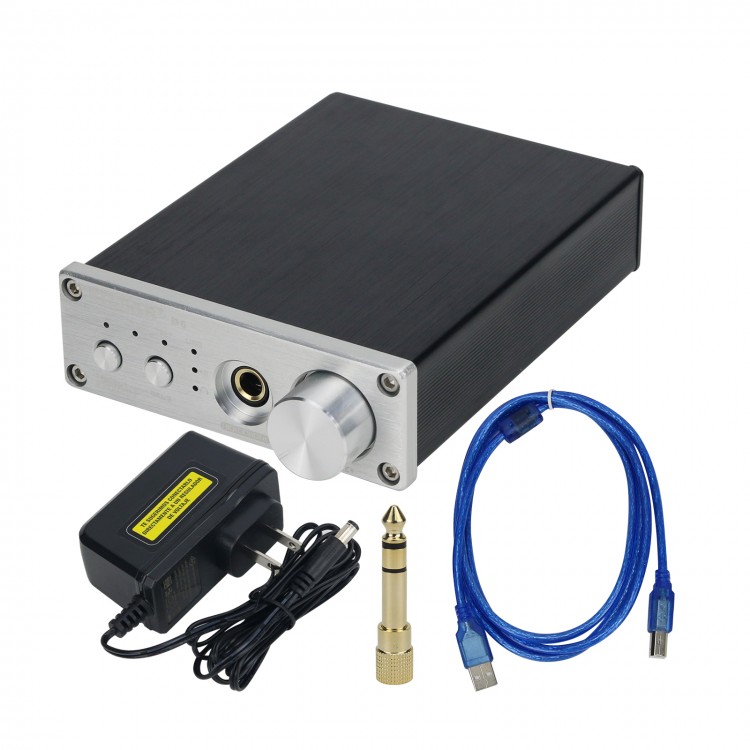

Package Included:
- 1 x DAC Headphone Amp
- 1 x 12V Power Adapter

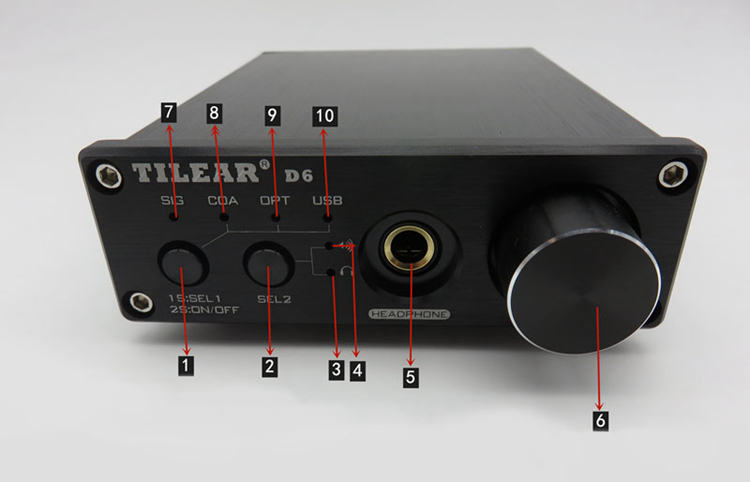

Front Panel:
1. Long press to turn on/off. Short press to select input channels
2. Switch between headphone and RCA output
3. Headphone amp indicator
4. RCA indicator
5. Headphone amp output port
6. Adjust the volume of headphone amp
7. Green when there are signals; red when there is no signal
8. Coaxial indicator
9. Optical indicator
10. USB indicator

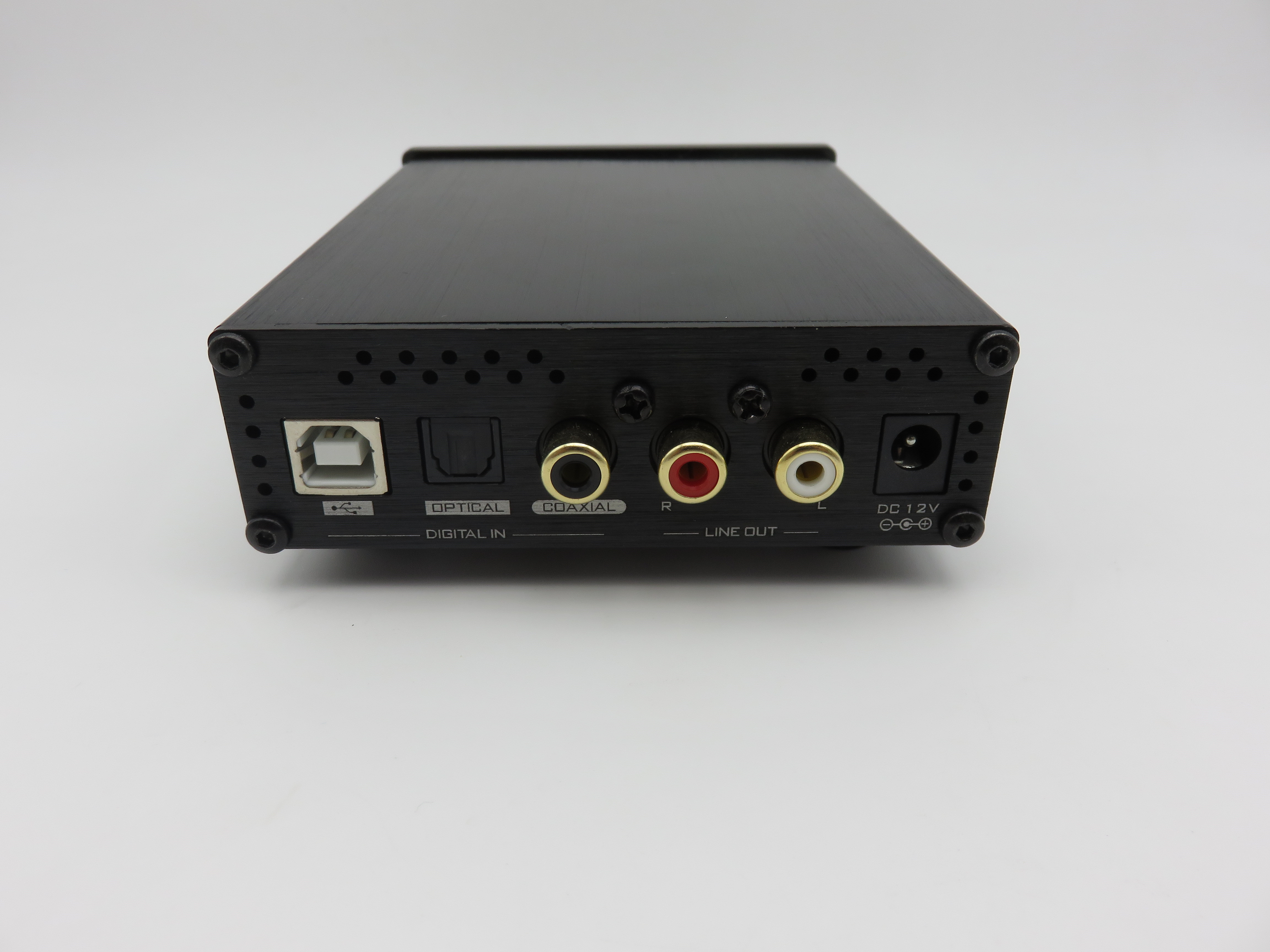

Rear Panel:
* USB input port: Can be connected to laptop/desktop pc/OTG output device
* OPTICAL: Optical input port. Can be connected to TV/PC/DVD and others supporting optical fiber output devices
* COAXIAL: Coaxial input port. Can be connected to TV/PC/DVD and others supporting coaxial output devices
* LINE OUT (R & L): RCA analog output ports. Amplifier/active speakers can be connected
* DC 12V: The voltage should not exceed 12V
