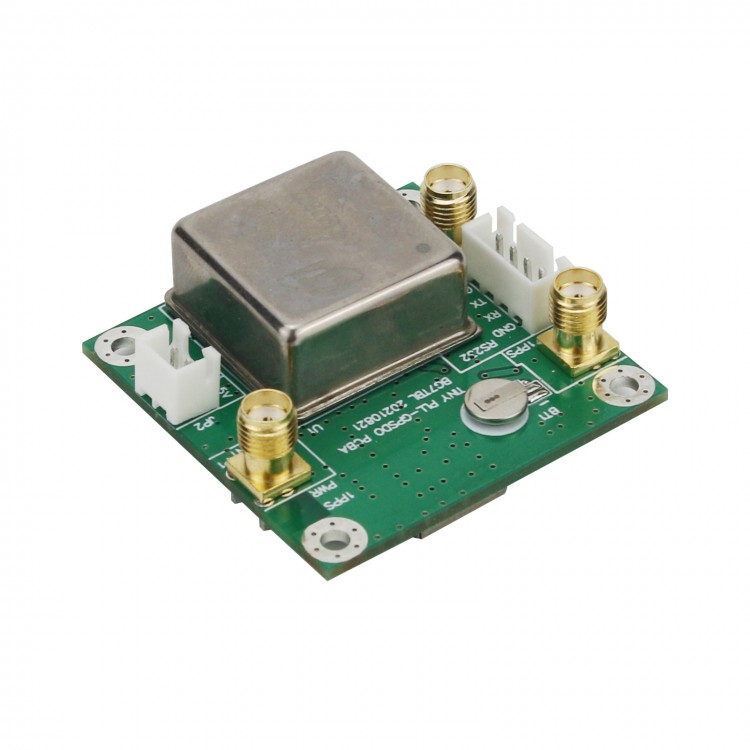

TINY PLL-GPSDO PCBA GPSDO Board GPS Disciplined Oscillator 10M Frequency Reference GNSS 1PPS
Specifications:
- Name: GPSDO board
- Model: TINY PLL-GPSDO PCBA
- Input: GNSS (GPS, BDS, GLONASS, GALI) signal
- Output frequency: 10MHz/sine wave/10DBM
- Timing output: 1PPS/square wave/50% duty cycle/3.3Vpp/30ns rms
- RS232 output: 0-3.3Vpp, 9600BPS, NMEA protocol
- Accuracy after taming: 10M+/-25uHz
- Maximum long-term operating frequency fluctuation: 16mHz (GNSS has been locked)
- Interface: SMA; DC 5.5/2.1
- Power supply: DC4.8-5.3V, start <4W, stable <1.5W
- Antenna output power supply: DC4.5V/0.1A
- Size (LxWxH): 45 x 45 x 18mm/1.8 x 1.8 x 0.7"
- Weight: 100g/0.2 lb
- Accessories: None
Package Included:
- 1 x GPSDO Board
