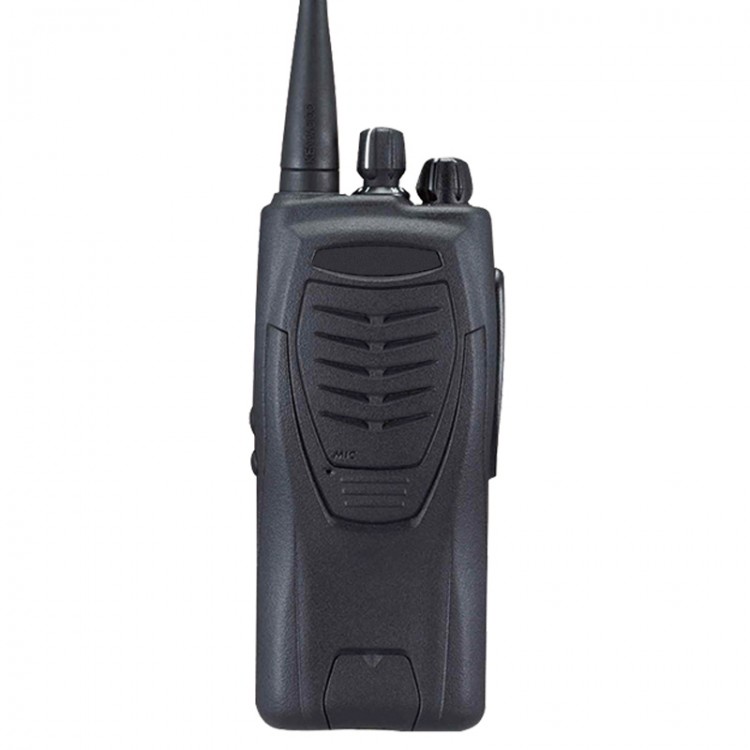

TK-3207GD 5W 400-470MHz UHF DMR Radio Walkie Talkie 5-10KM Handheld Transceiver for KENWOOD

TK-3207GD 5W 400-470MHz UHF DMR Radio Walkie Talkie 5-10KM Handheld Transceiver for KENWOOD

Features:
Compact Design
The TK-3207G's rounded ergonomic contours naturally fit the hand for a comfortable hold, while the non-slip elastomer channel knob with improved torque characteristics ensures positive select operation.

Dual Modes (Digital/Analog Mode)
It has digital and analog operating mode, with selectable settings for each channel. It can be used as a digital walkie-talkie to communicate with DMR digital walkie-talkies in pass-through mode; it can also be used as an analog walkie-talkie to communicate with traditional analog walkie-talkies.

Rich in Functions, Flexible in Use, and Easy to Manage
1. In digital mode, it has the following functions:
- Set a valid local identity code
- Voice services support group calls, all calls, and individual calls
- Digital services support the sending of prefabricated short messages
- Encryption function
- Remote telemetry
- Remote/Resurrection
- Emergency alarm
- Digital mode supports DMR pass-through mode (supports continuous transmission mode)

2. In simulation mode, it has the following functions:
- CTCSS/DCS encoding/decoding
- DTMF encoding

Voice Prompt
There are voice prompts for operations such as switching channels, which effectively reduces the transmission probability of misoperation.

Push-to-Talk (PTT)
It can realize shortcut operation, one-key call and combined function operation.

Built-in Voice-Activated Emission (VOX)
Voice-activated transmission can be achieved by using ordinary headphones, freeing the user's hands and improving efficiency.

Other Functions
- Scan/Dual priority scan function
- Digital channel/analog channel automatic scan
- Squelch settings
- High/low power switching
- Power saving
- Low battery voltage alarm
- Time to launch (TOT)
- Busy channel lock function

Specifications:
General:
- Frequency: 400-470MHz
- Number of channels: 32
- Channel Spacing (Analog): 12.5kHz/25kHz
- Power supply voltage: 7.4VDC±20%
- Operating temperature range: -30℃ to +60℃
- Dust and waterproof rating: IP54
- Dimensions: 54 x 122 x 33mm/2.1 x 4.8 x 1.3" (WxHxT)
- Weight of body: 106G/0.2LB

Receiver:
- Digital Receive Sensitivity: (5% BER): 0.2μV
- Frequency Stability: ±2.5ppm
- Adjacent channel selectivity 12.5kHz: 60dB
- Intermodulation: 55dB
- Spurious Response Suppression: 70dB
- Co-channel rejection 12.5kHz: 12dB
- Conducted Spurious Radiation: -57dBm (<1GHz); -47dBm (>1GHz)
- Blocking: 84dB
- Rated audio power: 1W/16Ω (internal speaker); 500mW/8Ω (external speaker)

Transmitter:
- Transmit power: ≤ 5W
- Digital modulation method: 4FSK
- Modulation Limit (Analog 12.5kHz): 2.5kHz
- FM noise (analog 12.5kHz): -40dB
- Emission spurs: -36dB (≤ 1GHz), -30dB (>1GHz)
- Adjacent channel power 12.5kHz: -60dB
- Modulation Characteristics (Analog): +1dB and -3dB
- Digital transmit bit error rate: ≤5%
- Radio type (digital modulation): 7K60FXD and 7K60FXE

Attention:
- The above data are typical values.
- Analog is tested according to TIA603; digital is tested according to EN.
- Firmware and software upgrade details and timing are not fixed without prior notice.
- Due to the continuous development of technology, the above data may be changed without prior notice. Thank you!

Package Included:
- 1 x Walkie Talkie Body
- 1 x Battery
- 1 x Power Adapter
- 1 x Charger Dock
- 1 x Antenna
- 1 x Belt Clip
