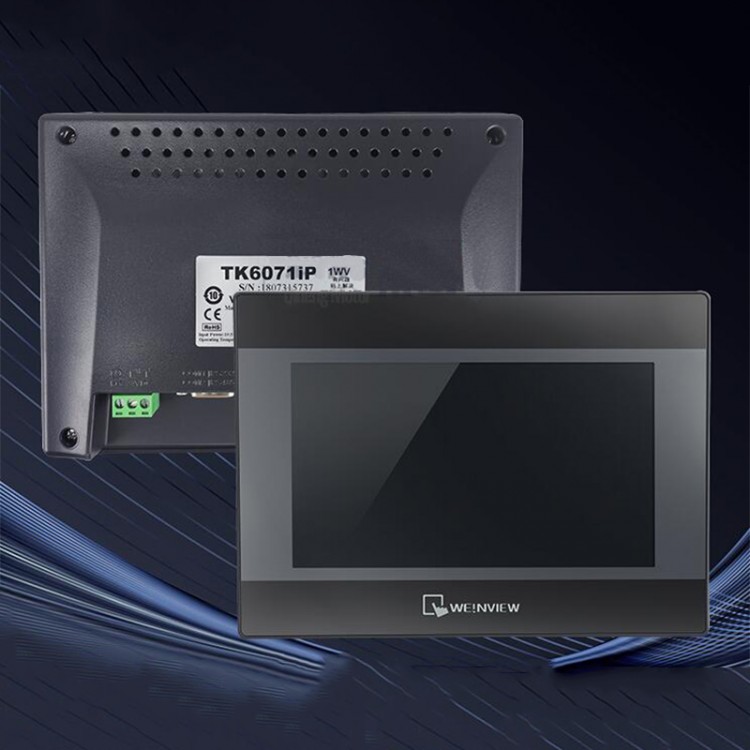

TK6071IP HMI Touch Screen 7" TFT LCD Resolution 800 x 480 For PLC & Controllers

Availability: In stock, usually dispatched in 1 business day

  • Price:$132.36
  • Price in reward points: 1324 Reward Points: 13
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $129.71 $127.07 $123.09 $117.80 Contact US
Quantity:

TK6071IP HMI Touch Screen 7" TFT LCD Resolution 800 x 480 For PLC & Controllers

Advantages:

- High Efficiency: equipped with RISC 528 MHz CPU for ARM, 128 MB FLASH and 128 MB RAM
- High Visual Acuity: 16 million colors, high color display
- Power Supply Isolation Protection: Built in power supply isolation protection, stronger anti-interference ability, more effective to prevent abnormal current from burning the serial port.
- Wide Input Voltage Design: 10.5-28VDC provides high adaptability of input voltage
- Complete Compatibility: For EASYBUILDER PRO engineering software, hole size and connectors (except USB CLIENT) are fully compatible.
- Powerful Connectivity: Supports more than 300 communication drivers and can connect PLCs and controllers from many different manufacturers.

Display:
- Display: 7" TFT LCD
- Resolution: 800 x 480
- Brightness (cd per meters): 350
- Contrast Ratio: 500:1
- Backlight Type: LED
- Backlight Life Time: >30,000 hrs.
- Colors: 16M
- LCD Viewing Angle (T/B/L/R): 70/50/70/70

Touch Panel:
- Type: 4-wire Resistive Type
- Accuracy: Active Area Length(X)±2%, Width(Y)±2%

Memory:
- Flash: 128 MB
- RAM: 128 MB

Processor:
- For ARM RISC 528 MHz

I/O Port:
- SD Card Slot: N/A
- USB Host: N/A
- USB Client: USB 2.0 x 1 (Micro USB)
- Ethernet: N/A
- Serial Port: COM1: RS-232; COM2: RS-485 2W/4W
- RS-485 Dual Isolation: N/A
- CAN Bus: N/A
- HDMI: N/A
- Audio Output: N/A
- Video Input: N/A

RTC:
- Built-in

Power Supply:
- Input Power Supply: 10.5-28 VDC
- Power Supply Isolation: Built-in
- Power Consumption: 550mA@12VDC ; 300mA@24VDC
- Voltage Resistance: 500VAC (1 min.)
- Isolation Resistance: Exceed 50MΩ at 500VDC
- Vibration Endurance: 10 to 25Hz (X, Y, Z direction 2G 30 minutes)

Specifications:
- PCB Coating: None
- Enclosure: Plastic
- Dimensions: 200.4 x 146.5 x 34 mm
- Hole Spacing: 192 x 138 mm
- Weight: Approx. 0.52 kg
- Mount: Panel mount

Operating Environment:
- Protection Level: NEMA4 / IP65 Compliant Front Panel
- Storage Temperature: -20℃ to 60℃ (-4℉ to 140℉)
- Operating Temperature: 0℃ to 50℃ (32℉ to 122℉)
- Relative Humidity: 10% ~ 90% (non-condensing)

Certificate:
- CE marked

Software:
- For EBPro V5.07.01 or later versions

Package Included:
- 1 x Set of Touch Screen
