TKB-610 470MHz-510MHz Development Board RF Lora Wireless Module Enables Low Power Consumption

TKB-610 470MHz-510MHz Development Board RF Lora Wireless Module Enables Low Power Consumption

Description:

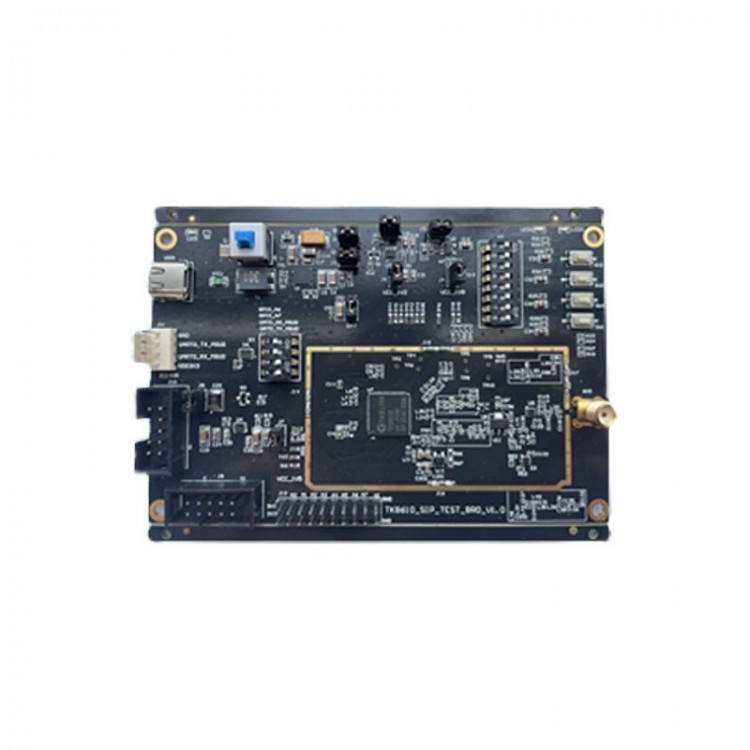

The TKB-610 chip development board is a development kit based on the SoC chip for TurMass. It provides a tool to quickly understand and test the performance of SoC chips for TurMass. It can be used as a transparent transmission module of USB interface, and users can directly control it through the AT command of the serial port, which is convenient for data transmission and reception and performance testing. It is also possible to use the JTAG interface for software development and debugging, and use the IDE development environment and SDK for embedded software evaluation and development, shortening the product development cycle.

Features:
- Send AT commands through serial port tools and quickly complete data transmission and reception
- Transmit power and receiving sensitivity in various modes for TurMass can be quickly tested
- Power supply has jumpers. Thus, it can be connected to an ammeter in series to directly test the power consumption of the chip
- Compilation, downloading and debugging of sample code projects can be realized, used with tools
- There are interfaces and GPIO pins out for sensor access and control of external devices

Specifications:
Wireless parameters:
- Operating frequency band: 470 MHz ~ 510 MHz
- Transmitting power: 17 dBm

Function:
- External interface/power supply: USB Type-C interface
- Firmware update: Support
- Antenna interface: SMA
- RF power adjustment: Support (-32 dBm to 18 dBm)
- Signal indicator light: green, 2pcs, support customization
- Save parameters when it is powered off: Support
- GPIO: 16, pin header
- Debugging interfaces: JTAGx1, UARTx1

Software parameters:
- Configuration tool: host computer setup software supports for Windows
- Software tools development kit: SDK V1.4

Physical parameters:
- Dimensions: 115 mm x 85 mm
- Net weight: 50 g
- Operating temperature: -10°C to +55°C
- Relative humidity: 5%~95%RH
- Device power consumption: less than 1 W

Package Included:
- 1 x Development board
