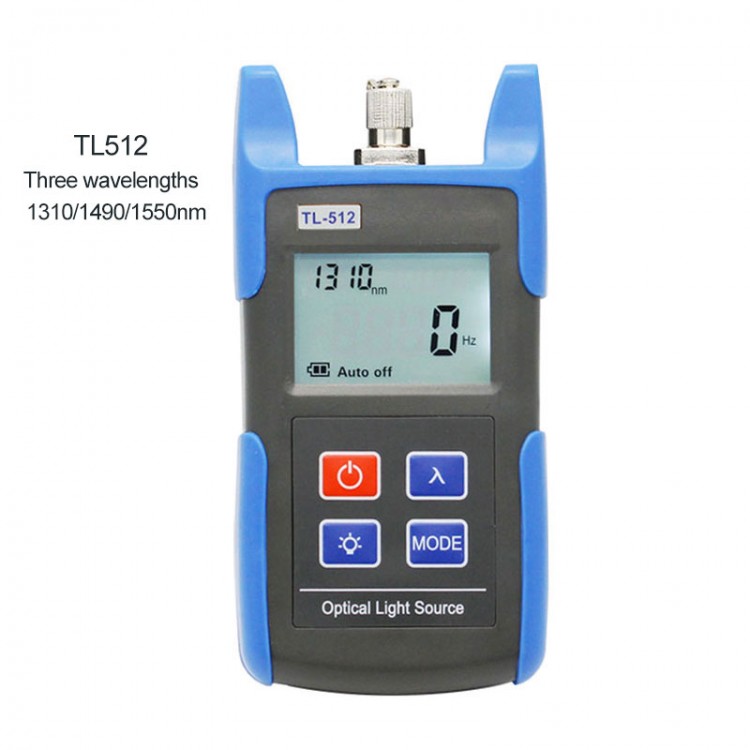

TL512 Handheld Fiber Optical Light Source Tester Three Wavelength 1310/1490/1550nm SC/APC Connector

TL512 Handheld Fiber Optical Light Source Tester Three Wavelength 1310/1490/1550nm SC/APC Connector

Specification:
Model: TL-512
Output wavelength: 1310/1550nm
Output power: >-7dBm
Laser type: LD
Spectral width: 5nm
Short-term stability: 0.01dB@5 minutes
Long-term stability: 0.01dB@24 hours
Connector type: SC/APC
Audio carrier: 0Hz, 270Hz, 1KHz, 2KHz
Display information: selected wavelength, battery power, carrier status, output power, power status
Power automatic shutdown: 10 minutes automatic shutdown
Battery type: Alkaline battery or rechargeable Ni-MH battery type AAA (not included)
Continuous working time: >30 hours
Servo stability circuit: Yes
Operation sound prompt: Yes
Storage temperature: -20~+70℃
Working temperature: -10~+60℃
Relative humidity: <95%
Working altitude: 2500m
Weight: 160g
Size: 130* 63*29mm

Features:
-A variety of different wavelength options to meet the different needs of customers.
-Large LCD display, user-friendly and intuitive operation, small size, easy to use.
-It can provide calibration for optical power meter and optical attenuator.
-Adopt high-stability laser, providing high-stability output power.
-With not only continuous wave output but also 3 kinds of modulation frequency: 270Hz, 1KHz, 2KHz.
-Portable design, equipped with a shockproof cover, which improves the adaptability of the meter in the field, and with a dust cover to protect the optical interface.
-Low battery indicator function, automatic shutdown function is optional.
-Simple operation, easy to use, with single interface to realize dual wavelength output.
-With power-saving mode, it will automatically turn off the power after the meter is idle for 10 minutes.
-Equipped with a meter bag, which can protect the power meter well, convenient to carry.

Package List:
-1 x Optical Light Source
-1 x Meter Bag
-1 x User Manual

Note: The product does not include battery.
