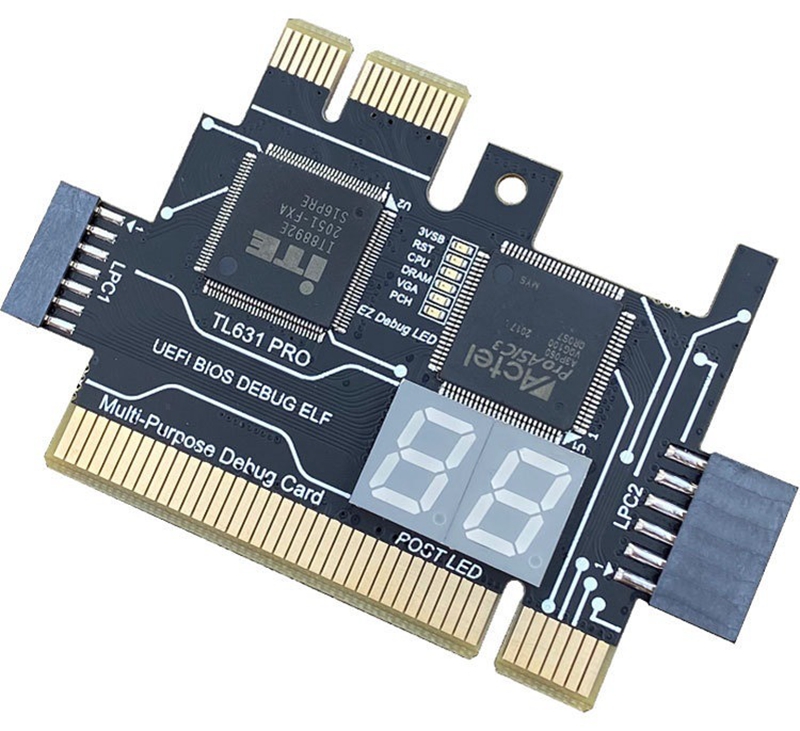

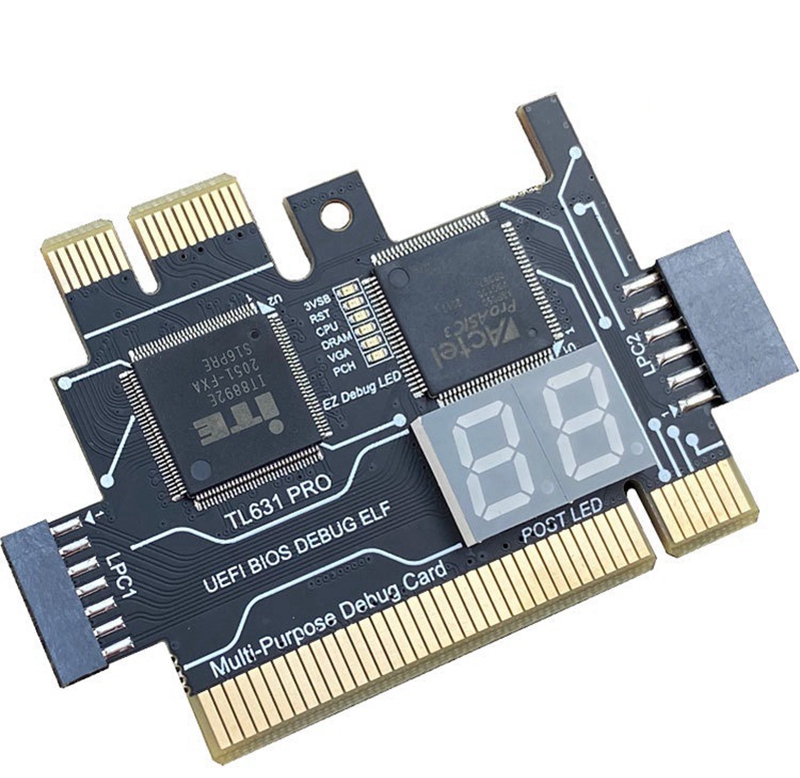

TL631 PRO PCIE Diagnostic Card for PC Laptop COM DEBUG MAC LPC Test Support 10th Generation Motherboard
Description:

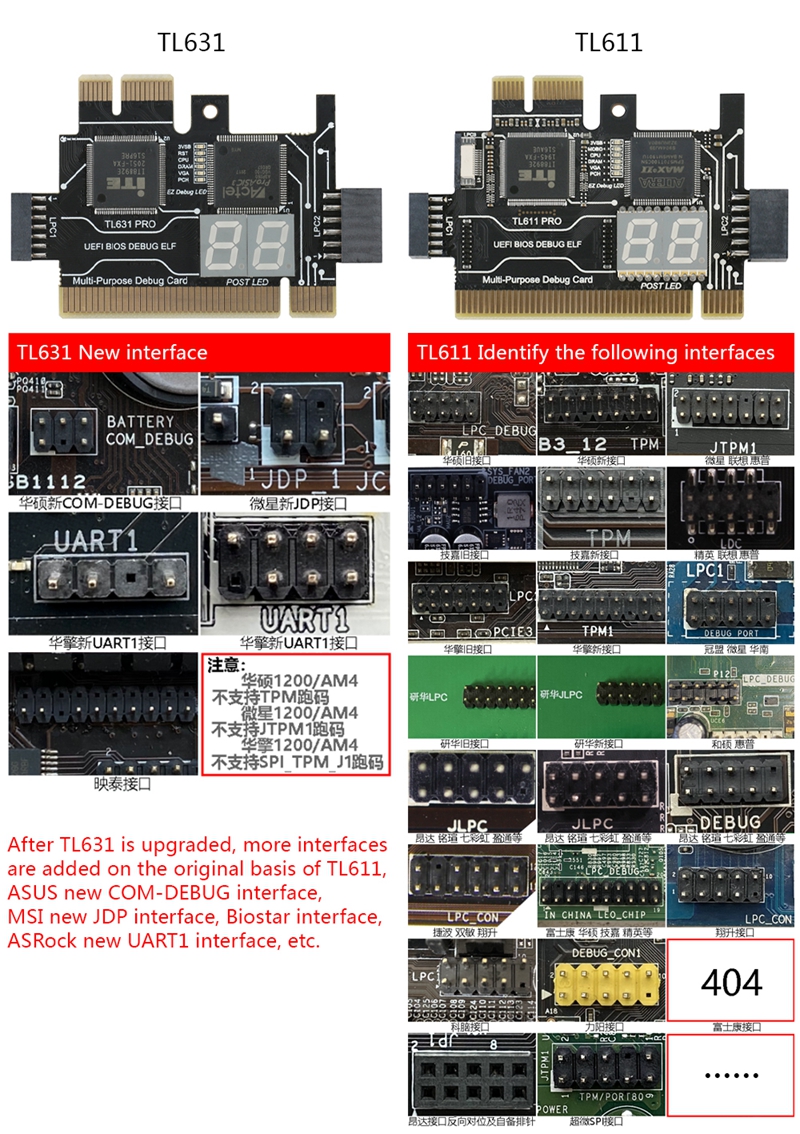

- The main core has been replaced with a new 128 bit (AES) advanced encryption standard on a large capacity chip. Serial communication protocols have been added, including for Asustek COM-DEBUG, for ASRock UART1, and for MSI JDP, providing more comprehensive support.

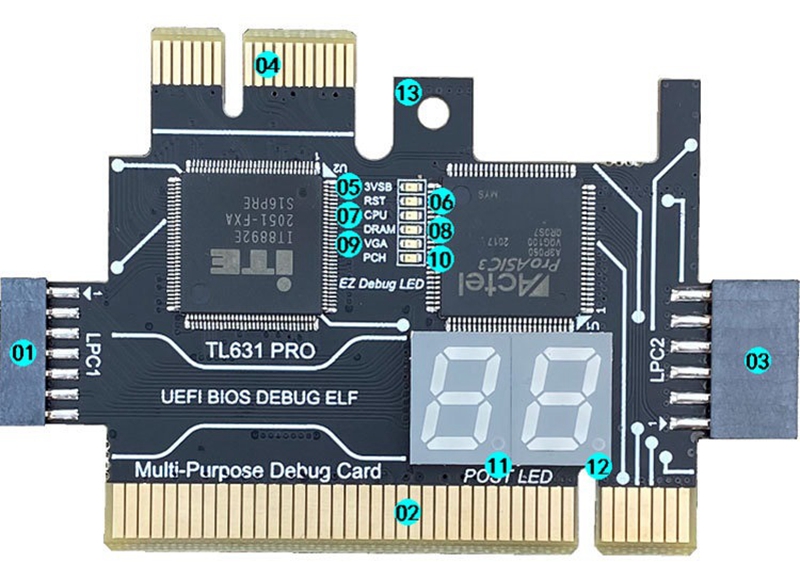

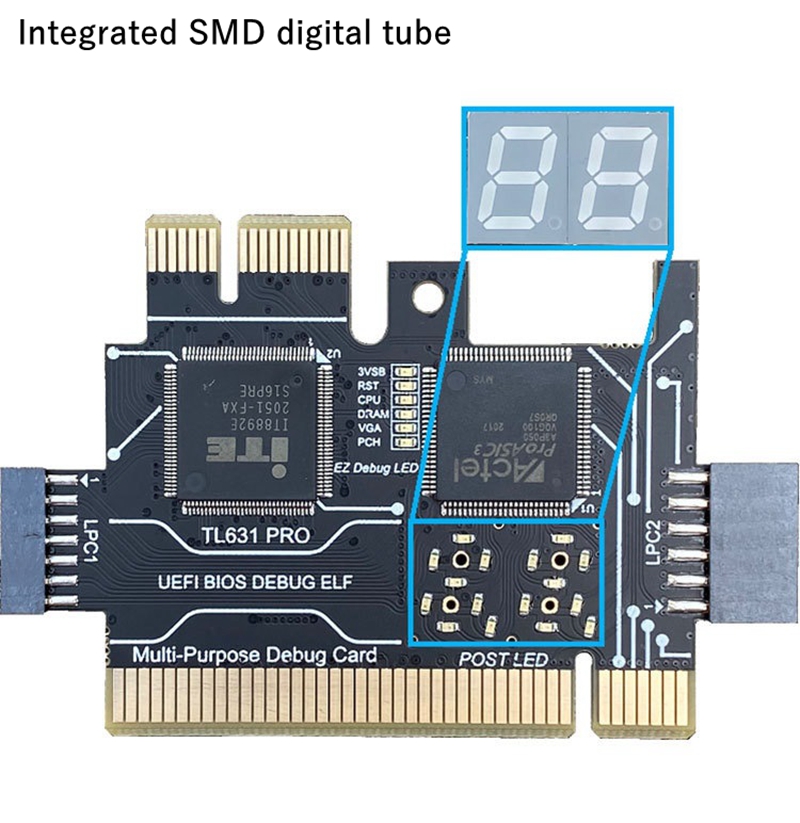

TL631 PRO Function:

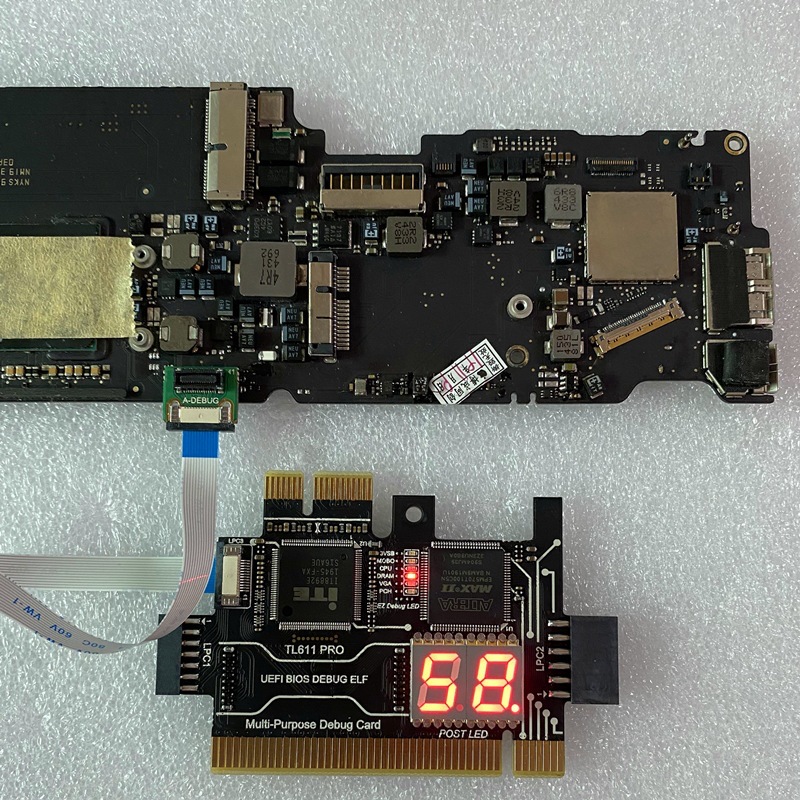

1: LPC1 shared high-speed channel = connect to the motherboard 2.0 small pin LPC interface and 2.0 module (Module expansion LPC3 interface can connect notebook MINI PCIE conversion card, A-DEBUG conversion card, for ASUS notebook DEBUG-CON, EC-DEBUG).
2: PCI high-speed channel = support all PCI slots.

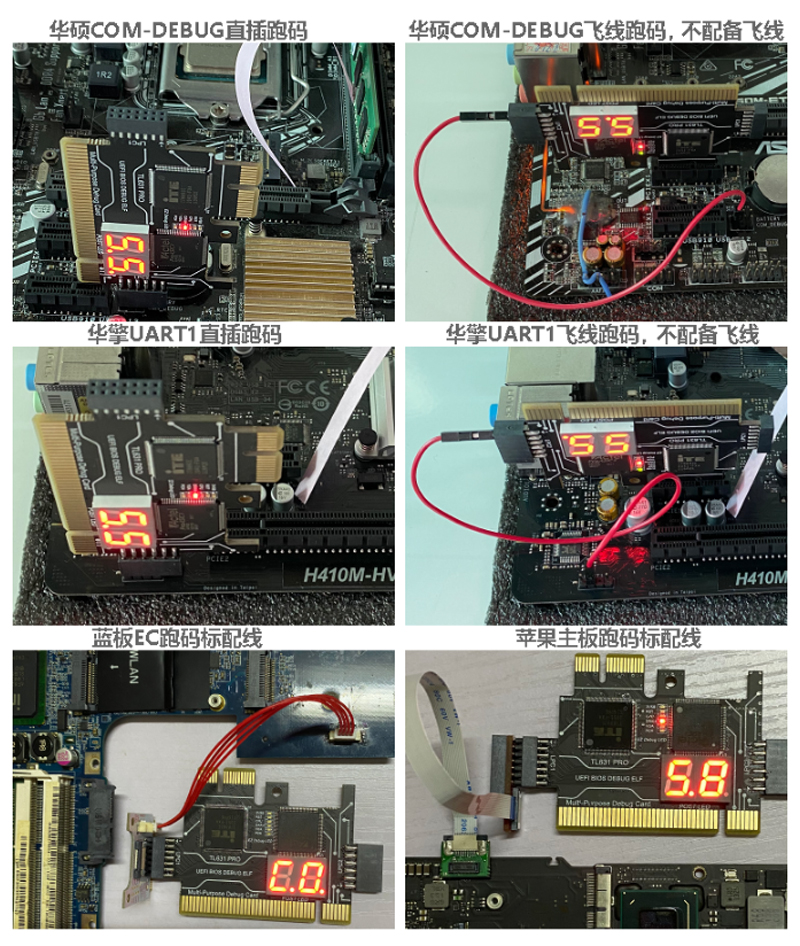

3: LPC2 shared high-speed channel = connect to the motherboard 2.54 large pin LPC interface, for ASUS COM-DEBUG, for ASRock UART1, for MSI JDP, for Supermicro SPl.
4: PCIE X1 high-speed channel = support Gigabyte without PCI motherboard (other brands do not support).
5: 3VSB power indicator, to detect whether the power is normal.
6: RST reset indicator, to detect whether the motherboard reset is normal (only when PCI or PCIE is inserted)
7: CPU indicator light, to detect whether the CPU module is normal.
8: DRAM memory indicator, to detect whether the memory module is normal.
9: VGA graphics indicator light, to detect whether the graphics card module is normal.
10: PCH south bridge indicator light, to detect whether the south bridge module is normal.
11: DP decimal point, CLK signal display.
12: DP decimal point, FRAME frame signal display.
13: threading hole

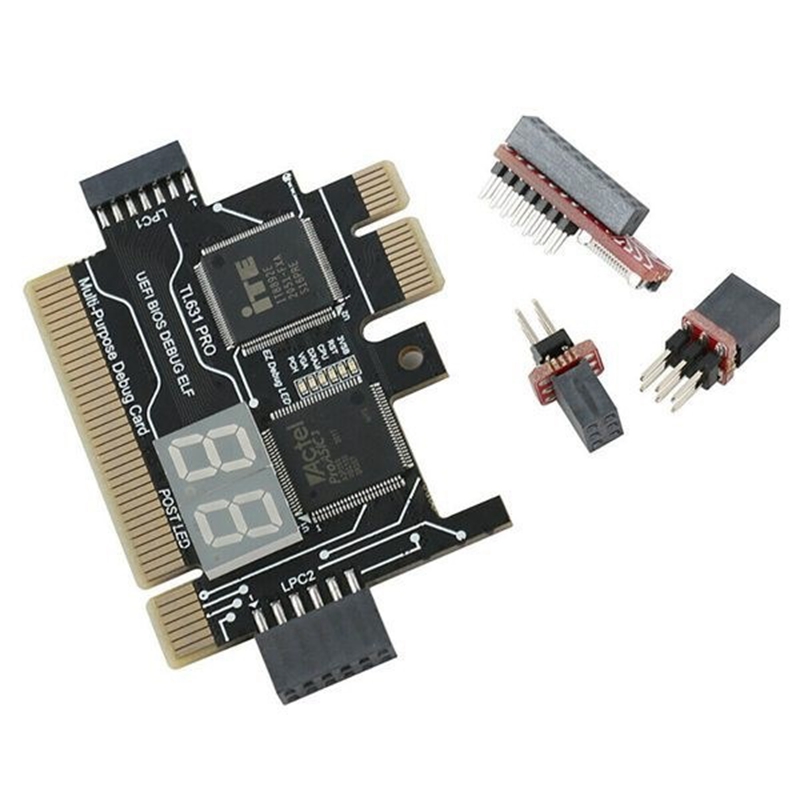

Package Included:

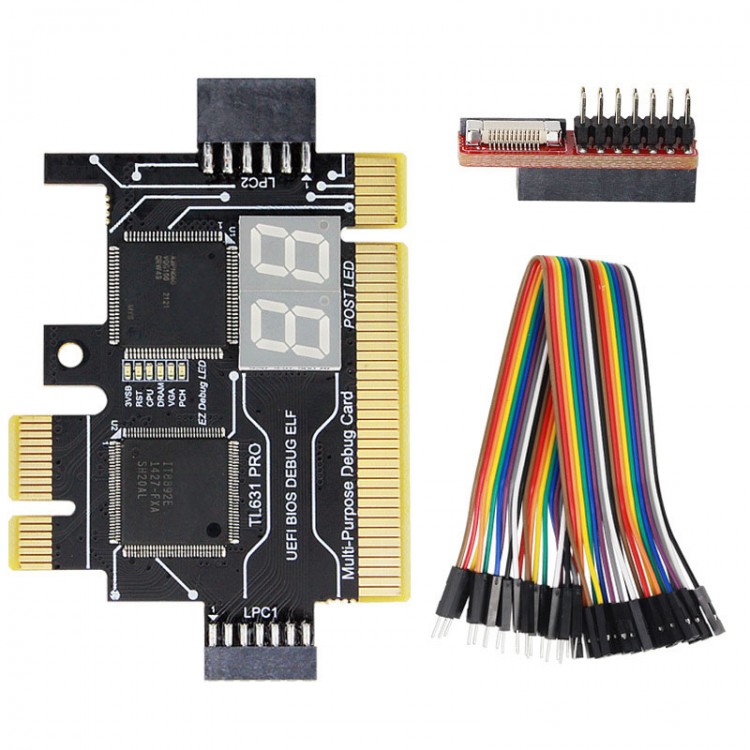

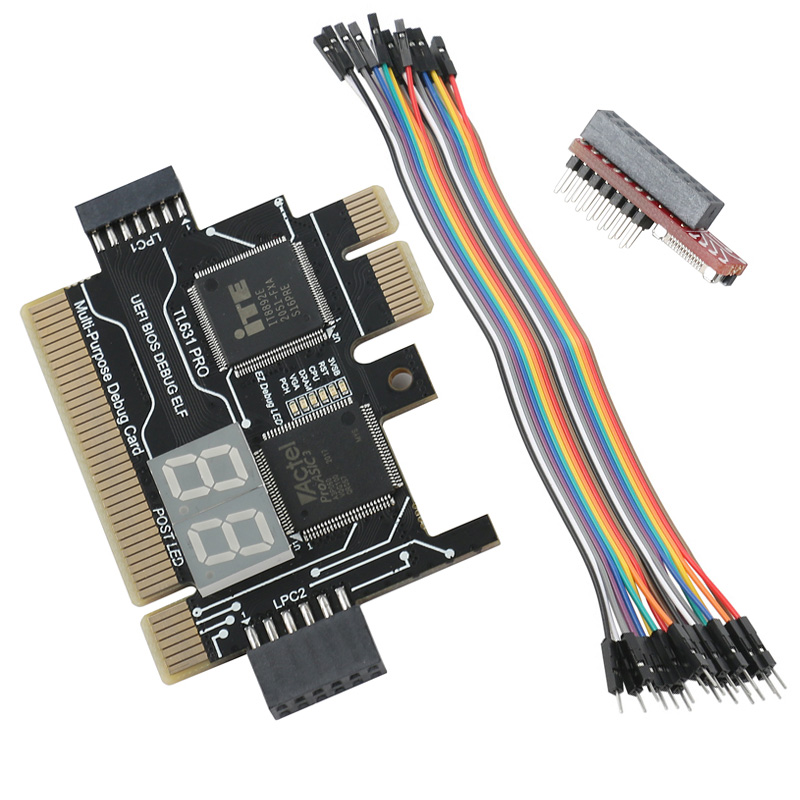

- 1 x TL631 PRO Card Kit
