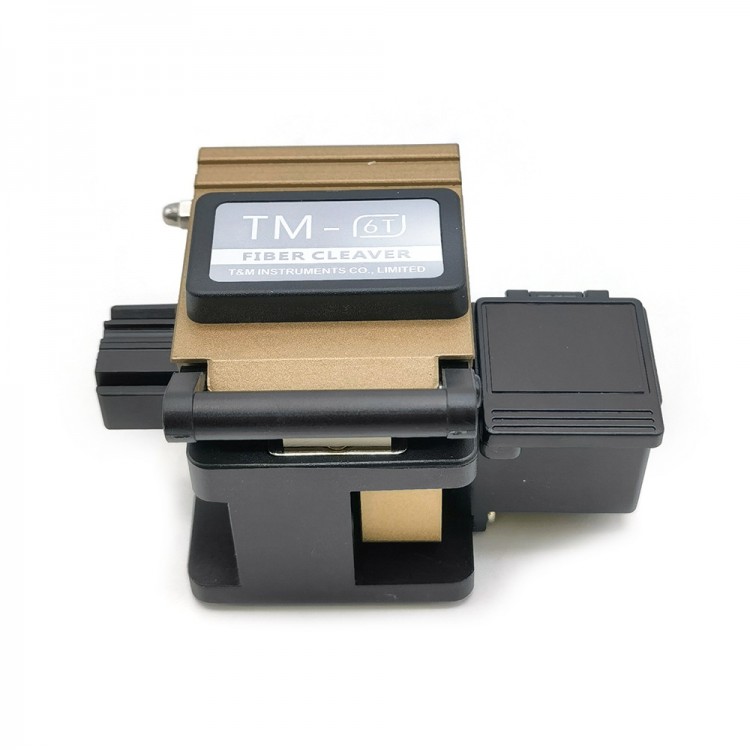

TM-6T High-Precision Fiber Cleaver Fiber Optic Cleaver Tool for Hot Melting and Cold Splicing
Features:
- Smart Cutting: Adopting tungsten carbide blade with high hardness to ensure clean cutting and high working accuracy
- Better Design: Automatic blade return design along with waste fibre box brings more convenience to optical fibre cutting
- Practical Use: Can be widely used on 0.25mm, 0.9mm and 3.0mm optical fiber with 125μm diameter. The cleaver is useful
- Reliable Work: The cutting angle is about 0.6°, which will meet your work needs for cold splicing and hot melting
- Safer Working: Also work effectively in preventing optic fibre from breaking. Very safe and reliable to operate
Specifications:
- Item Type: Fiber Cleaver
- Model: TM-6T
- Material: cemented carbide
- Applicable Optical Fiber: Single core quartz optical fiber
- Applicable Fiber Type: Approx. 0.25mm / 0.01in, 0.9mm / 0.04in, 3.0mm / 0.12in
- Optical Fiber Cladding Diameter: 125 μm
- Optical Fiber Cutting Length: Approx. 9~24mm / 0.35~0.94in
- Cutting Angle: ≤0.6 °
- Blade Life: 48000 Times
Package Included:
- 1 x Fiber Cleaver
- 2 x Wrenches
- 1 x Box
- 1 x User Manual
