Description:
- The Filter Wheel (AFW) is an electronic filter wheel with 3 interchangeable filter disks. It features a new mechanical location system for indexing the filter and is designed for easy imaging with mono astronomy camera.

Features:
- Maximum number of slots (default disk): 7
- Filter slot (default disk): 36mm

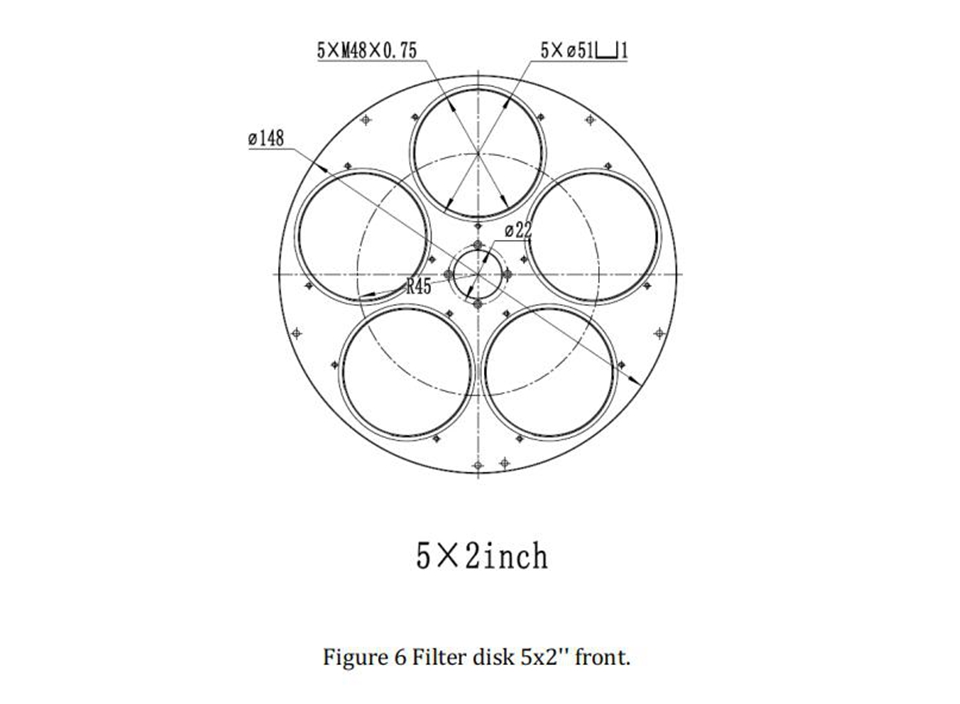

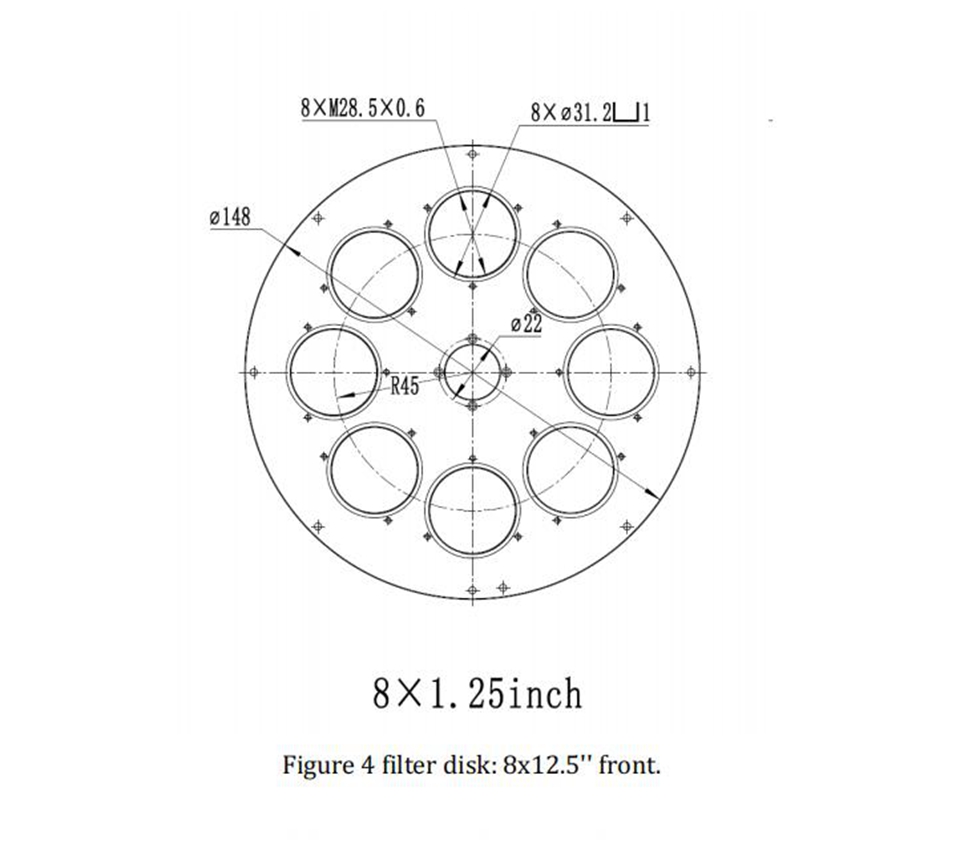

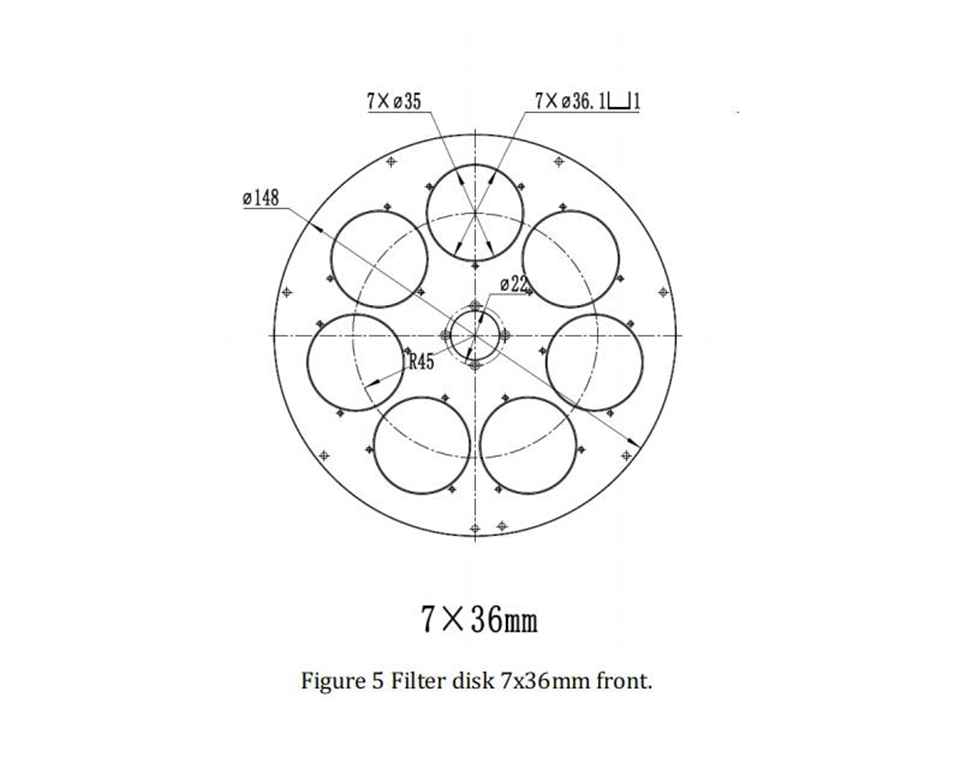

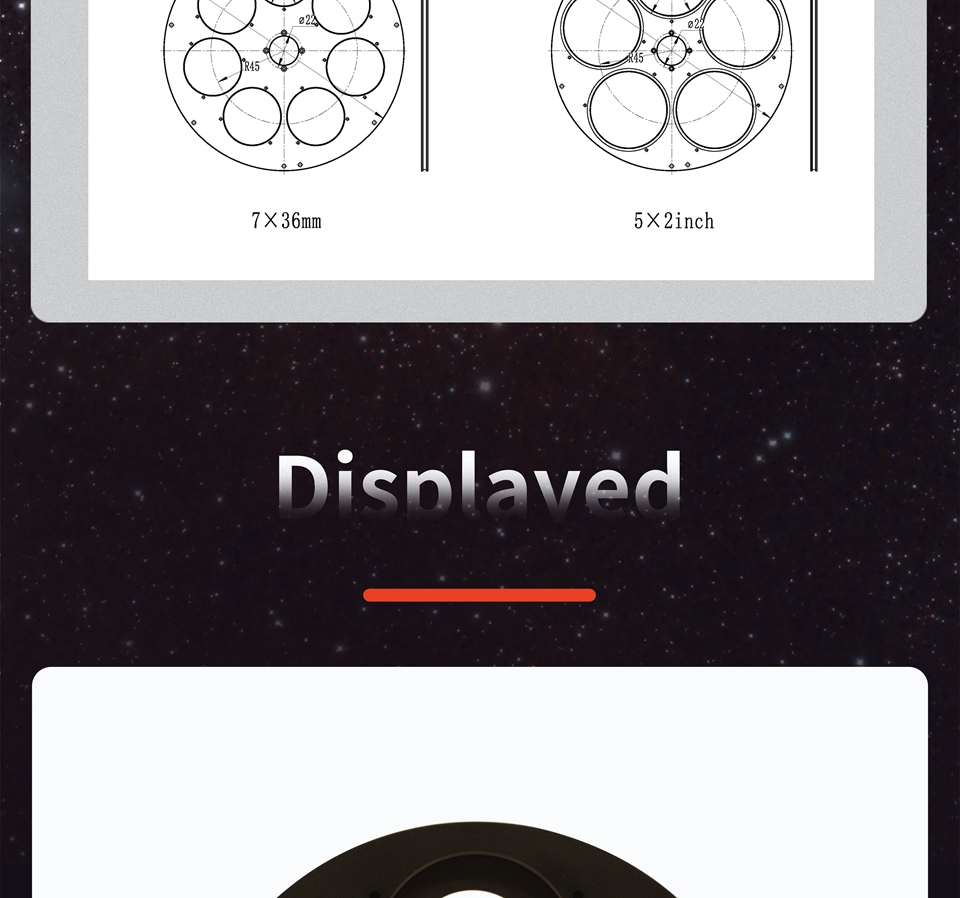

- 3 filter disks: 7x36mm, 5x2", 8x1.25" (optional)
- Adaptor connection: M54
- Optical Length: 20mm
- Power supply: USB2.0
- Electronic motor driven
- Weight: 510g

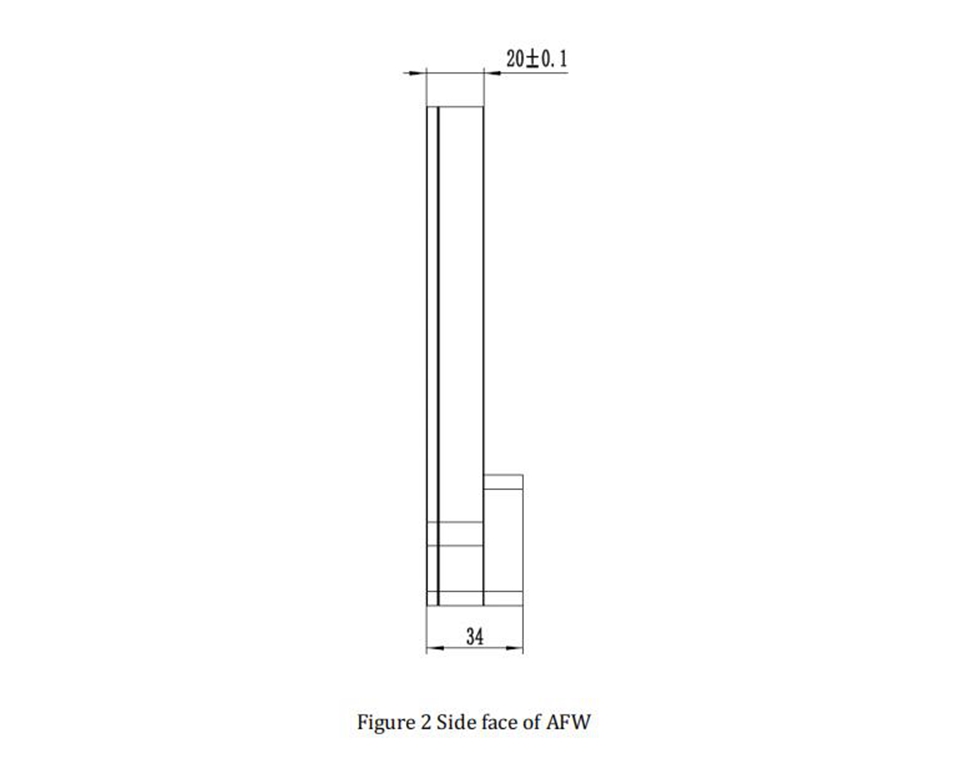

- Thickness: 20mm
- Casing material: aluminum
- Support for ASCOM driver

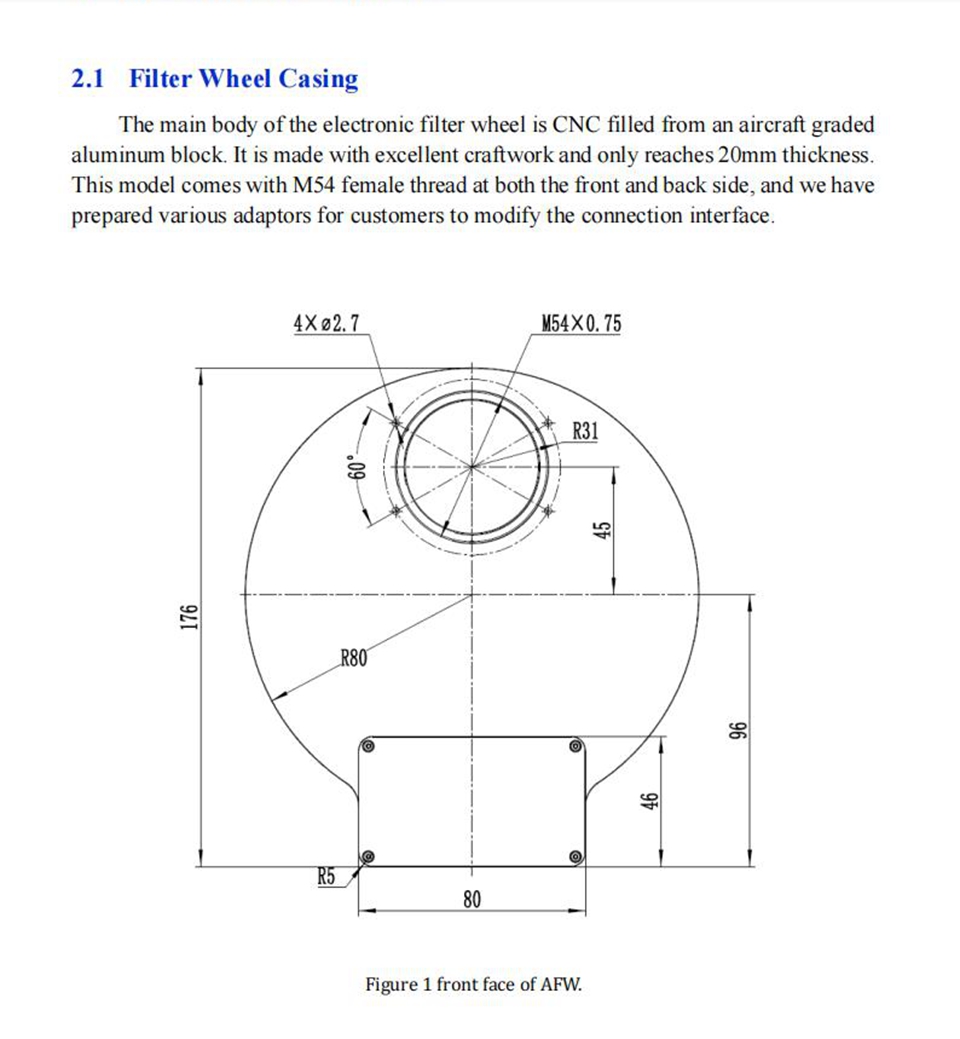

Filter Wheel Casing:

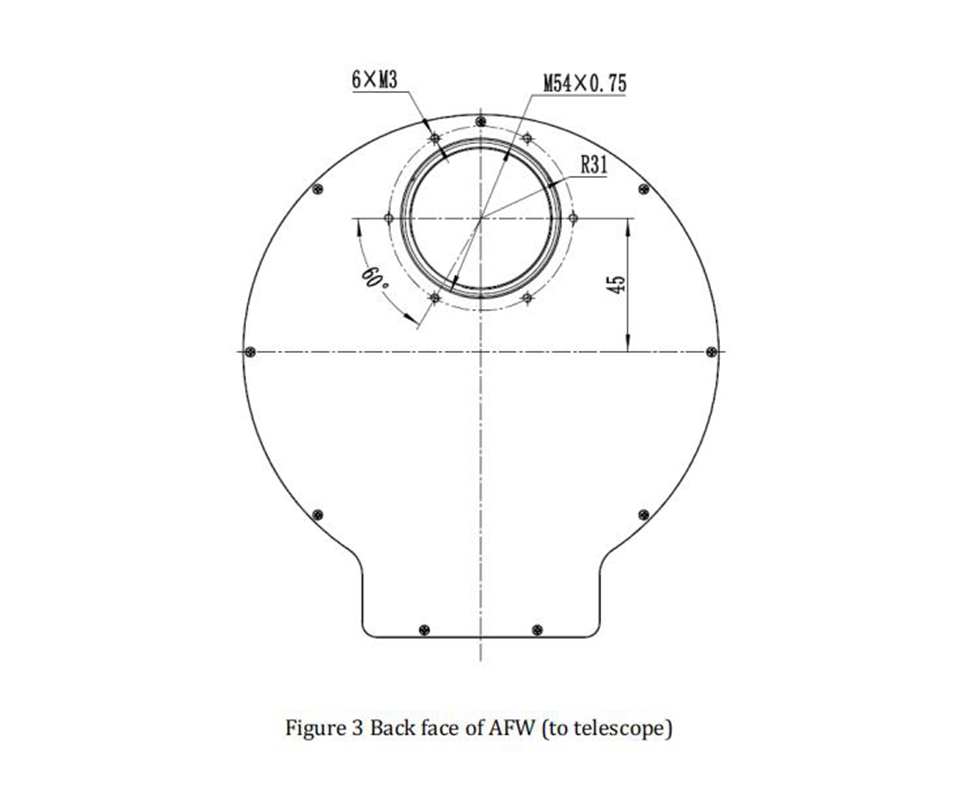

- The main body of the electronic filter wheel is CNC filled from an aircraft graded aluminum block. It is made with excellent craftwork and only reaches 20mm thickness. This model comes with M54 female thread at both the front and back side, and we have prepared various adaptors for customers to modify the connection interface.

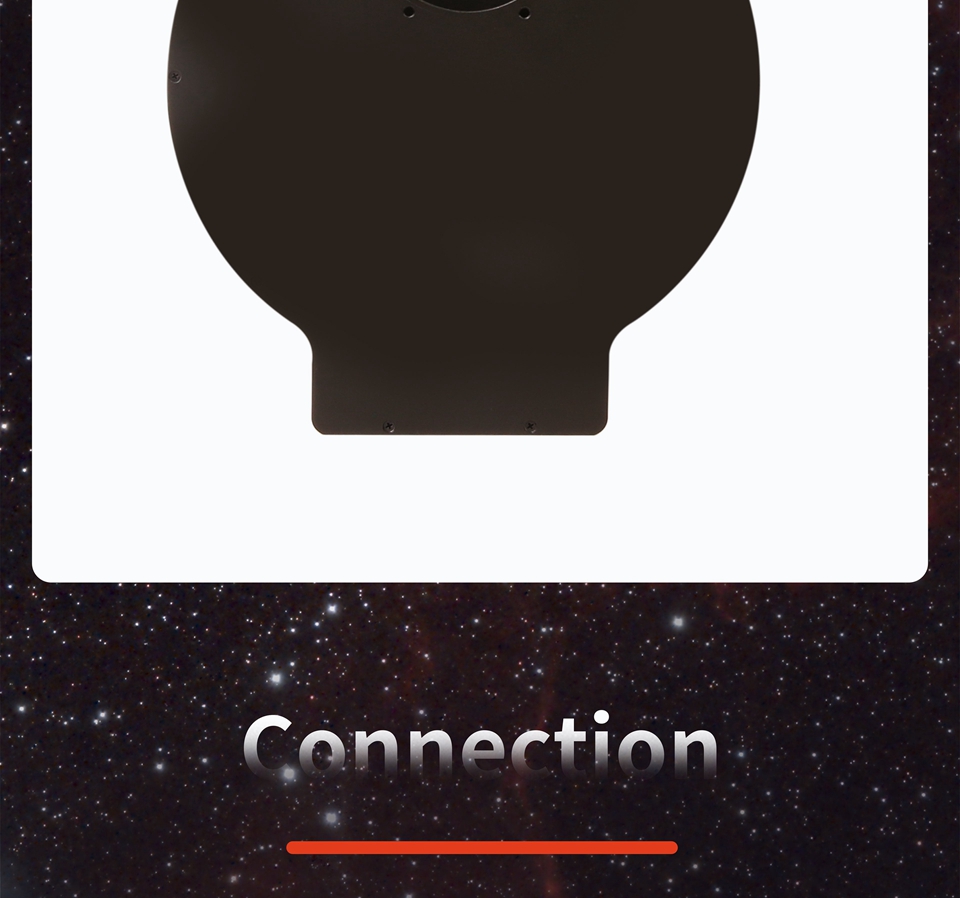

Connection and Power:
- ToupTek Filter Wheel supports USB2.0 interface and also is powered through the USB2.0 connection. Users simply needs to connect the filter wheel with any PC control device then the filter wheel is good to go. If users has one of our ATR3 series cooling camera, the filter wheel could also be connected through the USB2.0 hub on the cooling camera and be controlled through the USB3.0 connection on the camera.

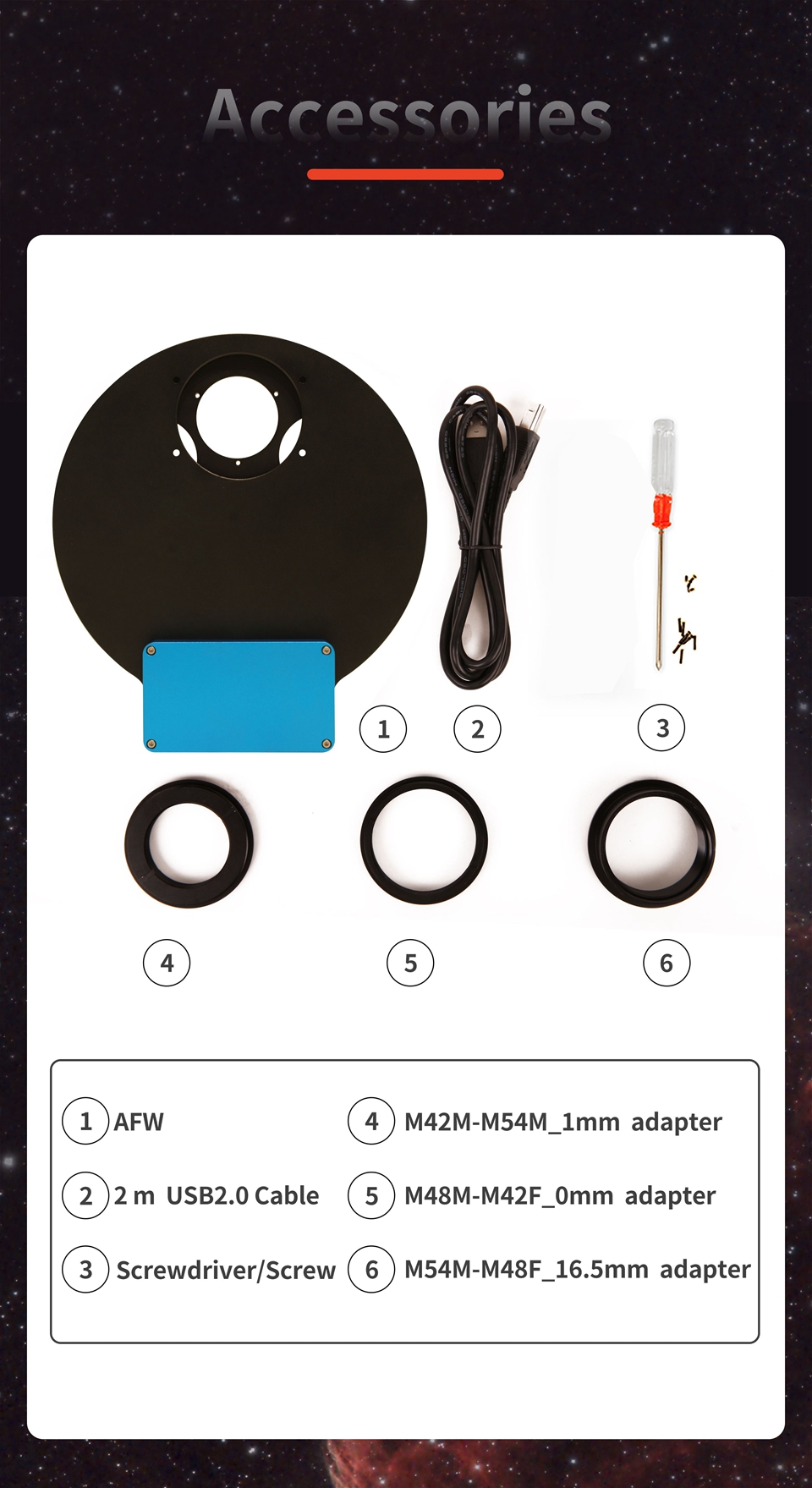

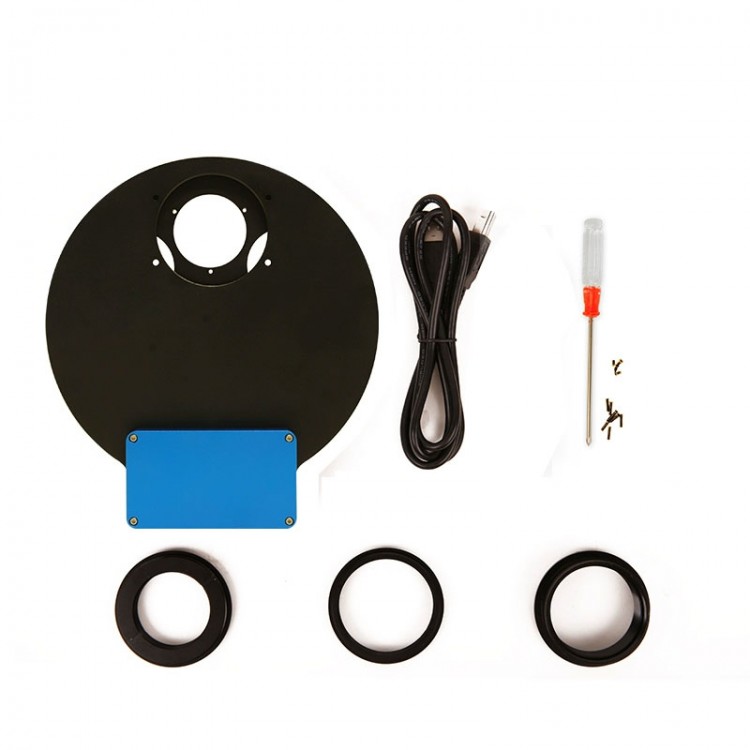

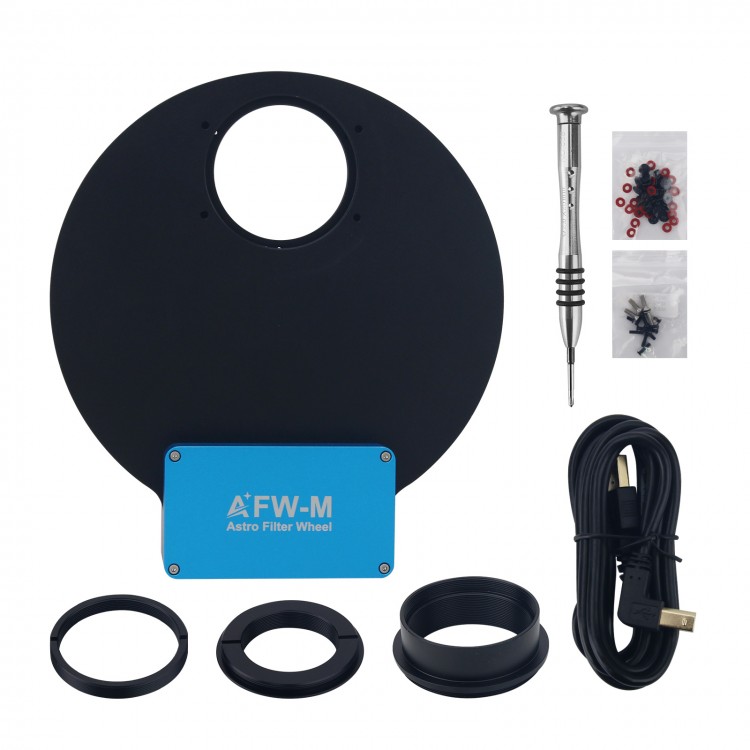

Package Included:
- 1 x AFW
- 1 x 2m USB2.0 Cable
- 1 x Screwdriver

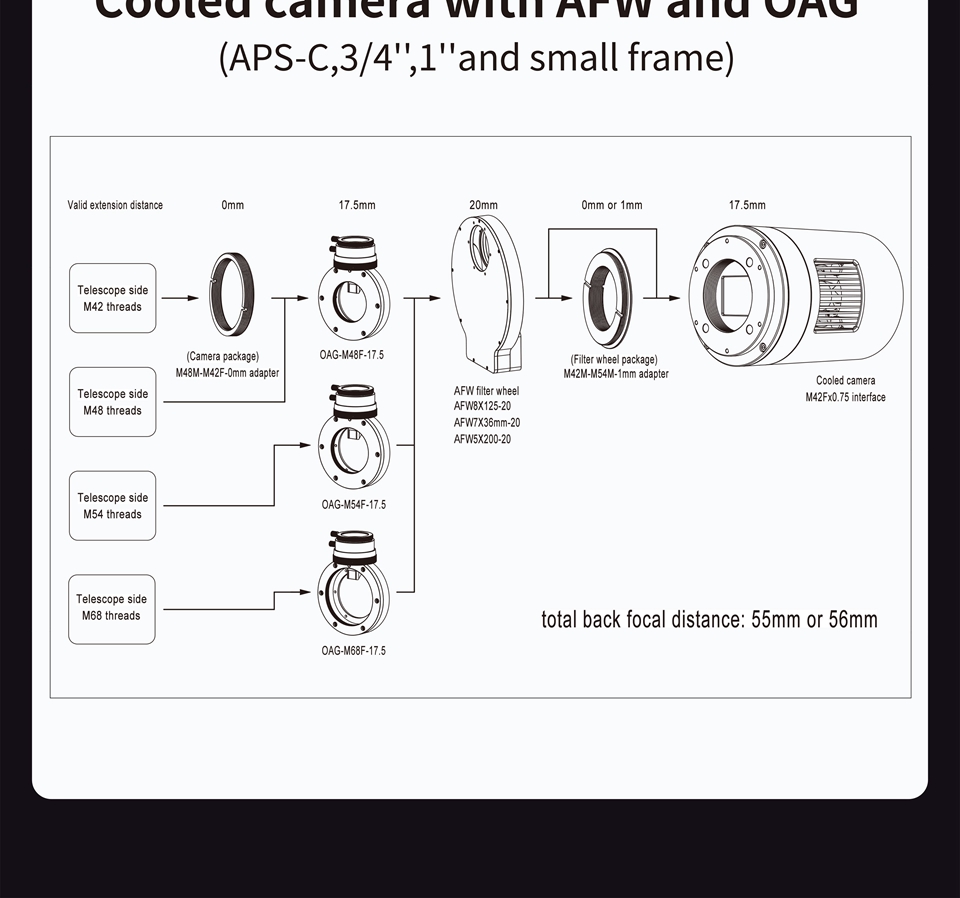

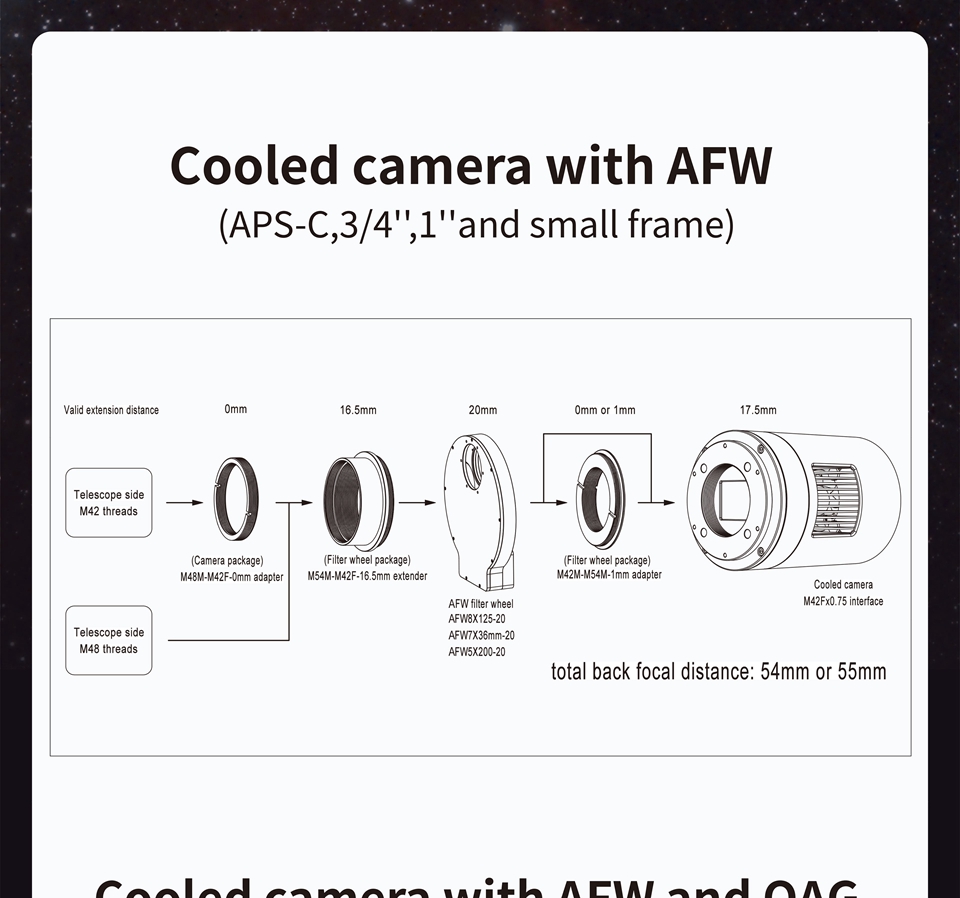

- 1 x M42M-M54M_1mm Adapter
- 1 x M48M-M42F_0mm Adapter
- 1 x M54M-M48F_16.5mm Adapter
