Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $20.73 | $20.30 | $19.67 | $18.82 | Contact US |

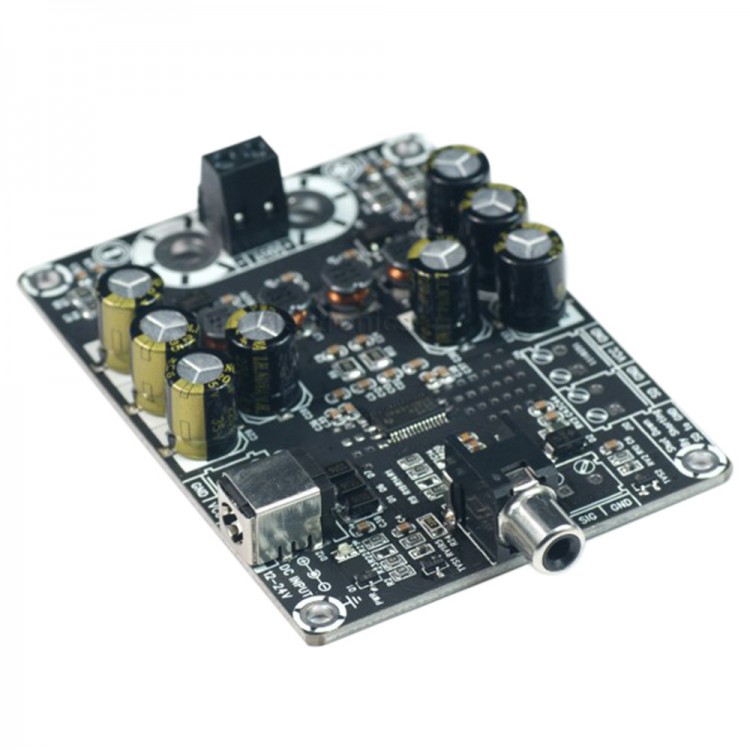

TPA3118 Class D 1x60W Digital Audio Amplifier Board Stereo HIFI Power Amp
Description:
This class D audio amplifier board employs TI' TPA3118 Amplifier IC and supports stereo amplification by using two channel BTL topology.
By means of dedicated PCB heatsink design,it is capable of delivering dual channel maximum power 30W RMS @ 8ohm simultaneously without extraordinary heatsink.
Besides of built-in chip protection, ESD and spike protection components used throughout input and output of the amplifier board ensure its robustness and reliability.
Features:
- Screwing to chassis conveniently
- Shut down easily by external pulled down to GND
- Size:3.95inchX2.7inchX0.6inch
- Weight: 56g
- Thermal and short circuit protection
- Startup and power down pop elimination
- Overvoltage and undervolatge protection
- Analog single ended signal input(RCA)
- Output 30W@8ohm 21V DC THD+N 10%
- 24W@8ohm 21V DC THD+N 1%
Applications:
- Desktop Amplifier
- Personal Computers
- Microphone Preamplifier
- Home DIY
- Vending Machines, Lifts, Interactive Kiosks
- Home Theater Receiver
- Car Audio
- Multi-channel Distribution
- Background Music Systems
- Musical Instrument Amplifiers
Package content:
- Class D Audio Amplifier Board x1
