TS101 90W Mini Soldering Iron Electric Soldering Iron w/ ESD Ground Clip USB Cable Stand TS-K Tip
Features:
- TS101 smart soldering iron.
-
DC and PD power supply modes: fast to melt tin. Two power sources meet
your various needs. PD 9-28V 90W max and DC 9-24V 65W max. DC and PD
interfaces cannot be used at the same time.
- Easy to disassemble to save space. Convenient to use & portable to carry.
-
Accurate control and intelligent protections: automatic sleep,
automatic standby, detailed menu, accurate temperature control and smart
algorithm compensation.
- 50 to 400℃ temperature control.
- Boost
Mode for Bigger Soldering Joints: In the working state, press and hold
button A to enter the boost mode. When the button is released, the
soldering iron will automatically adjust to the preset operating
temperature.
- Dynamic soldering tip detection: Detect circuit in real time to prevent burnout of the control end.
- Wider screen for more details. It can display instant voltage, working temperature, preset temperature and instant power bar.
- Stainless steel ball head screw to stabilize its soldering tip.
- With a anti-slip sleeve.
- Soldering Tip: High-temperature resistance, oxidation resistance and longer service life.
- It is also compatible with TS100 tips.
-
e-Design self-developed firmware upgrade software: The soldering iron
can be connected to a computer to upgrade its firmware, customize the
configuration file and the welcome icon for booting.
- By upgrading
its firmware, TS101 can support USB PD3.1. It can work at 28V when it is
powered by USB-C port. PD working power is increased from 45W to 90W.
To use USB-C PD 3.1 28V input on TS101, you need to: Upgrade your TS101
firmware to APP 2.0 or above, and set menu "PDPwMax" as OFF; Use a power
adapter that supports PD 3.1 28V 5A output; Use a USB-C power cable
that supports 50V 5A 240W EPR.
Specifications:
- Shell color: Dark Grey
- USB interface: USB-C (Power supply and connection to computer)
- Power supply input: DC 5525 Wide Voltage, PD3.1
- Working voltage & power: DC 9-24V 9-65W (MAX); PD 9-28V 9-90W (MAX)
- Temperature range: 50-400℃
- Temperature stability: ±2%
- Soldering iron tip's resistance to ground: ＜2Ω
- Handle size: L 98mm/3.9" and diameter 16.5mm/0.6"

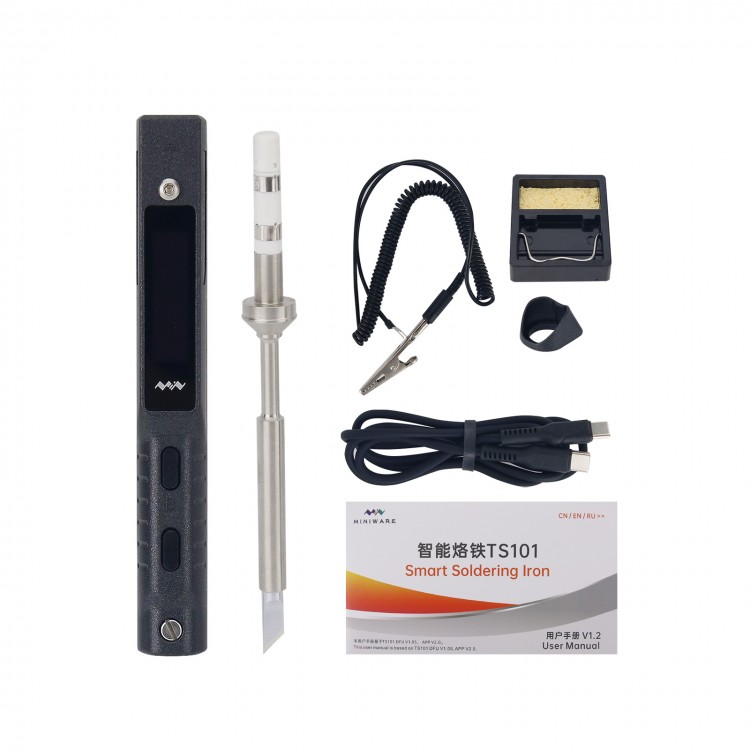

Package Included:
- 1 x Soldering handle (control end)
- 1 x Soldering iron tip
- 1 x ESD ground clip
- 1 x Soldering stand
- 1 x Simple stand
- 1 x Type-c silicone cable
- 1 x User manual
