TS80P Portable Soldering Iron Kit 30W Adjustable Temperature PD2.0 QC3.0 Power Supply

TS80P Portable Soldering Iron Kit 30W Adjustable Temperature PD2.0 QC3.0 Power Supply

Description:
TS80P is an upgraded version of TS80 smart soldering iron. TS80P is a smart electric soldering iron with USB Type-C interface and PD2.0/QC3.0 standard power supply. It can use PD2.0 (12V 2.5A) or QC3.0 (9V 2A) standard charging head, power bank and mobile power supply. The output power is increased to a maximum of 30W, and the fastest heating from room temperature to 300°C takes only 8 seconds, and the performance is more superior.

The shell of TS80P control end is made of aluminum alloy and integrated with CNC. The structure is compact, ergonomic, beautiful and fashionable. At the same time equipped with OLED display, so you can control the status of the soldering iron at any time. TS80P is equipped with a new easy-push type iron head fastener to provide users with a better holding experience. The iron head can be loosened with a simple push to achieve quick replacement. Built-in STM32 main control chip can intelligently control temperature rise and fall, and has multiple modes such as sleep, automatic shutdown, and security protection. The code application layer is open source, you can develop soldering iron firmware according to your needs.

TS80P and TS80 share a soldering iron tip, which uses an internally-heated ceramic heating core. Through pure copper thermal conduction part, heat is quickly transferred to the tip of the soldering iron tip. Temperature control performance is stable, and the soldering iron tip can be easily and quickly replaced by easy-to-push fasteners.

Features:
- OLED display, all aluminum alloy shell, CNC integrated molding
- General PD2.0, QC3.0 protocol power supply
- Power increased from 18W to a maximum of 30W
- The fastest heating time is only 8 seconds (from room temperature to 300℃)
- New easy-to-push soldering iron fasteners to easily loosen the soldering iron tip
- Intelligent security chip to achieve port protection
- General TS80 series soldering tip

Performance Parameters:
- Temperature range: 100℃ to 400℃ (maximum)
- Power supply input: 9V/2A (QC 3.0) / 12V 2.5A (PD2.0)
- Power: up to 30W
- The fastest heating time (room temperature to 300℃): 8 seconds
- Interface type: USB Type-C
- Temperature error: ±3%
- Display screen: OLED
- Length: control end: 96mm; soldering iron tip: 100mm (60+40mm)
- Weight: 38g (without power supply); soldering iron tip: 14g (B02)
- Certification: CE, FCC, PSE
- Other functions: Port protection, sleep mode, automatic shutdown, custom boot LOGO, firmware upgrade

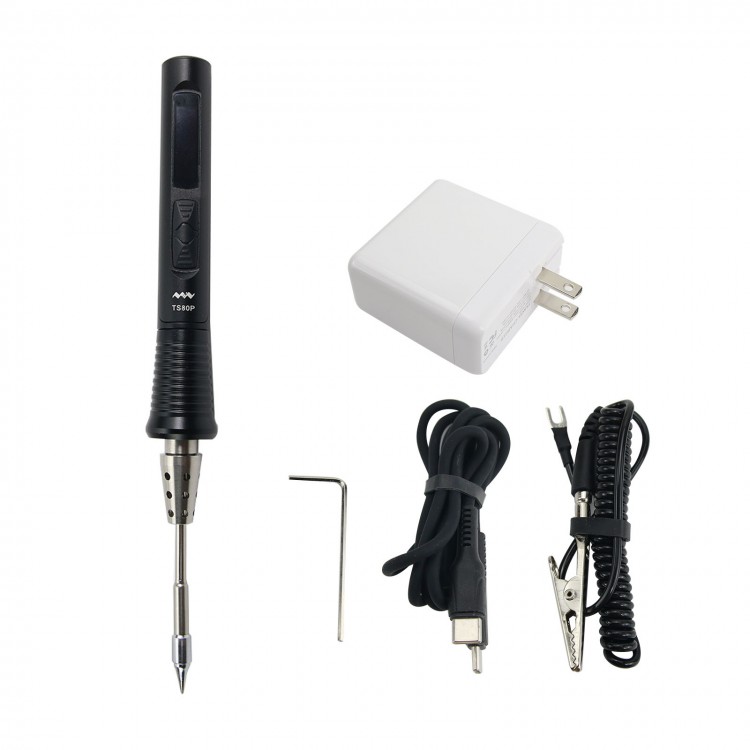

Package Included:
- 1 x TS80P Soldering Iron Control End
- 1 x Soldering Iron Tip (B02)
- 1 x PD Power Adapter
- 1 x Type-C Power Cord
- 1 x Ground Clamp Line
- 1 x Hex Wrench
- 1 x Instructions for Use
