Musical Paradise MP-D1 MK3 ES9028Q2M Tube DAC Bluetooth Headphone Amplifier Decoder Finished Support For APTX HD

Tube DAC Bluetooth Headphone Amplifier Decoder Finished Support For APTX HD MP-D1 MK3

Description:
MP-D1 tube decoder uses asynchronous USB input chip. This newly designed third-generation MP-D1 decoder has comprehensively improved sound quality and functions. And it enables the latest Bluetooth high-definition APT-X HD wireless audio decoding function. You can wirelessly enjoy the sound equivalent to that of high-end CD players, just install some music players in your mobile phones.

Technical Features:
- Dual ring transformers, one for digital circuit and one for analog circuit.
- American low phase noise asynchronous high frequency clock is adopted to further reduce the time base error.
- Use multiple low ripple output pure linear regulated power supply chips.
- The USB module uses the latest U208, which is twice as fast as the previous generation U8.
- Bluetooth 5.0 APT-X HD Bluetooth wireless audio transmission technology.
- USB module and Bluetooth module I2S output with digital isolation circuit to isolate the digital interference introduced by the digital end.
- It adopts 32-bit MCU controller and provides upgrading interface.
- High-quality headphone amp and pre-amp functions. Pre-amp function is off when you connect your headphones to the amplifier.
- Plug-in DAC chip module equipped with ES9028Q2M DAC module.
- USB input supports up to PCM384Khz, DSD128 (Windows), DSD512 (For Linux digital broadcast).
- Tubes with zero negative feedback analog output circuit.
- Independent RCA pre-amp output and amp output interface.
- Use genuine enthusiast-grade resistance-capacitance components, American resistor, coupling capacitor, electrolysis and the like.
- High-quality Taiwan gold-plated terminals, Swiss XLR terminals and power filter sockets.
- Aluminum alloy chassis with aluminum alloy shock absorb feet.

Sound Characteristics:
- Sound field is big, wide and deep.
- Transparent and airy sound.
- Delicate sound.
- Zero burr, silky smooth.
- High resolution, revealing super fine sonic details.
- High dynamics and enough low frequency, without compressing.

Technical Parameters:
- Frequency Response: DC to 50khz
- DR/SN: 127 dB
- Output Level: 2V single-ended RCA fixed output, maximum 8V single-ended RCA pre-amp output.
- Input Interfaces: Bluetooth, coaxial and USB. USB supports up to PCM384Khz, DSD128 (Windows), DSD512 (For Linux digital broadcast, Raspberry Pi, etc.). Bluetooth supports for APT-X HD 24Bit 96Khz.
- Tubes: Fits 6H6 (Standard), 6n11, 6H30, E88CC, 6922 and 6DJ8

Download Driver:
https://pan.baidu.com/s/1jHhjDaQ

Note:
- For the latest fall version of Win 10, no driver installation is required.
- It is finished and ready to use.

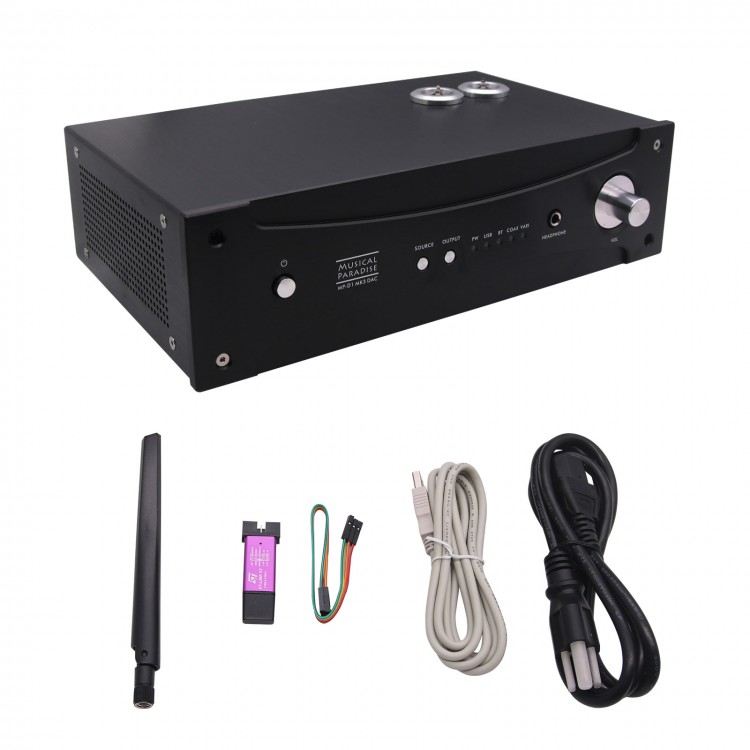

Package Included:
- 1 x Tube DAC Headphone Amplifier with Antenna
