TV160 6TH Generation LVDS-VGA Converter LCD TV Motherboard Tester 4.3" Screen Supports SD HD Screens

TV160 6TH Generation LVDS-VGA Converter LCD TV Motherboard Tester 4.3" Screen Supports SD HD Screens

Description:
The 6th generation LVDS-VGA converter is compatible with SD and HD screens. Due to easy application, it is a good tool for most maintenance technicians to repair the motherboards of flat TVs. It supports all formats of LVDS signals, and also supports 60Hz, 120Hz, 240Hz single-screen cable and dual-screen cable.

Features:
- The converter with a 4.3" display screen making it convenient for engineers to carry and test TV motherboards, etc.
- 14 kinds of LCD interfaces on 5pcs conversion boards to fit 90% of TV LCD screens on the market
- The converter's screen can display the images in LVDS format sent by motherboards, and supports external VGA signals
- Supports LVDS signals at 60Hz, 120Hz and 240Hz for single-screen and dual-screen cables
- Unified output 1280*720/60HZ VGA signals. Can be connected to various monitors with VGA cable, supporting CRT, LCD and TV as monitors (good compatibility)
- ESD design of input interface, strong anti-static ability
- Easy to switch between various LVDS formats
- With a 5V-12V power adapter featuring wide power input
- Can be powered by a power bank, enabling easy test of motherboards

Package Included:

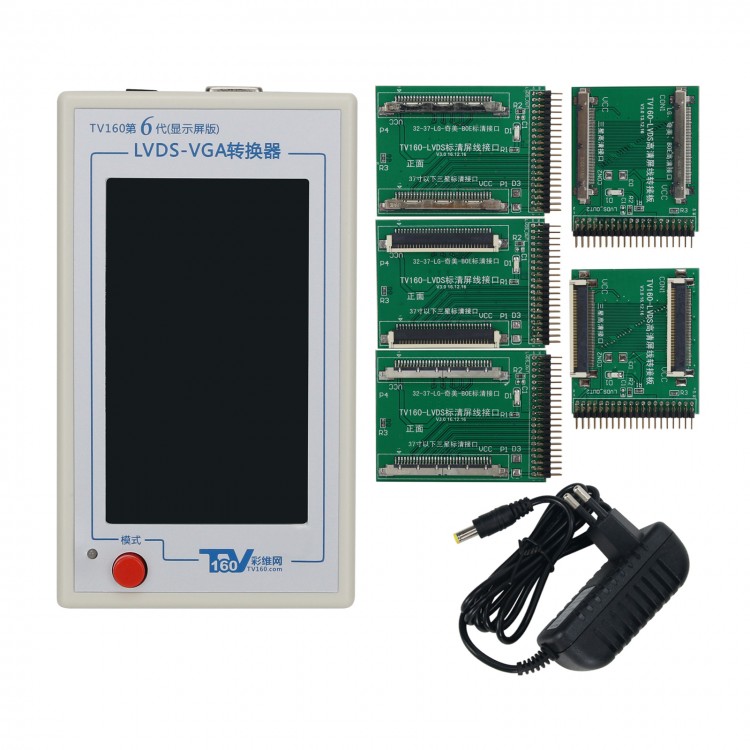

- 1 x Converter Host

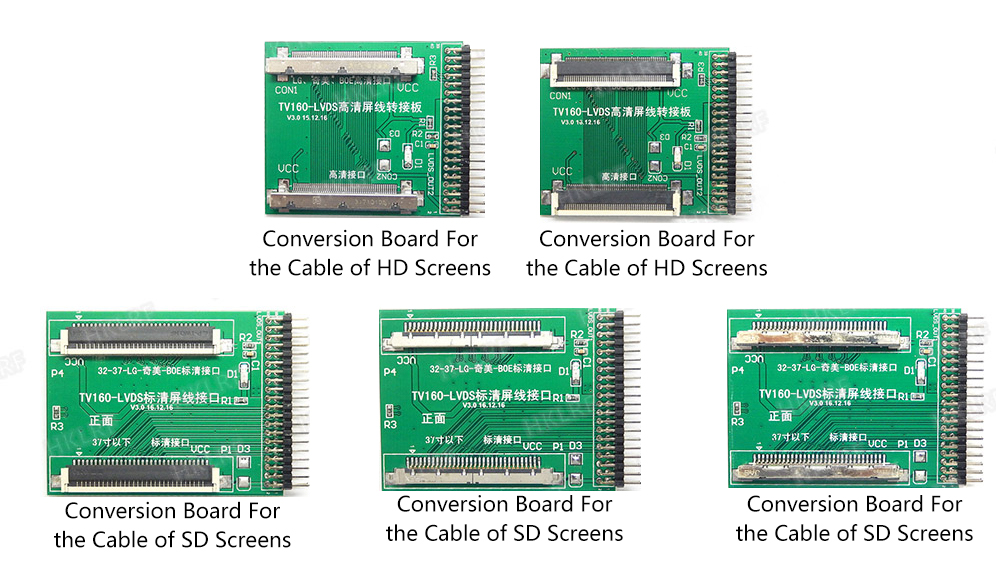

- 5 x Conversion Boards For Screen Cables
- 1 x Power Adapter

Note:
- Other items pictured are not included, for demonstration purposes only. Thank you for your understanding!



Instructions:

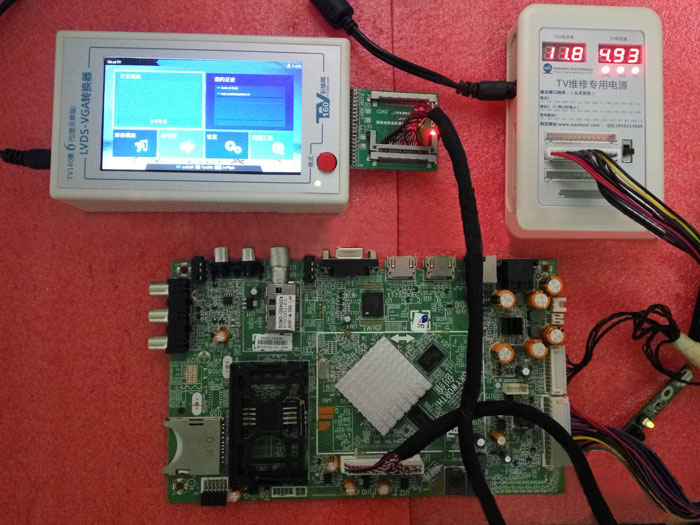

1.Connect a main board to a screen cable conversion board and ensure correct line sequence. Turn on the mainboard of the TV, and when the indicator light of the conversion board is on, it means that the connection between the mainboard and the conversion board is correct, otherwise, please check and connect again;

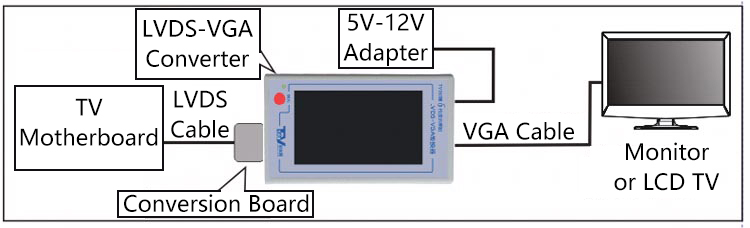

2. Place the screen cable conversion board with the front side up, insert it into the LVDS converter (see the picture above), and set both the TV motherboard and the converter to the power-on state;
3. When images are blurry, users need to press the mode switch button repeatedly to switch between various modes until the images are normal.
4. The converter supports LVDS formats including 60Hz, 120Hz and 240Hz. If a motherboard with two screen cables is connected, only one main screen cable should be connected to the HD converter board, with the other screen cable disconnected. The converter can also be used to convert your desired images.

Support LVDS Signal Format and Resolution:
This converter supports 6bit/8bit/10bit LVDS signal, and the LVDS signals from 60Hz, 120Hz, 240Hz single-screen cables and dual-screen cable. It is a general-purpose instrument for LVDS signals, and a powerful tool for maintenance and testing of motherboards.
