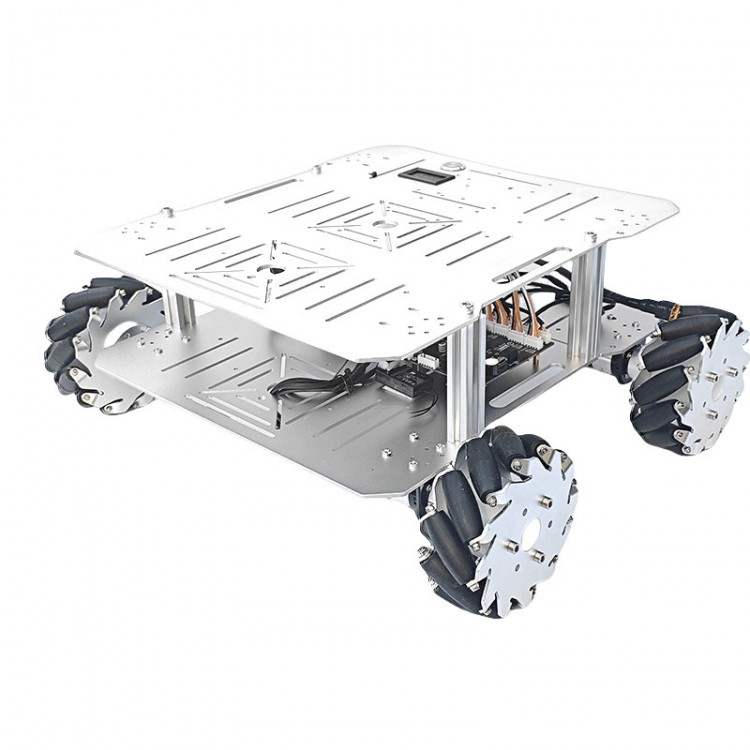

Two-Tier Large Smart Car Chassis w/ 127mm Metal Mecanum Wheels Swing Suspension & 10KG Load Capacity
Features:

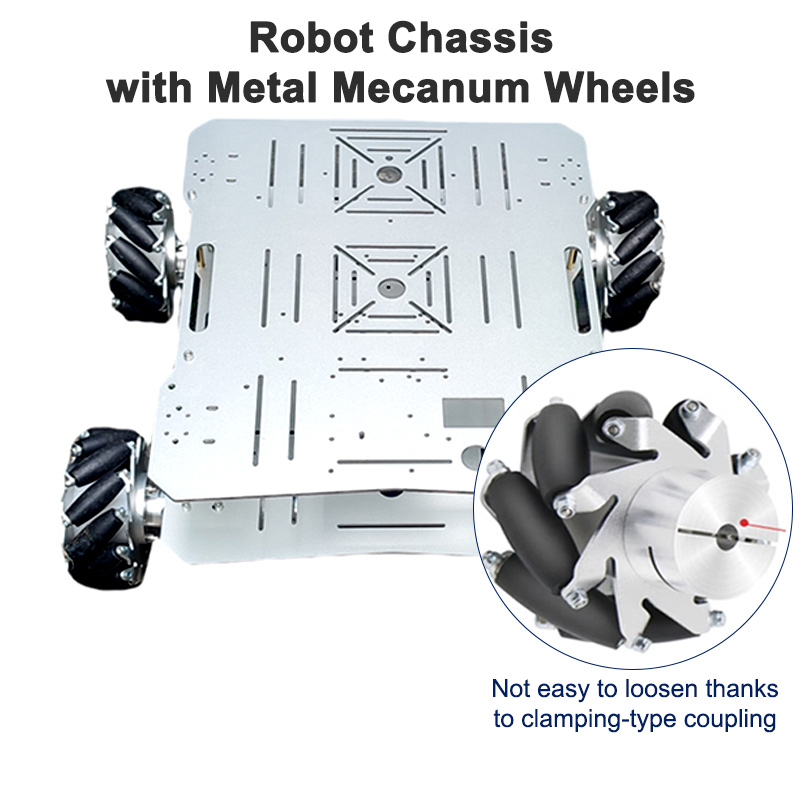

* The robot chassis with metal Mecanum wheels: Not easy to loosen thanks to clamping-type coupling
* The smart car chassis with swing suspension

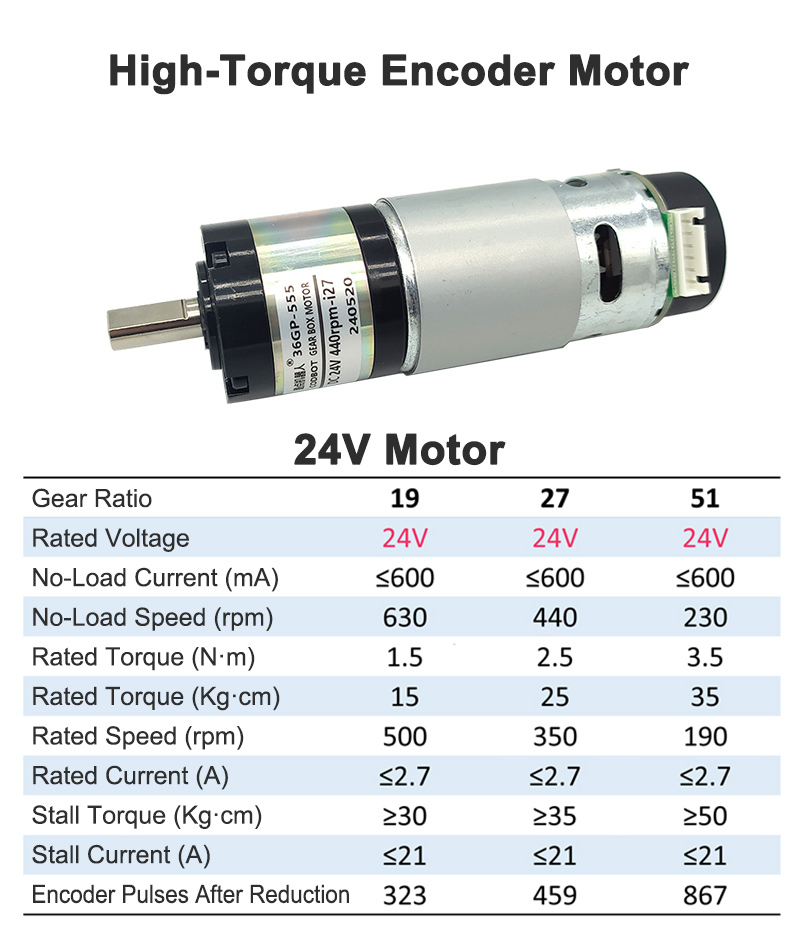

* Metal Mecanum wheels with high-torque encoder motors
* The robot chassis with 10 kg (22.05 lbs) load capacity
* The chassis is driven by high-torque motors, making it highly suitable for ROS robot development
Chassis Specifications:

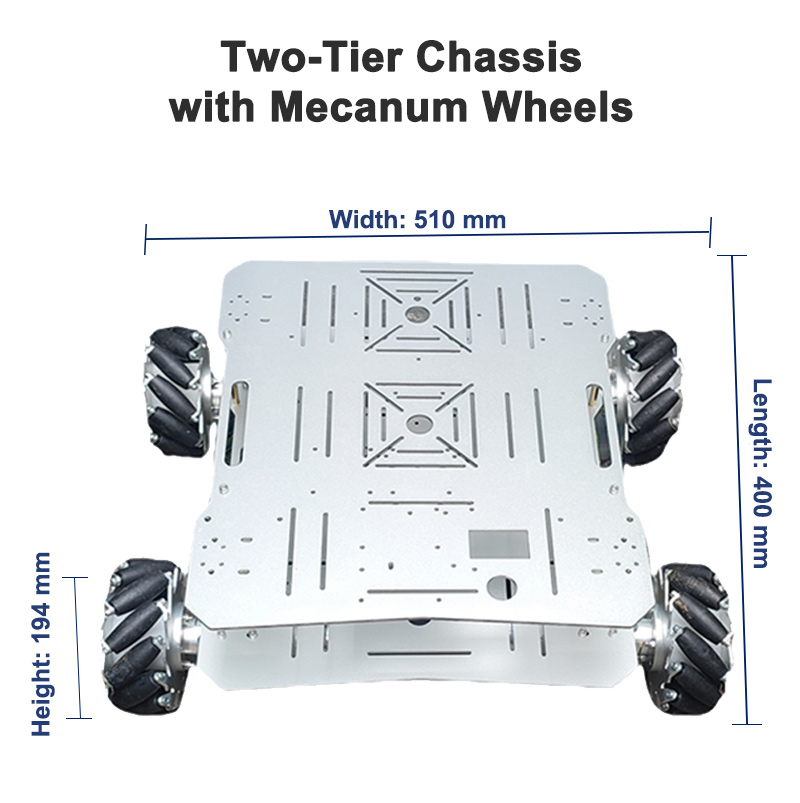

* Two-Tier Chassis Size: 400 mm × 510 mm × 194 mm (15.75 in × 20.08 in × 7.64 in) (L × W × H)

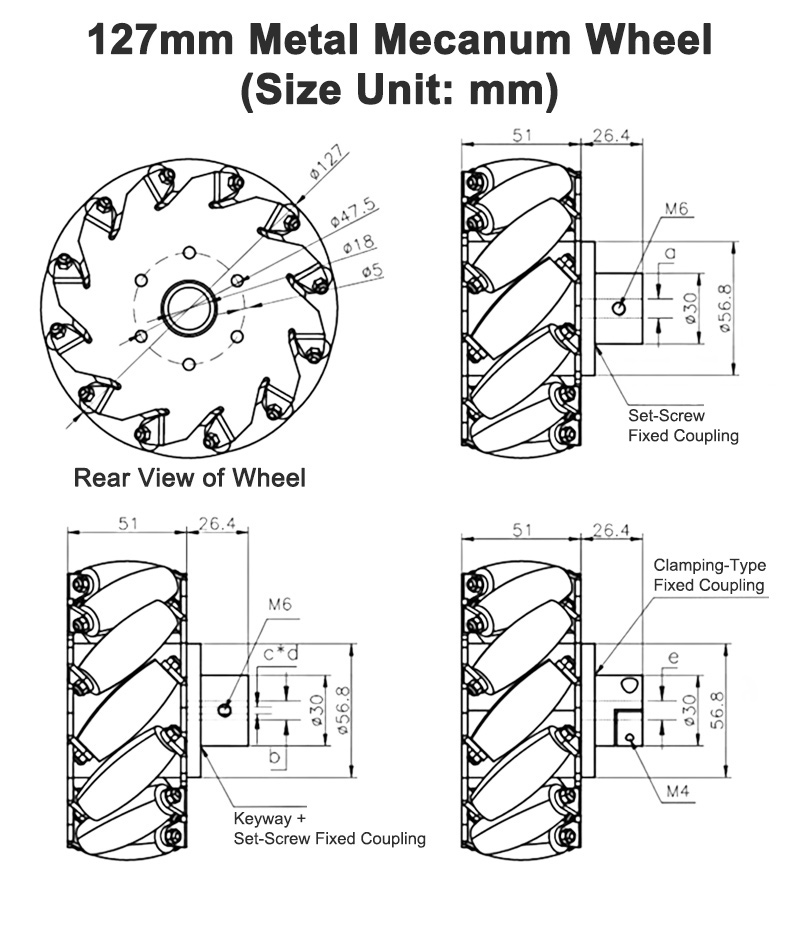

* Wheels: 127 mm (5 in) Mecanum Wheels
* Material: 3 mm (0.12 in) Thick Aluminum Alloy
* Load Capacity: 10 kg (22.05 lbs)
Packing List:
* Aluminum Alloy Chassis Plate ×2
* High-Torque Encoder Motor ×4
* Motor Mount ×4
* 127mm Metal Mecanum Wheel ×4
* Swing Suspension ×1
* Support Copper Pillars & Assorted Screws
Packaging Details:
* Volume weight: 10kg
Note:
* STM32 electronic control is not included.
