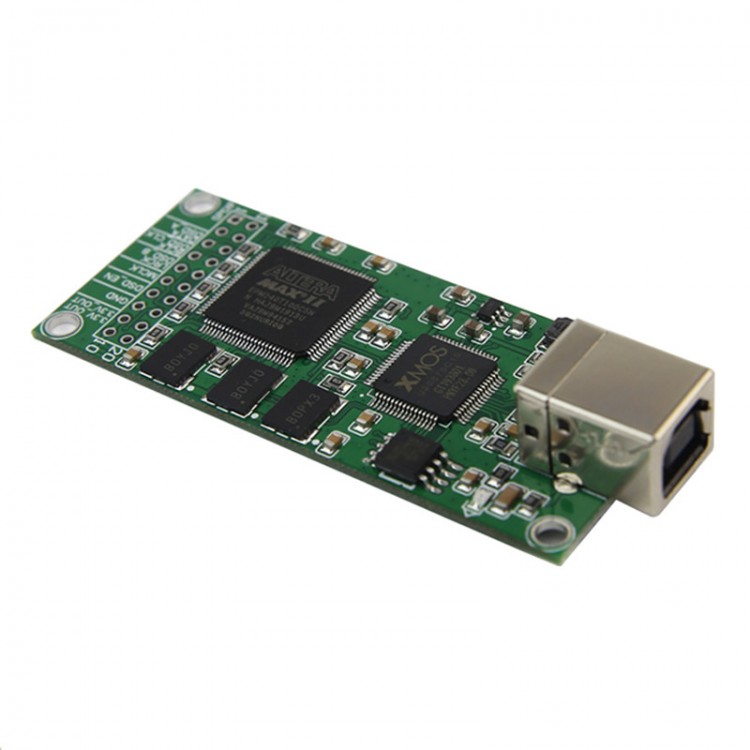

U-X1 For XMOS USB Digital Interface Green I2S SPDIF Output DSD512 Compatible With Italian Interface
Download Driver:
http://moonshadow.com.cn/download/showdownload.php?id=23
http://moonshadow.com.cn/download/showdownload.php?id=22
Introduction:
- Size: 3cm*6.9cm
- Input: USB 2.0
- Output: I2S, DSD, SPDIF
- Crystal oscillator: for SITIME silicon crystal oscillator with low jitter, low phase noise and low temperature drift
- Chip: Chip for XOMS adopts HU300 series U208 core chip, which greatly improves the processing speed; CPLD performs clock reformation and de-jitter to effectively improve the jitter of I2S clock signal
- Current: 110ma
- Others: fully compatible with Italian digital interface, and support SPDIF Dop64 output

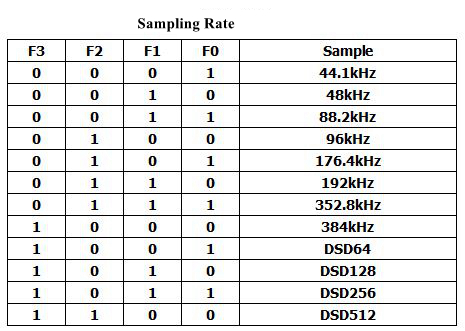

Sampling Rate:
- PCM: 16-32Bit 384K (must be driven by ASIO)
- DSD: DSD64, DSD128, DSD256, DSD512 (native DSD)
- SPDIF: PCM: 44.1-192K; DSD: DOP64 (DSD64)
Download Driver:
http://pan.baidu.com/s/1c1R0uBm (only supports DSD128)
http://www.moonshadow.com.cn/download/showdownload.php?lang=cn&id=23 (support DSD512)
Attention:
- If you need module packaging, please contact customer service.
Package Included:
- 1 x USB Digital Interface

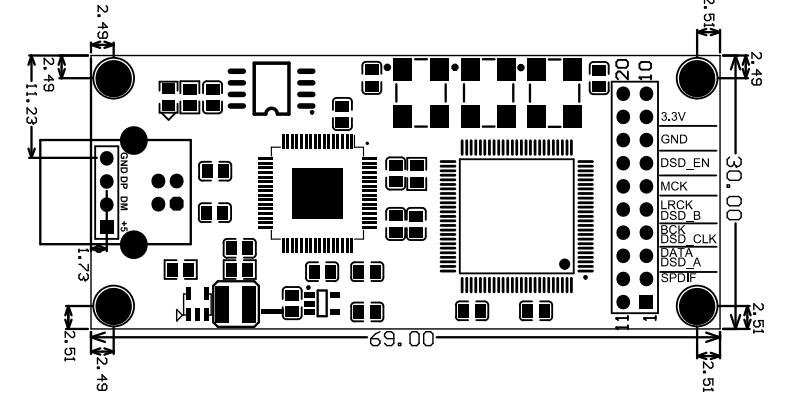

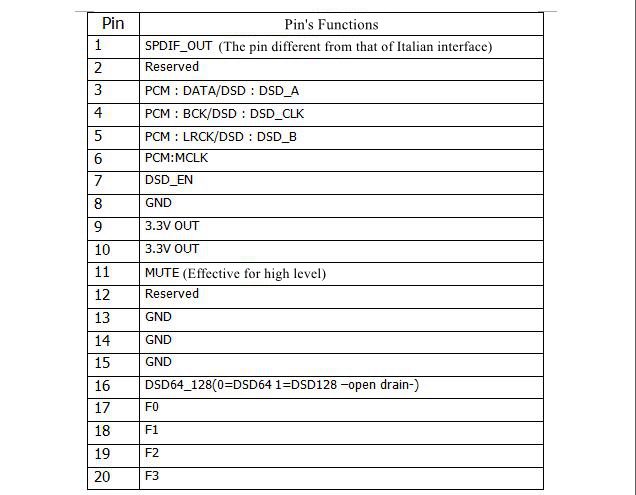

Pin Definition:
