U1 Hifi USB Digital Interface Advanced Version 0.96" OLED COAX OPT I2S/DSD Output PCM768k DSD512

Version Comparison:

The standard version uses a common active crystal oscillator, while the advanced version uses two femtosecond CCHD-575-25 series crystal oscillators. A special super linear power supply for the advanced version has been rolled out, please contact us if you need it.

Product Description:

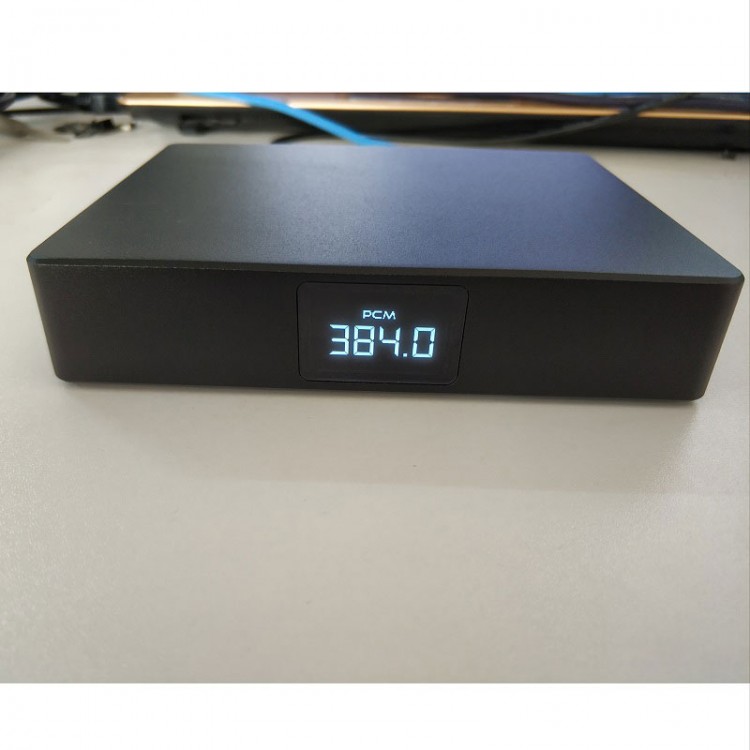

U1 is a cost-effective USB digital interface based on that for XMOS HU300. The shell is made of a whole piece of pure aluminum alloy by CNC processing, with a simple appearance and rich output interfaces. Sampling rate is displayed in real time through 0.96-inch OLED.

U1 adopts the architecture for XMOS+CPLD, self-developed clock reforming and clock management technology, and I2S output pop sound cancellation technology. It can turn on/off automatically. After a power supply is connected, the USB digital interface is connected. The digital interface is also shut down after the computer is shut down (the computer's USB port must be set to shut down and power off).

Interface Introduction:

- Input interface: USB-B
- Power interface: 5521, DC5V
- Power consumption: 5V at 200ma
- Output interface: coaxial 16-24bit, 192kHz, Dop64. Optical 16-24bit, 192kHz, Dop64. I2S 16-32bit, 768kHz, DSD64-DSD512
- Size: 125mm*100mm*25mm

Package Included:

- 1 x Digital Interface
