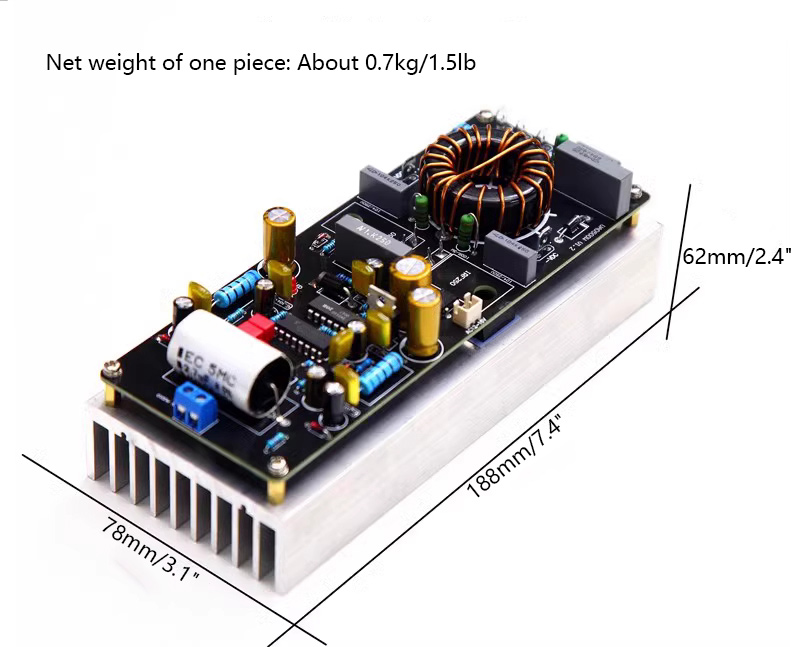

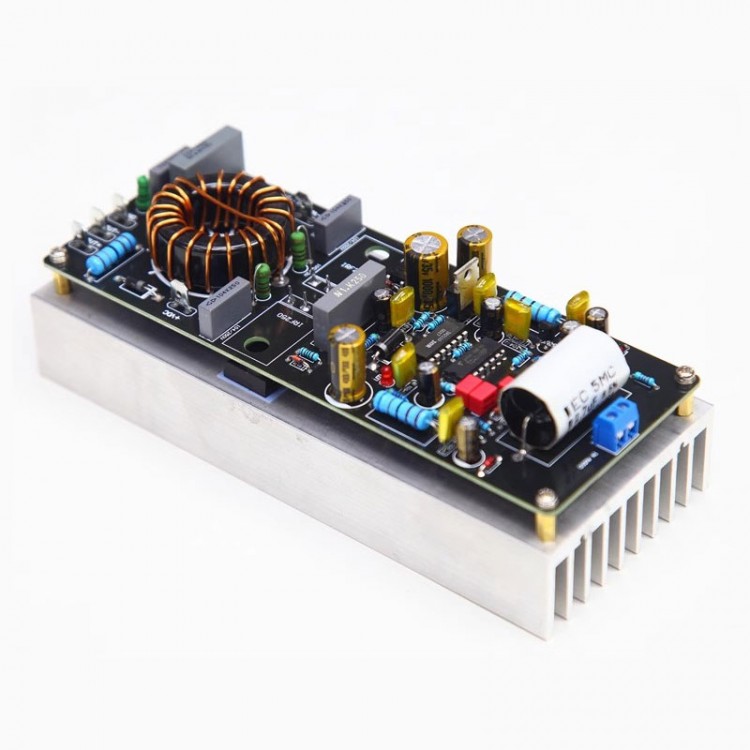

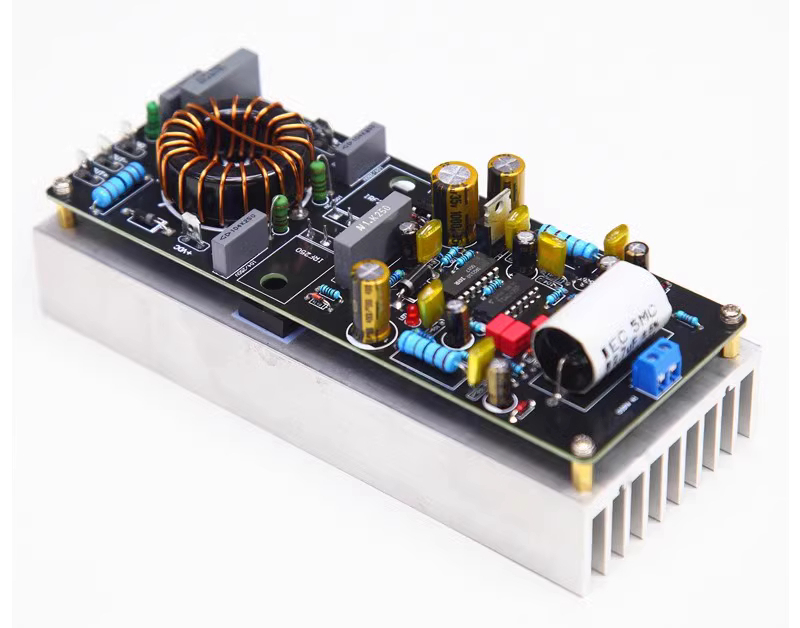

UAD500W Stage Hifi Class D Amplifier Board 500W Mono Amplifier Board Finished Power Amp Board
Features:
- UAD500W is a HiFi digital amplifier board.
- It is a 500W mono amp board.
- The new audiophile design takes the optimization of circuit tone as the priority, and uses IR2110 digital driver as the core to promote the high-power MOSFET output, ensuring high-power output. At the same time, it has more low distortion. The timbre of the MOSFET output is closer to the analog type, and the sound is very listenable.
- Digital circuit is highly energy efficient. Output power can reach 500W and the heat is not large.

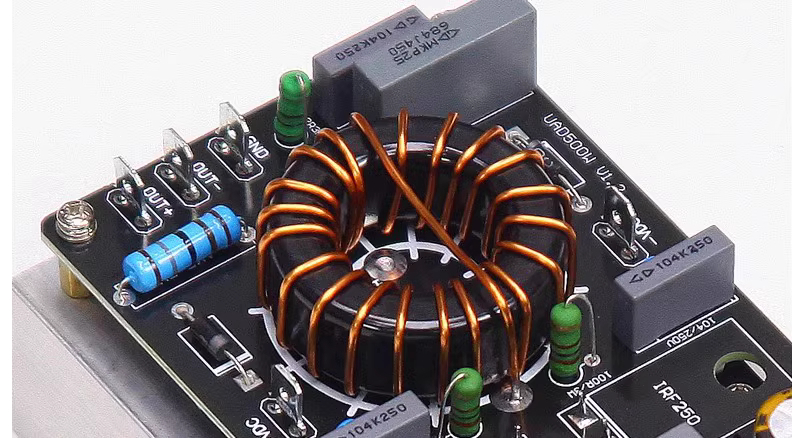

- Full high-efficiency output inductors ensure high-quality output tone.

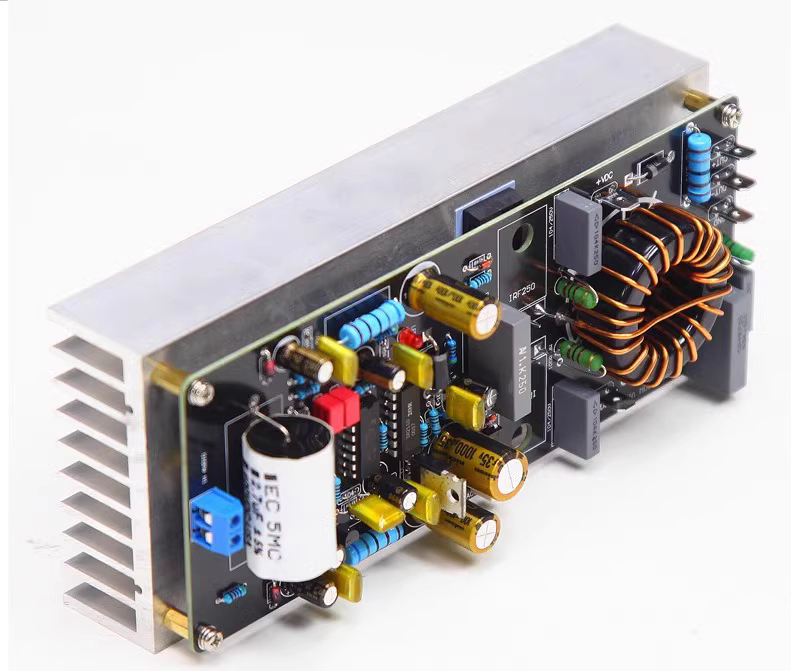

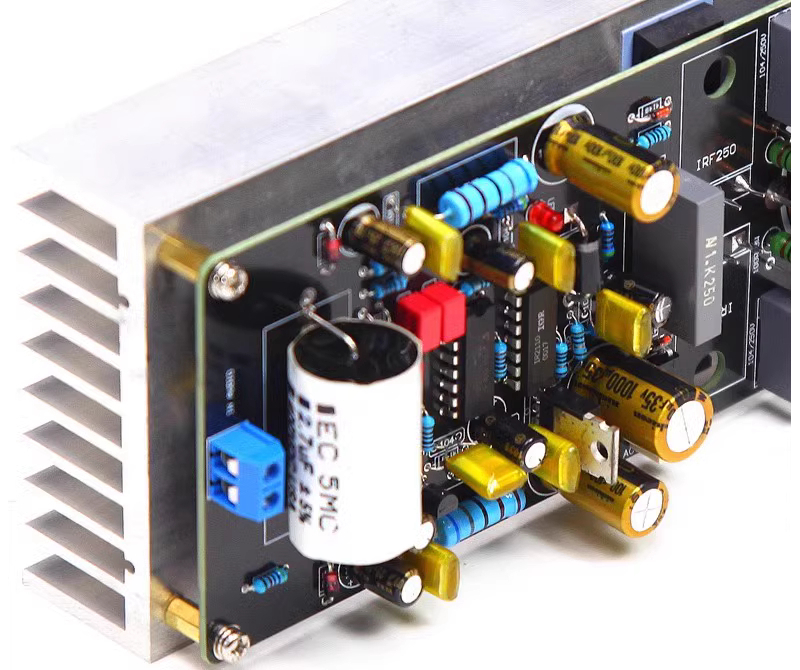

- Audiophile component architecture: With an IR2110 audiophile driver architecture. IRF250 high-power MOSFET ensures the best timbre and dynamics of the output. A large number of audiophile components make the tone more stable. The components include imported electrolytic capacitors for Nichicon, capacitors for ELNA, German red capacitors for WIMA and American coupling capacitors for EC.
- The board has passed strict tests before delivery.
Specifications:
- Item name: UAD500W digital amplifier board

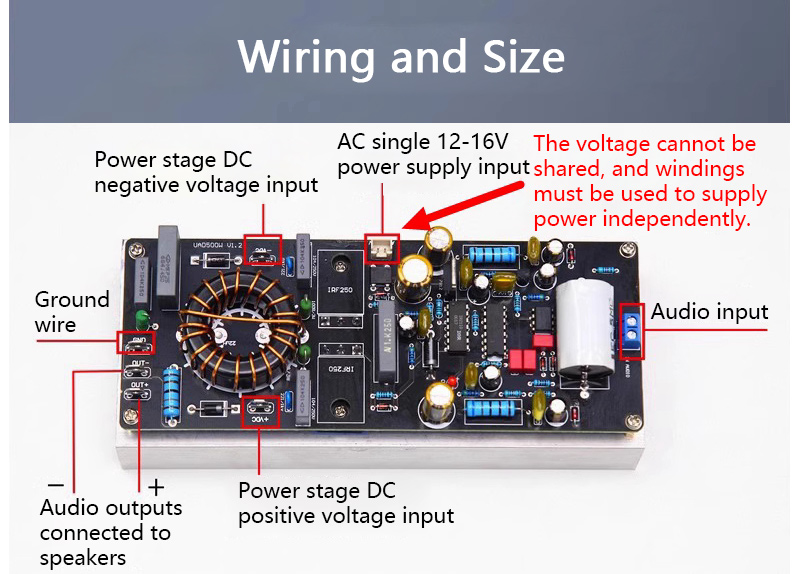

- Power supply voltage: power stage DC dual 45-90V and auxiliary voltage AC single 15-18V (users should add a filter rectifier when using toroidal transformer to supply power)
- Output power: 500W 8R
- Frequency response: 20HZ-30KHZ
- THD: ≤0.01%
Package Included:
- 1 x Amplifier board
Packaging Details:
- G.W.: 0.9kg
