RT-Thread RA8P1 Titan Board Dual Core 256GOPS High Performance AI-Accelerated MCU Development Board with Camera Module
$101.26
RT-Thread RA8P1 Titan Board Dual Core 256GOPS High Performance AI-Accelerated MCU Development Board
$94.68
XIAO ESP32-S3 & Wio-SX1262 Kit Micro-controller Development Board Support WiFi/Bluetooth/LoRa for Meshtastic
$16.47
Uart TTL to Wifi Module SMT HLK-RM10 RT5350F Module with 2Db Antenna Startkit
Introduction:
HLK-RM10 is a new low-cost embedded UART-ETH-WIFI module (serial port - Ethernet - Wireless network) developed by Shenzhen Hi-Link Electronic Technology co., Ltd
This product is an embedded module based on the universal serial interface network standard, built-in TCP / IP protocol stack, enabling the user serial port, Ethernet, wireless network (wifi) interface between the conversions.
Through the HLK-RM10 module, the traditional serial devices do not need to change any configuration; data can be transmitted through the Internet network. Provide a quick solution for the user’s serial devices to transfer data via Ethernet.
Application
- UART WiFi module wireless Led control; wireless power supply switch
- TV, set-top boxes, wireless audio (DLNA AirPlay)
- Smart home solutions, remote control
- Gateway;Wireless router
Pins:
| N.o | Function | Direction | Introduction |
| 1 | 3.3VD | Power In | 3.3V input |
| 2 | GND | GND | ground |
| 3 | RXD | I | Serial port 2 RXD |
| 4 | RTS | I/O | Serial port 2 RTS |
| 5 | TXD | O | Serial port 2 TXD |
| 6 | WPS/RST | I | WPS button / restore the factory value |
| 7 | CTS | I/O | Serial port 2 CTS |
| 8 | UART_TX | O | Serial port 1 TXD |
| 9 | UART_RX | I | Serial port 1 RXD |
| 10 | LINK1 | I/O | Net 1 connection indicator (active low Level) |
| 11 | RXIP1 | A | Net 1 TX-P |
| 12 | RXIN1 | A | Net 1 RX-N |
| 13 | TXOP1 | A | Net 1 TX-P |
| 14 | TXON1 | A | Net 1 TX-N |
| 15 | TXON2 | A | Net 2 TX-N |
| 16 | TXOP2 | A | Net 2 TX-P |
| 17 | RXIP2 | A | Net 2 TX-P |
| 18 | RXIN2 | A | Net 2 TX-N |
| 19 | I2C_CLK | I/O | I2S clock (reserved) |
| 20 | I2C_SD | I/O | I2S data (reserved) |
| 21 | ES/RST | I | Exit through the pass / restore the factory value |
| 22 | USB_M | I/O | USB signal |
| 23 | USB_P | I/O | USB signal + |
| 24 | LINK2 | I/O | Net 2 connection indicator (active low Level) |
| 25 | WLAN_LED | O | WIFI boot indicator (active high Level |
| 26 | VO1.8 | PowerOut | 1.8V output |
| 27 | GND | GND | Power source |
| 28 | 3.3VD | Power In | 3.3V input |

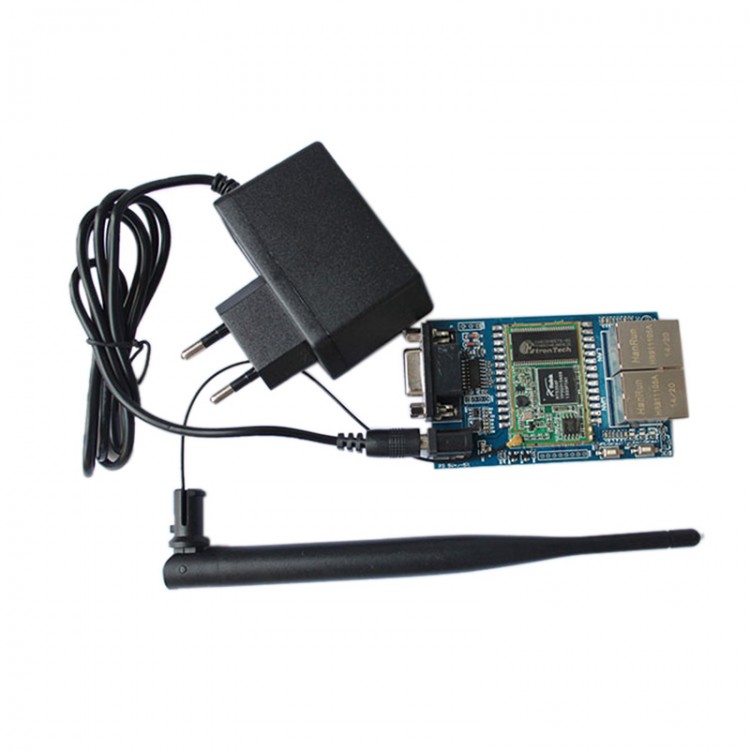

Package included:
- 1 x HLK-RM10 module
- 5V 1APower supply
- Antenna
- Cable
- Test board
