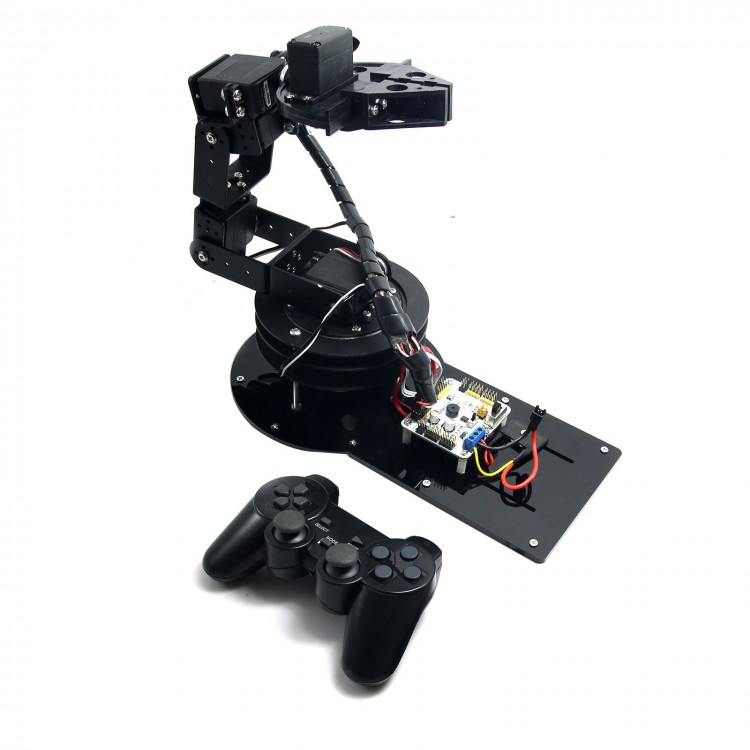

Unassembled 6 DOF Full Set Mechanical Arm with Clamp Claw Rotating Mechanical Robot with Servos & Controller

Tags: Mechanical Arm Servos

Availability: In stock, usually dispatched in 1 business day

  • Price:$185.80
  • Price in reward points: 1858 Reward Points: 19
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $182.08 $178.37 $172.79 $165.36 Contact US
Quantity:

Unassembled 6 DOF Full Set Mechanical Arm with Clamp Claw Rotating Mechanical Robot with Servos & Controller

This is unassembled,  spare parts. The battery is not included. You have to buy it.

Description:
- The code has been written in the control board
- Super clamp
- Large bearing rotating base
- Large capacity battery (7.4V 1500mah)
- This is the spare parts. It needs to be assembled yourself.
- Apply LD-1501MG servo and LDX-335MG Servo with strong torque, high temperature resistance, heat resistance and long life.

Contro system:
- The code has been written in the control board.
- Online debugging. According to the upper computer software, the graphical programming can be done.
- Offline motion. When the upper computer software is done, clicjk the "Download" to the control board. When select the corresponding action mode, the arm can bre off the computer to move itself
- P2P Handle remote control.
- Reserved serial port to communication interface and can be TTL level seral communication with other SCM.

Features:
- Rotation angle: 180 degrees
- Radius of gyration: 355mm
- Height: 448mm (holder closed)
- Material: Aluminium alloy
- Clamp Max open is 55mm
- Holder of the widest distance: 98mm

Package includes:
- 1 x Aluminium Robot Clamp Claw
- 5 x LD-1501MG
- 1 x LDX-335MG
- 3 x Servo extension line
- 1 x Professional controller board (Notice: The controller would be upgraded and made something different with the one that shown in the picture)
- 1 x PS2 wireless handle
- 1 x USB cable
