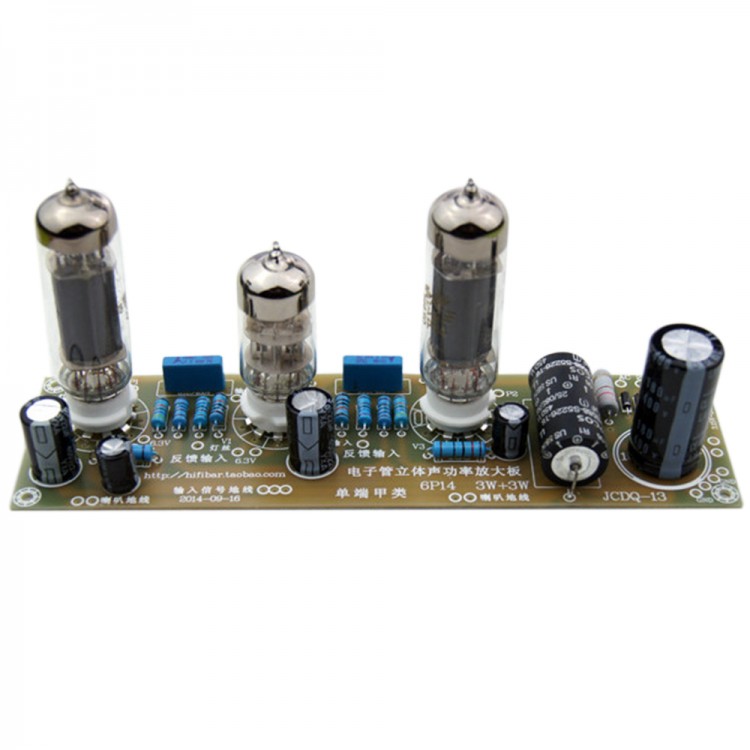

Unassembled DJ002 6N1+6P14 3.5Wx2 Stereo Amplifier Board Kit with Electron Tube
Parameters:
- Output power: 3.5W+3.5W/8 Ohm
- Frequency response: 30-40Khz (+-1db)
- Input sensitivity: 800mV
- The residual noise - < 0.7mVac (with choke)
- Working voltage: AC-230V/200MA+3.15V-0-3.15V/3A
- Power supply: 70W
- Input impedance: 10K Ohm
- Input impedance: 4,8Ohm (Z11-EI57*30)
- Dimensions: 185mm (W) X58mm (d) X70mm (H) - containing tubes

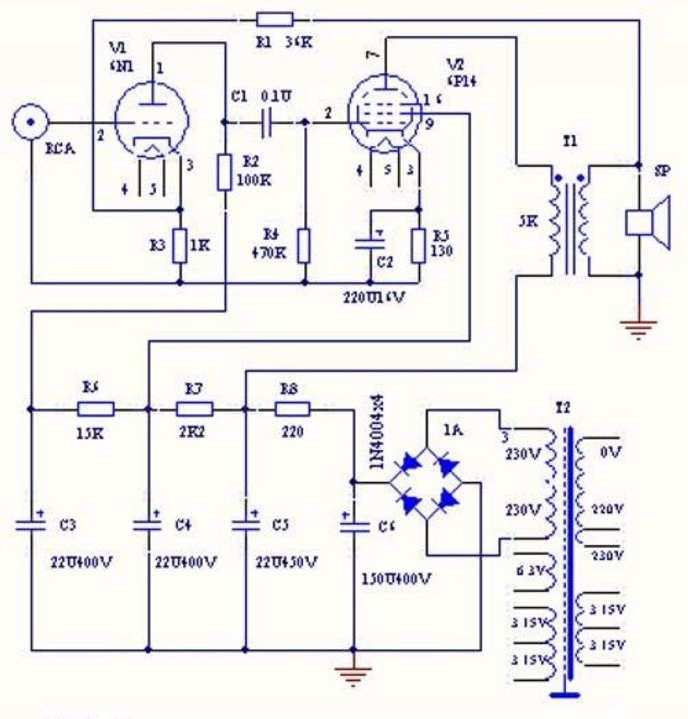

Schematic diagram:
Note: No copper pillar
Package included:
- 1 x Amplifier Board
