Unassembled Music Hall Luxury Tube Preamp Phono Circuit Board Kit KONDO(AUDIONOTE)M77 for DIY
Description:
- This circuit Compatible with preamp and phono,it can control the phono part independently
- It is unassmebled
- Recommend tubes :6X4(ez90) 1pc +12AY7(6072) 8PCS( Not includeded in the parcel )
- The transformer and other components' parameter pls read the below circuit
- Adopting 2.4mm double gold-plated PCB ,most resistor is original DALE and Philips
- Signal channel Using TRW and GOOD-ALL Bakelite coupling capacitance,gold-plated tube socket
- The phono function can be closed independently,4 way to relay to switch the signal,Allowing the playing method which add the choke.
- PCB size :220*290*2.4mm, the board already marked the welding size of screw hole .
- The front pannel with 3 knobs ,the standard Size of 430mm*70mm( width *inner height ) chassis suit for this board
Pls Note :
This Product Designed For The Professional Hifi Player Who can understand the Below Circuit ,The Assembled Board will be Tested Well Before Sending ,
For The Technical Level is Different ,The Unsuccessful Diy Making is Beyong The Scope Of Our Warranty ,

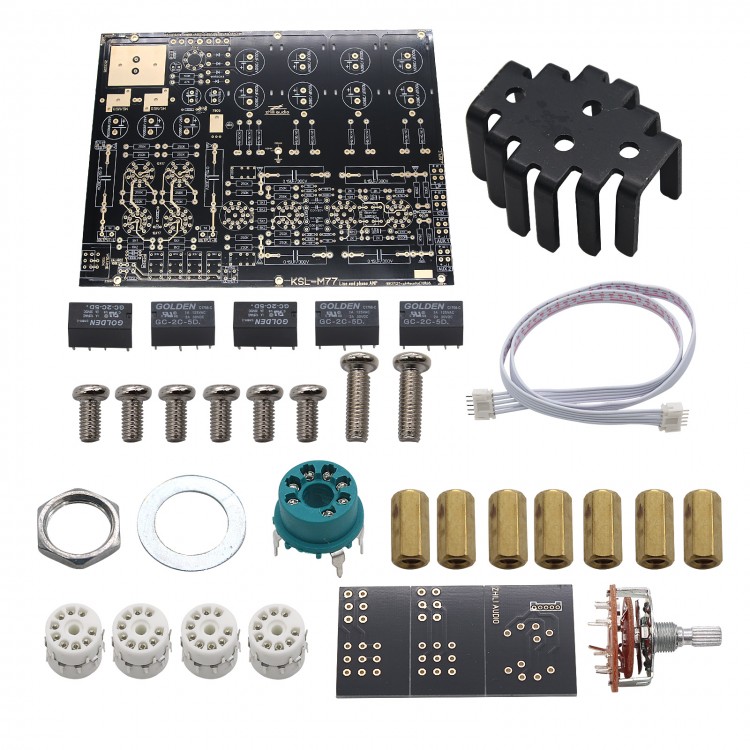

Package included:
- 1 x PCB Board
- 9 x Socket
- 6 x Relay
