UNI-T UPO7204L 2GHz 10GSa/s Compact 4-Channel Oscilloscope Digital Ultra Phosphor Oscilloscope

UNI-T UPO7204L 2GHz 10GSa/s Compact 4-Channel Oscilloscope Digital Ultra Phosphor Oscilloscope

Description of UPO7000L Series:
The UPO7000L Series Compact Digital Phosphor Oscilloscope features a compact chassis design and a slim, lightweight body. With a 1U height, it is ideal for multi-unit system integration, high-density rack packaging, and remote system control. It supports multi-unit synchronized triggering, expandable up to 128 oscilloscopes. Each unit integrates 4 analog channels, 1 external trigger channel, and 1 function/arbitrary waveform generator channel. The unit comes with foot pads and a flat design for easy stacking.

The UPO7000L is based on the MSO7000X Series platform, making the operation familiar and easy to transition to. By connecting an external touch display, you can enjoy smooth gesture control similar to the MSO7000X. Multi-unit integration includes rack-mount kits, ready for out-of-the-box installation. No matter the application scenario, the UPO7000L can handle it with ease.

Advantages:
* Number of Analog Channels: 4
* Maximum Real-Time Sampling Rate: 10GSa/s
* Maximum Waveform Acquisition Rate: 2,000,000wfms/s
* Optional Signal Source: 60MHz
* Analog Bandwidth: 2GHz/1GHz
* Maximum Memory Depth: 1Gpts
* Digital Channels: Without

Features:
Compact Oscilloscope

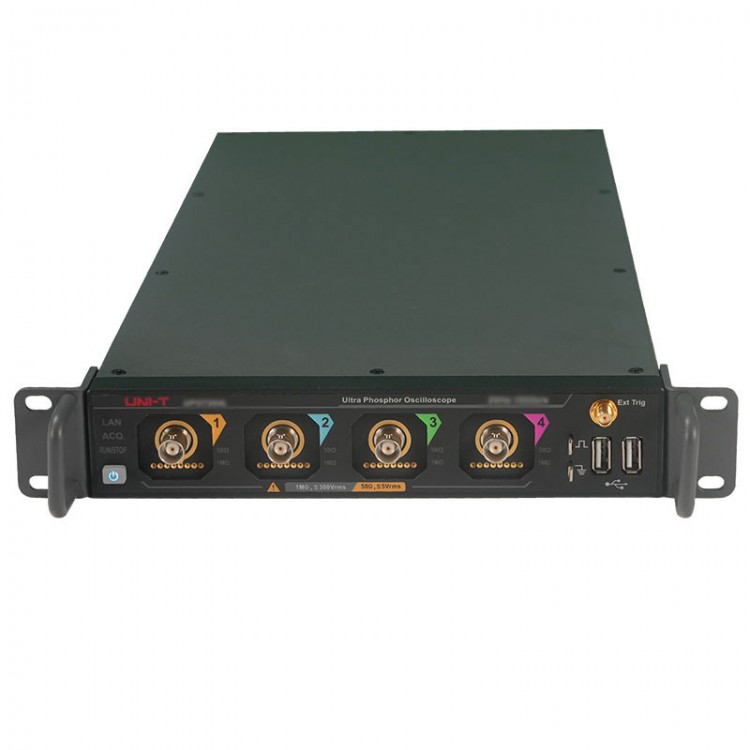

* The UPO7000L features a compact chassis design and a slim body, with overall dimensions of only 214mm × 478mm × 43mm. It is based on the MSO7000X Series platform, making the operation familiar and easy to transition. If your R&D team uses the MSO7000X, the UPO7000L will be the best choice for your production line.

Multi-Unit Integration, Efficient Rack Utilization
* With a standard 1U height design, it is ideal for multi-unit system integration and high-density rack packaging. Two units can be installed side by side in a standard 1U rack, effectively maximizing rack space.

Low Trigger Latency, Multi-Unit Synchronization Solution
* The UPO7000L series provides a clock synchronization interface, auxiliary output interface, and external trigger channel. External trigger jitter between instruments is ≤200ps RMS, effectively ensuring synchronization accuracy. With Gigabit Ethernet support, SCPI response speed is deeply optimized, improving data link stability and transmission efficiency. For users requiring multi-channel integrated solutions, we offer a synchronized multi-unit solution, supporting simultaneous data acquisition for up to 128 devices, expandable to a maximum of 512 channels.

External Display and Control Devices
* The rear panel provides an HDMI-compatible interface for connecting an external display. Both the front and rear panels provide two USB 2.0 Host and two USB 3.0 Host ports, supporting Bluetooth mice, keyboards, and other control devices, easily transforming the oscilloscope into a personal workstation.

WebServer Remote Control
* The UPO7000L features two Gigabit Ethernet ports on the rear panel. You can connect the device to your local network via wired or wireless connections. Simply enter the instrument's IP address in a browser to control and analyze the oscilloscope on your mobile device or PC. The WebServer also supports online SCPI, allows direct waveform data export, online viewing of manuals, and more. As long as a network is available, you can use all oscilloscope functions comfortably from any position.

Patented UltraAcq® Technology
* The UPO7000L uses UNI-T's proprietary UltraAcq® technology to increase the real-time waveform acquisition rate to over 600,000wfms/s. Paired with the new Ultra Phosphor 3.0 super phosphor display technology, transient signals are collected with exceptional clarity.

Advanced Analysis Features
* Power Analysis 6+
* Jitter Analysis and Eye Diagram
* Protocol Analysis 11+
* Embedded Matlab Programming

Packing List:
* 1 × Set of Oscilloscope

Packaging Details:
* Weight: 5kg
