| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $66.11 | $64.76 | $62.74 | $60.04 | Contact US |
QLeTEK KL500A 100V 500A Bluetooth Smart Battery Monitor Coulometer Voltmeter Voltage Current Meter
$59.85
QLeTEK KL300A 100V 300A Bluetooth Smart Battery Monitor Coulometer Voltmeter Voltage Current Meter
$49.96
QLeTEK KL150A 100V 150A Bluetooth Smart Battery Monitor Coulometer Voltmeter Voltage Current Meter
$43.95

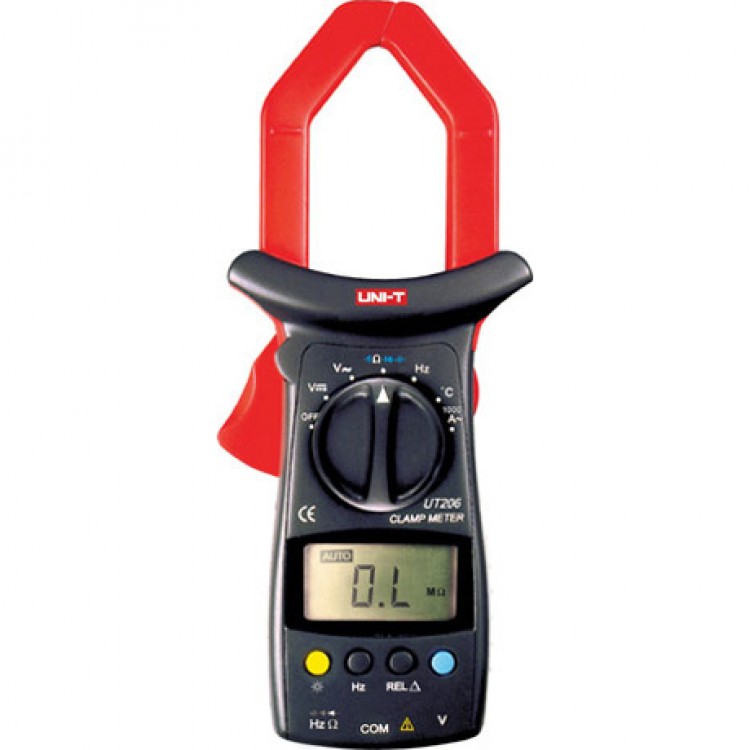

SPECIFICATIONS
| Basic Functions | Range | Best Accuracy |
|---|---|---|
| DC Voltage | 400mV/4V/40V/400V/600V |  (0.8%+1) |
| AC Voltage | 4V/40V/400V/600V | (1.2%+5) |
| AC Current | 400A/1000A | (2%+5) |
| Resistance | 400W/4kW/40kW/400kW/4MW/40MW | (1%+2) |
| Capacitance | 4nF/40nF/400nF/4mF/40mF/200mF | (3%+5) |
| Temperture(oC) | -40oC~1000oC | (1%+3) |
| Frequency | 10Hz ~ 10MHz | (0.1%+3) |
| Duty Cycle | 0.1% - 99.9% |  |
| Special Functions | ||
| Auto Ranging | | |
| Diode | | |
| Continuity Buzzer | | |
| Relative Mode | | |
| Data Hold | | |
| Display Backlight | | |
| Full Icon Display | | |
| Sleep Mode | | |
| Jaw Opening Light | | |
| Max. Jaw Size | 40mm | |
| Low Battery Display | | |
| Input Impedance for DC Voltage Measurement | Around 10MW | |
| Max. Display | 3999 | |
GENERAL CHARACTERISTICS
| Power | 9V Battery (6F22), 3V Battery (AAAx2) |
| LCD Size | 52 x 27mm |
| Product Colour | Body-Grey, Jaw-Red |
| Product Net Weight | 540g (excluding tool box) |
| Product Size | 260 x 90 x 45mm |
| Standard Accessories | Test Lead, English Manual, Batteries, Point Contact Temperature Probe, Tool Box |
| Optional Accessories* | Clip-On Test Lead Light(UT-TL), Built-In Test Lead Light(UT-L1), Built-In Test Lead Light Plus(UT-L2), Carrying Bag |
| Standard Packing | Gift Box |
| Standard Quantity Per Carton | 20 pcs |
| Standard Carton Measurement | 591 x 370 x 474 mm (0.104 CBM Per Standard Carton) |
| Standard Carton Gross Weight | 27.6kg |
