| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $239.02 | $234.14 | $226.83 | $217.07 | Contact US |
SUP-C703S Signal Generator & Process Calibrator – mA, V, Ω, RTD, Thermocouple Output & Measurement
$156.44
6000A 20µH Air Core Inductor for Dual Pulse Testing and High-Performance Electrical Experiments
$86.76
DP8000 Max IGBT Pulse Generator with Internally Integrated IGBT Driver (Air Core Inductor Included)
$384.16

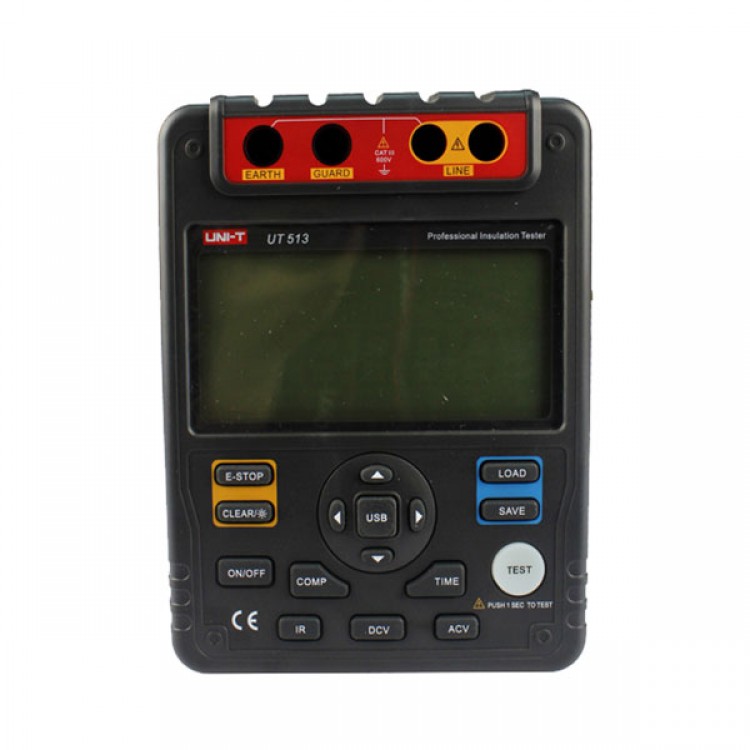

UNI-T UT513 Digital Insulation Resistance Tester Meter Megger 1M-1000G OHM 5000V
| Basic Functions | Range | Best Accuracy | |||
|---|---|---|---|---|---|
| Insulation Resistance |
500kW ~ 10GW 1MW*~1000GW |
 (5%+5) |
|||
| Low Resistance | 1000W |
(1%+3) |
|||
| Testing Voltage |
100V/250V/500V/1000V 1000V/1500V/2500V/5000V |
0~20% | |||
| DC Voltage | 1000V |
(1%+3) |
|||
| AC Voltage | 750V |
(1.5%+3) |
|||
| Special Functions | |||||
| Auto Ranging |
 |
||||
| Short Circuit Current | <1.3mA | ||||
| Data Logging | 18 | ||||
| Data Recall |
|
||||
| Sleep Mode |
|
||||
| Polarization index (PI) |
|
||||
| Dielectric Absorption(DAR) |
|
||||
| Timer | Within 30 minutes |
|
|||
| Compare |
|
||||
| Battery Display |
|
||||
| Display Backlight | EL |
|
|||
|
Over Range and High |
|
||||
| USB |
|
||||
|
Max. Display Analogue Bar Graph |
9999 |
|
|||
GENERAL CHARACTERISTICS
| Power |
UT511-1.5V Battery (R14) x 8 UT513 -1.5V Alkaline Battery (LR14) x 8 |
| LCD Size | 123 mm x 58 mm |
| Product Color | Grey |
| Product Net Weight | 2kg |
| Product Size | 202 x 155 x 94 mm |
| Standard Accessories |
UT511 - A pair of one plug test lead to one alligator clip, A pair of two plugs test lead to one alligator clip, Batteries, English Manual, Tool Box. UT513 - A pair of one plug test lead to one alligator clip, A pair of two plugs test lead to one alligator clip, Batteries, English Manual, Tool Box, USB Interfac |
| Optional Accessories* | Power Adapter |
| Standard Individual Packing | Gift Box |
| Standard Quantity Per Carton | 5 pcs |
| Standard Carton Measurement | 600 x 350 x 320 mm (0.067 CBM Per Standard |
| Standard Carton Gross Weight | Around 13kg |
