• Uni-T UT803   Digital Bench-Type Autoranging True RMS Multimeters

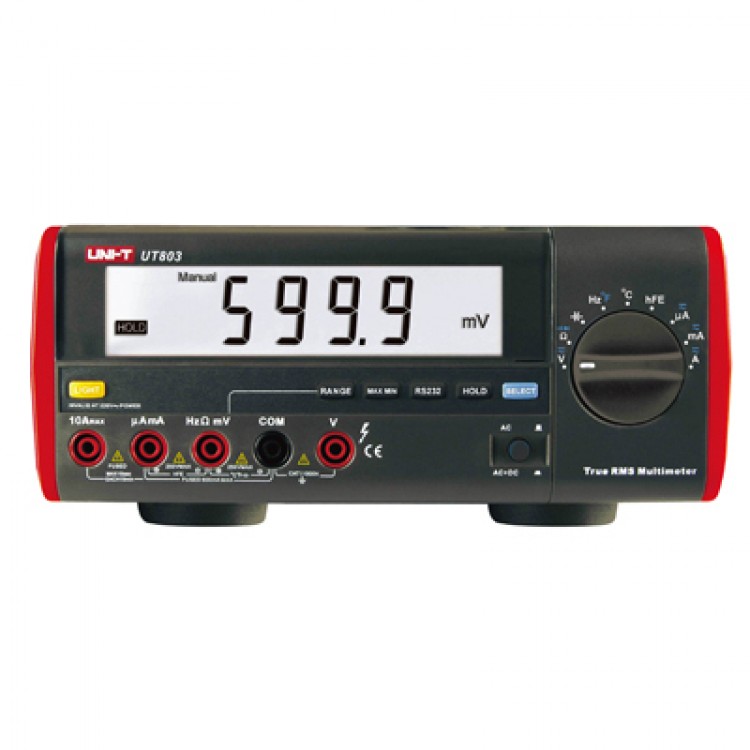

Uni-T UT803 Digital Bench-Type Autoranging True RMS Multimeters

Availability: Out Of Stock

  • Price:$206.15
  • Price in reward points: 2062 Reward Points: 21
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $202.03 $197.90 $191.72 $183.47 Contact US
Quantity:
SPECIFICATIONS
Basic Functions Range Best Accuracy
DC Voltage 600mV/6V/60V/600V/1000V (0.3%+2)
AC Voltage 600mV/6V/60V/600V/1000V (0.6%+5)
DC Current 600µA/6000µA/60mA/600mA/10A (0.5%+3)
AC Current 600µA/6000µA/60mA/600mA/10A (1%+5)
Resistance 600W/6kW/60kW/600kW/6MW/60MW (0.5%+2)
Capacitance 6nF/60nF/600nF/6µF/60µF/600µF/6mF (2%+5)
Temperature (oC) -40oC ~ 1000oC (1%+3)
Temperature (oF) -40oF ~ 1832oF (1.5%+5)
Frequency 6kHz/60kHz/600kHz/6MHz/60MHz (0.1%+3)
Special Functions
Fused 10A Range
Auto Ranging
Voltage & Current :
AC+DC Measurement

AC Voltage Frequency 100kHz True RMS
Diode
Continuity Buzzer
Transistor
Max/Min Mode
Data Hold
RS232C
USB
Display Backlight
Full Icon Display
Sleep Mode
Low Battery Display
Input Impedance for
DC Voltage Measurement
600mV Range : 3GW
All Other Ranges : 10MW


Max. Display 5999

GENERAL CHARACTERISTICS
Power AC220V/50Hz or 1.5V Battery x 6 (R20)
LCD Size 28 x 128 mm
Product Colour Red and Grey
Product Net Weight Around 2kg (Accessories Net Weight : 0.4kg)
Product Size 105 x 240 x 310mm
Standard Accessories Test Lead, AC220V Power Cord,English Manual, Point Contact
Temperature Probe, Alligator Clip,Multi-Purpose Socket,
RS232C Interface Cable,USB Interface Cable, Software
Optional Accessories* 1.5V Battery x 6 (R20)
Standard Individual Packing White Box
Standard Quantity Per Carton 4 pcs
Standard Carton Measurement 680 x 370 x 320mm
(0.081CBM Per Standard Carton)
Standard Carton Gross Weight 10.07kg
