UNI-T UT8806 6½-digit Auto-Ranging Desktop Multimeter Digital Multimeter with 4.3" LCD & 32GB Flash

UNI-T UT8806 6½-digit Auto-Ranging Desktop Multimeter Digital Multimeter with 4.3" LCD &  32GB Flash

Description:
The UT8806 is a 6½-digit dual-display digital multimeter. It offers outstanding reading speed and accuracy, designed to meet customer requirements for multi-functionality, high precision, and automatic measurement.

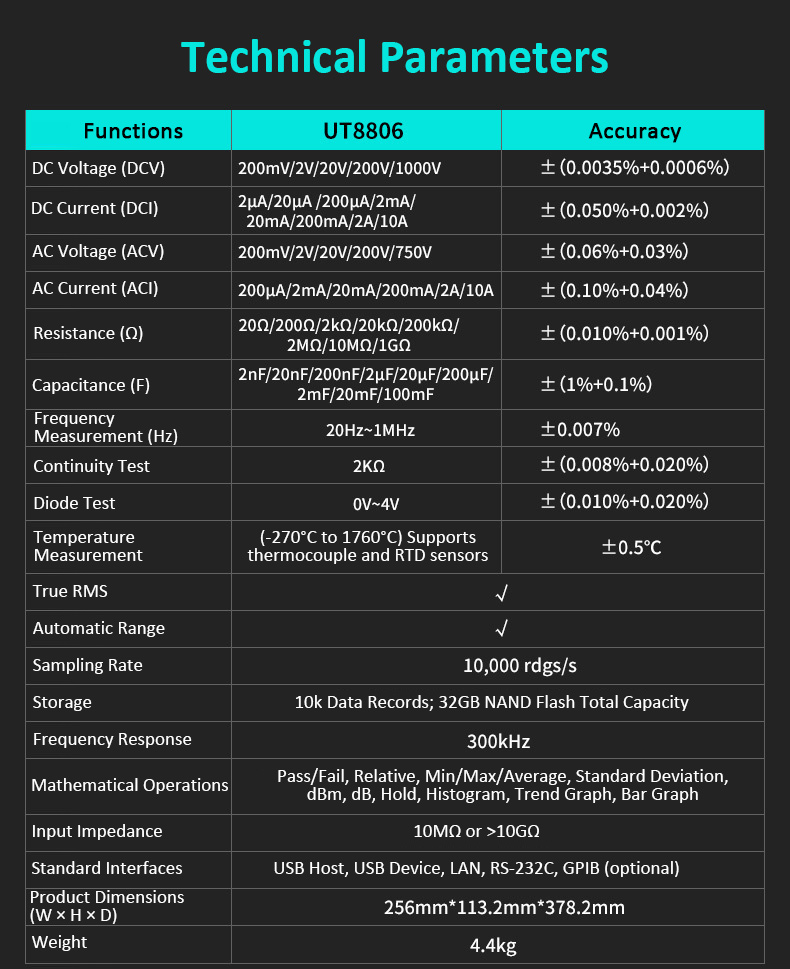

Basic Measurement Functions:
* DC Voltage Measurement: 200mV, 2V, 20V, 200V, 1000V
* DC Current Measurement: 2μA, 20μA, 200μA, 2mA, 20mA, 200mA, 2A, 10A
* AC Voltage Measurement (RMS): 200mV, 2V, 20V, 200V, 750V
* AC Current Measurement (RMS): 200μA, 2mA, 20mA, 200mA, 2A, 10A
* Resistance Measurement (2-wire/4-wire): 20Ω, 200Ω, 2kΩ, 20kΩ, 200kΩ, 2MΩ, 10MΩ, 100MΩ, 1GΩ
* Capacitance Measurement: 2nF, 20nF, 200nF, 2μF, 20μF, 200μF, 2mF, 20mF, 100mF
* Continuity Test: Fixed 2kΩ
* Diode Test: 0V to 4V
* Frequency Test: 3Hz to 1MHz
* Period Measurement: 1μs to 0.05s
* Temperature Measurement: Supports thermocouple and RTD sensors

Mathematical Operations:
* Maximum, minimum, average, standard deviation, relative measurement, bar chart, histogram, trend graph, dB/dBm, Pass/Fail, etc.

User-Friendly Design:
* Graphical user interface for simple and convenient operation; built-in help system for easy information access; supports Chinese and English menus; dual-window display; supports USB drive and local storage for easy file management.

Features:
* 4.3" TFT-LCD with a display resolution of 480 × 272
* 6½-digit readings
* Measurement speed up to 10,000rdgs/s
* True RMS AC voltage and current measurement
* 32GB NAND Flash total capacity: provides large storage for instrument settings and data files
* Built-in thermocouple cold junction compensation
* Supports standard SCPI remote control commands, upper-computer software, and is compatible with the latest mainstream multimeter command sets
* Supports dual display, Chinese & English menus, and built-in help system for easy information access

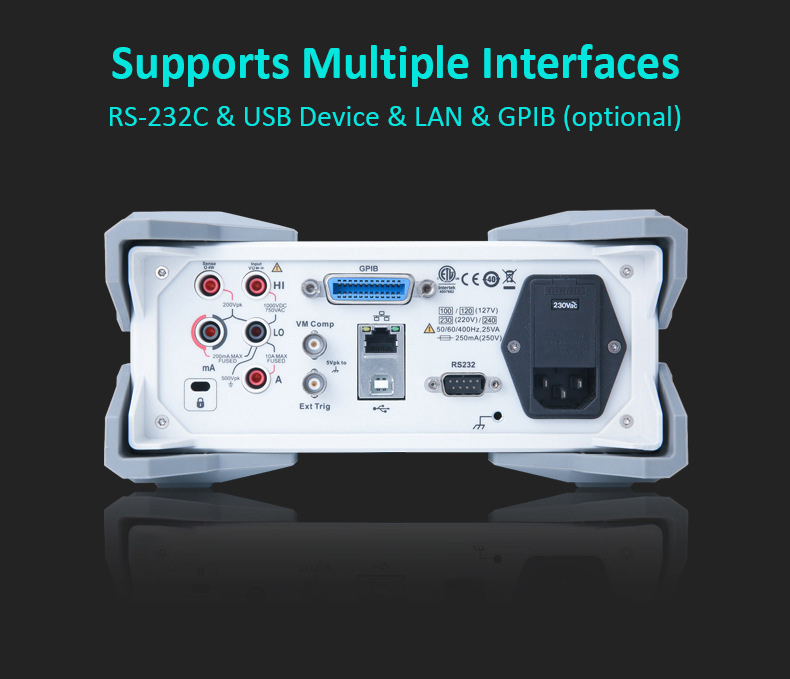

* Interface configuration: USB Host, USB Device, LAN, RS-232C, GPIB (optional)
* Measurement data and settings can be imported or exported via VXI-11, USBTMC, or USB drive, facilitating modification, viewing, and backup

Application Fields:
* Scientific Research and Education
* Research and Development
* Testing and Maintenance

Packing List:
* 1 x Desktop Multimeter
* 2 x Test Leads
* 2 x Alligator Clip Cables
* 1 x Temperature Probe
* 1 x Power Cable
* 1 x Download Guide
* 1 x Certificate of Conformity
* 1 x RS-232 Communication Cable
* 1 x USB Data Cable

Packaging Details:
* Weight: 5kg
