| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $431.17 | $422.37 | $409.17 | $391.57 | Contact US |
WT802 High-Precision Electric Parameter Tester 3-600V AC DC Digital Power Meter w/ RS232/RS485 Port
$304.74
WT811 3-600V Harmonic-Type Electric Parameter Tester AC Digital Power Meter with RS232/RS485 Port
$304.74
HZK 3-400V AC DC Power Meter Digital Power Meter (PZ9902U 100mA-100A AC/DC with Alarm and USB Port)
$464.65
UNI-T UTE9802+ AC/DC 20A T-RMS Digital Power Meter Electric Parameter Tester with VA Segment LCD

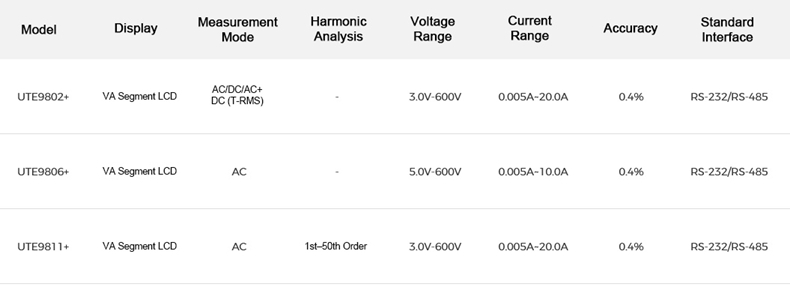

Description of UTE9800+ Series:
Digital Power Meter integrates multiple functions including voltage, current, power, power factor, and frequency measurement. The UTE9800+ Series Electric Parameter Tester uses a high-speed CPU for data processing. The instrument features comprehensive functions, excellent performance, and simple operation. It is suitable for high-speed measurements in production environments, as well as for laboratory and R&D testing. It is widely used in production, testing, evaluation, and scientific research applications.
Features of UTE9800+ Series:
* New average measurement function
* Multi-window simultaneous display, with configurable display update rate
* Maximum continuous input allowed: Voltage 700V/Current 24A, with automatic/manual switching of voltage and current ranges
* Harmonic analysis up to 50th order (UTE9811+ only)
* Measurement parameters include active power, apparent power, voltage, current, frequency, voltage/current peak values, etc. (UTE9806+ only)

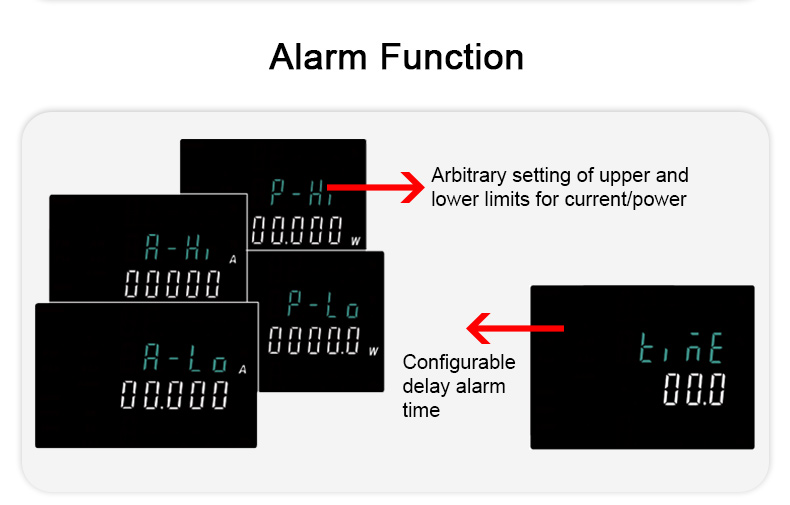

* Freely set upper and lower limits for current and power, automatically detect if measured values exceed limits, and configurable delay alarm
* Supports RS-232 and RS-485 serial communication interfaces, compatible with SCPI and Modbus protocols
Measurement Functions of UTE9800+ Series:
* Voltage, Current, Frequency
* True RMS
* Crest Factor
* Total Harmonic RMS
* Voltage and Current Measurement Values
* Apparent Power
* Harmonic Distortion Factor
* Power Factor
* Harmonic Measurement Values
* Active Power
* Voltage and Current Peak Values
Application Scenarios:
* Quality inspection of measuring products
* Testing electric heating appliances
* Laboratory measurement of circuit boards
* Production measurement of electrical products
* Measurement of computer power adapters
* Measurement of household small appliances
Packing List:
* 1 × Digital Power Meter
* 1 × Power Cable
* 1 × Warranty Card
* 1 × RS-232C Communication Cable
Packaging Details:
* Weight: 7kg
