UNI-T UTL8211 Single-Channel DC Electronic Load Tester 150V/40A 400W with 2.8" LCD Display
Description of UTL8200 Series:
The UTL8200 Series Electronic Load features a 2.8-inch LCD display, offering convenient and simple operation, a stylish and elegant appearance, and stable performance. It supports fully independent dual-channel testing and provides a wide power measurement range. Voltage and current measurement speeds reach up to 40kHz, with a testing resolution of up to 1mV/1mA. The instrument comes with rich testing functions and modes, and is equipped with a standard RS-232C communication interface, flexibly meeting various field testing requirements and enabling seamless integration with automated production lines and automated test systems (ATS).
Applications:
* Power supply testing, adapter/charger testing, battery testing, lithium battery protection board testing, ATE (Automated Test Equipment), and component testing. Widely used in home appliance manufacturers, LCD and computer component manufacturers, switch-mode power supply and LED manufacturers, and adapter/charger production and testing facilities.
Features:
* UTL8211: Single-channel 150V/40A, 400W
* UTL8212: Dual-channel 150V/2×20A, 2×200W
* Four Basic Modes: CC/CV/CR/CP
* High Resolution: 1mV/1mA
* Dynamic Current Testing
* Voltage and Current Measurement Speed: Up to 40kHz

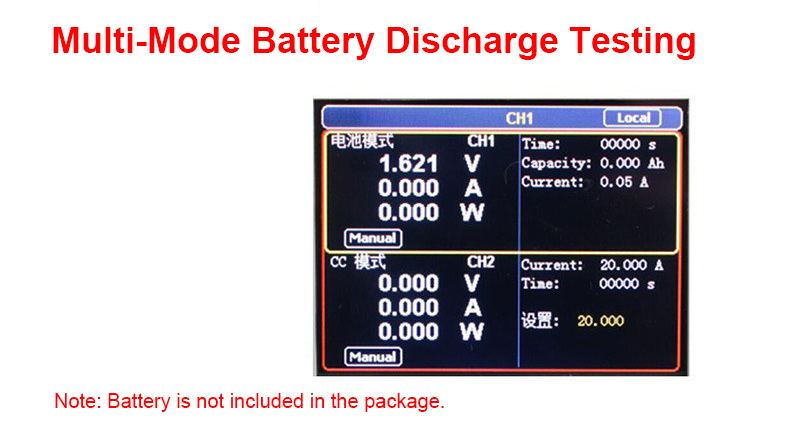

* Multi-mode Battery Discharge Testing
* List Mode: Supports Automatic Testing
* Independent Short-Circuit Testing Function
* Protections: Over-voltage, Under-voltage, Over-current, Over-power, Over-temperature, Reverse Connection Protection
* Remote Operation and Monitoring via Companion PC Software
* Power-Off Memory Function
* Intelligent Temperature-Controlled Fan
* Standard RS-232C Interface Supports SCPI Protocol
Packing List:
* 1 × Electronic Load
* 1 × Power Cable
* 2 × 250V/0.5A Spare Fuses
* 1 × Certificate of Conformity and Warranty Card
Packaging Details:
* Weight: 5kg
Note:
* Battery is not included in the package.
