UNO R3 T800S Silver Entry-Level Tank Chassis Smart Robot Chassis without Electronic Control Kit
Attention:
- Servos cannot be controlled when Bluetooth control is used. If you need the servo function, please use the controller for PS2 to control;
- To ensure the safety of transportation, the tank chassis is not assembled. We provide assembly instructions and users need to assemble the product by themselves;
- The default reduction ratio of 37 motor with encoding disk is 1:30. If you need other reduction ratios, please contact customer service;
- Special note that the T800S does not support encoder control. If encoder control is required, it is recommended to change it to an independent 4WD structure and replace the main control board, please contact customer service for more details;
- When it is driving with heavy load and the load is too heavy, the steering control panel will limit the current during travel.
Features:
T800S tracked tank chassis
- It is an entry-level programming tank car.
Multi-functional chassis
- The chassis can be freely installed with a main control board and various functional equipment and facilities, which greatly meets the needs of users for different functions.
- Mobile phone control (optional Bluetooth module required), controller control (controller for PS2 needed), strong scalability, programming development and classic tank shape.
Control Mode
- It supports for PS2 controller and Bluetooth APP control for Android cellphones. Bluetooth module and controller for PS2 should be bought separately.
Applications
- Suitable for a wide range of terrains: grass, smooth ground, wooden floors and uneven surfaces.
- Suitable for universities, laboratories, scientific research institutes, robot enthusiasts, etc.
Technical Parameters:
- Product name: T800S tank chassis with independent suspension
- Product dimensions: 545 x 355 x 125mm/21.5 x 14 x 4.9"
- Body material: aluminum alloy
- Motor: 37 DC brushed geared motor with encoding disk and reduction ratio 1:30
- Load capacity: about 15kg/33.1lb
- Ground clearance: 60mm/2.4"
- Track material: plastic track
- Vertical obstacle height: ≤80mm/3.1"
- Chassis weight: About 3.14KG/6.9LB
- Surface treatment: sandblasting anodizing
- No-load speed: about 0~0.74m/s
- Optional chassis colors: Silver and black
- Track width: 45mm/1.8"
Attention:
- The payload of the tracked vehicle is a range value. When you use motors with different torques, its load will also change. The lower the speed, the greater the load. For specific load and speed requirements, you can contact customer service, and we can configure the corresponding motors for you.

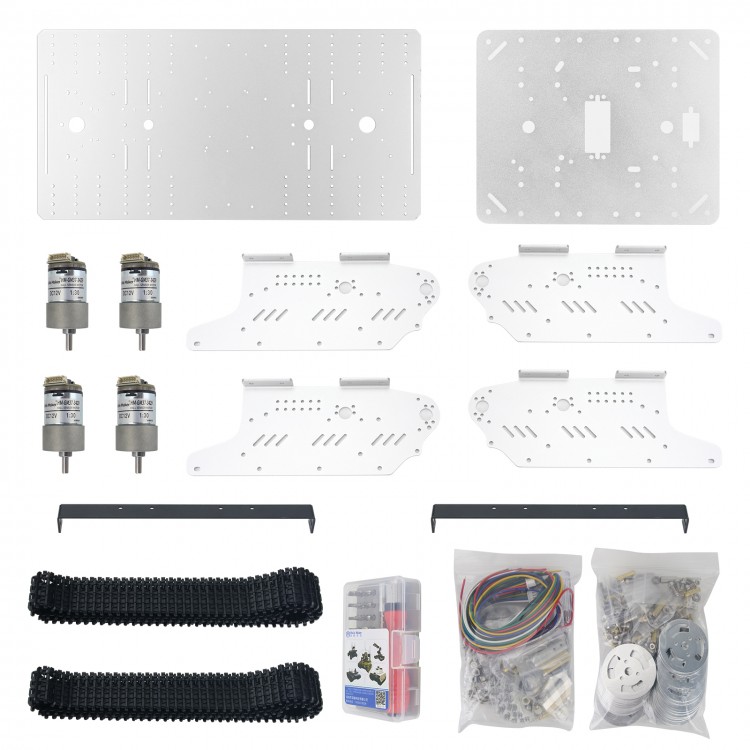

Package Included:
- 1 x Top plate
- 1 x Base plate
- 20 x Load-bearing wheels
- 2 x Tracks (about 147 sections for one track)
- 1 x Screw parts tool kit
- 4 x Side plate
- 2 x Supports
- 4 x Driving wheels
- 4 x Motors
Note:
- Assembling is needed.
- Battery is not included. It is recommended to use a 12V 12000mAh polymer lithium battery pack (11.1V or 12.6V). If you have any questions, please contact customer service. Thank you!
Packaging Details:
- Volume weight: 6.5kg
