• US Ettus USRP B200 Hardware Driver UHD Software Kit Board Only Compatible USB 2 interface

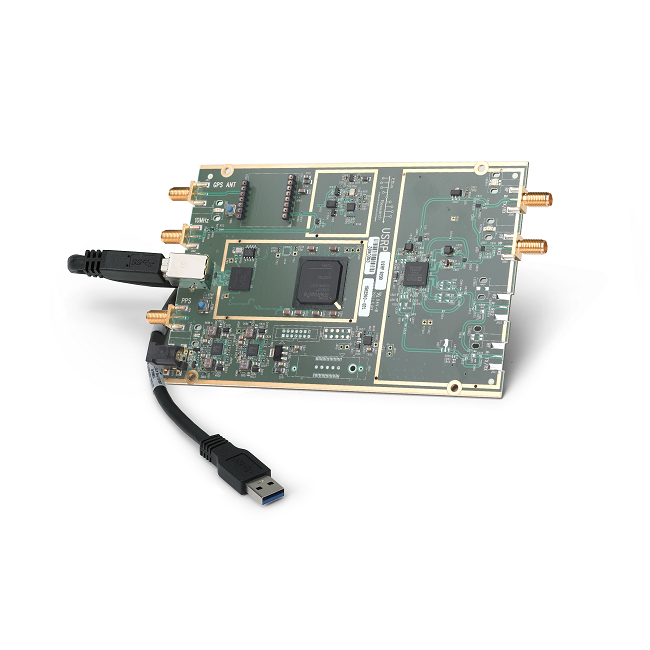

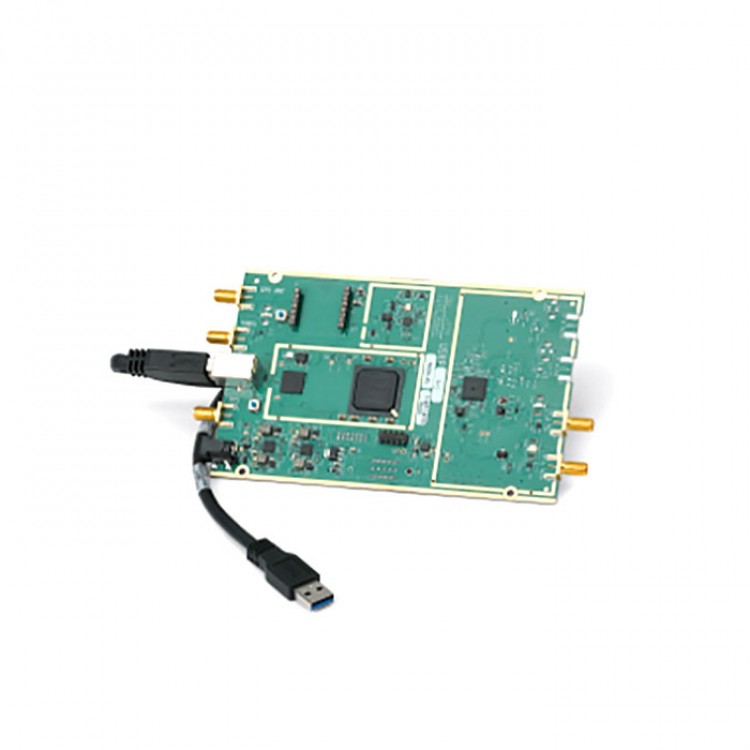

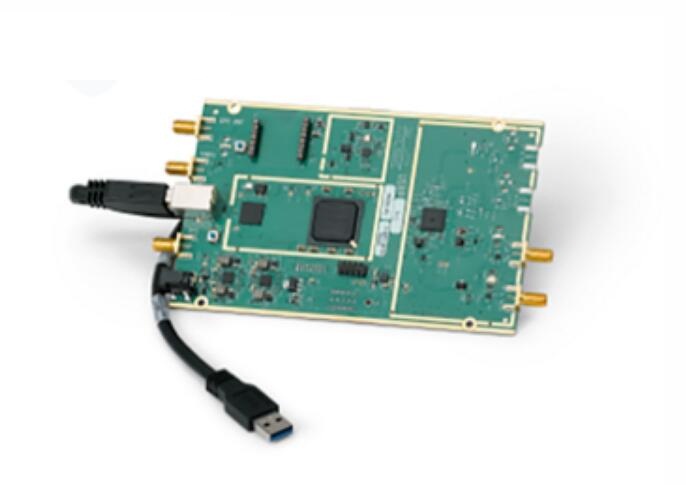

US Ettus USRP B200 Hardware Driver UHD Software Kit Board Only Compatible USB 2 interface

Availability: Out Of Stock

  • Price:$1,292.19
  • Price in reward points: 12922 Reward Points: 129
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $1,266.35 $1,240.50 $1,201.74 $1,150.05 Contact US
Quantity:

US Ettus USRP B200 Hardware Driver UHD Software Kit Board Only Compatible USB 2 interface

Product Description:
- USRP B210 is the products from Research Laboratory of Ettus company.It provides early the most cutting-edge experimental hardware platform.
- It can cover the frequency range of 70MHz-6GHz by using  Spartan6 FPGA and USB3.0 technology with integrated RFIC technology.
- This new platform can provide more widely experimental application including FM and TV radio,WiFi,mobile phone,ISM and so on.
- The USRP B200 is powered by a bus and has only one single board, which includes a transmitting channel and a receiving channel.
- USRP B200 uses analog RF chip to achieve a new high performance experimental platform.the use of USB 3 chipset (backward compatible instantaneous bandwidth of 6MHz USB 2).Up to 56MHz instantaneous bandwidth can be realized through USB 3.0 chipset (backward compatible instantaneous bandwidth of 6MHz USB 2)
- With this new equipment,users can develop their own GNU Radio application, and can seamlessly transferred their design to higher performance USRP system, such as Gigabit Ethernet connection USRP contains N210 or embedded USRP E100.N210 and E100 are independent with the RF board which has higher sensitivity and dynamic range at the same time.The IP3 performance uses a common USRP hardware driver (UHD) framework

Characteristics:

- Support 1 - way transmission, 1-way reception
- Full duplex or half duplex
- Frequency coverage: 70 MHz to 6 GHz
- Baseband: 12-bit ADC/DAC
- USB 3 interface, supports up to 61.44 MS/s sampling rate, real-time bandwidth of 56 MHz
- Compatible USB 2 interface
- The system master clock can be configured in the range of 5M ~ 61.44MHz, so it can be convenient to realize different sampling rate
- Spartan 6 XC6SLX75 can be re written program FPGA
- It is compatible with the USRP hardware driver (UHD), GNU Radio
- Can be used as the development platform of AD9361 RF chip
- USB power supply

USRP B200 application development:
- USRP hardware driver (UHD) software supports USRP B200. UHD is an open source, cross platform driver, which can run under Windows, Linux and MacOS. UHD is able to provide a generic API that can be used by multiple software frameworks such as GNURadio, API.
- The USRP products users:development enthusiasts, students and professionals together to form a dynamic group. As a member of this group, you can look for help in the development process, share the future of software radio technology and contribute to their innovation. Ettus also provides product support.

AD9361 RF integrated circuit:USRP B200 uses AD's AD9361 chip. Ettus and AD have established partnerships that use this cutting-edge RF technology to make software radio easier to use. With USRP B200, developers can be faster and easier to prototype design.

Package List:
- 1 x  USRP B200 device
- 1 x  USB 3 connection
