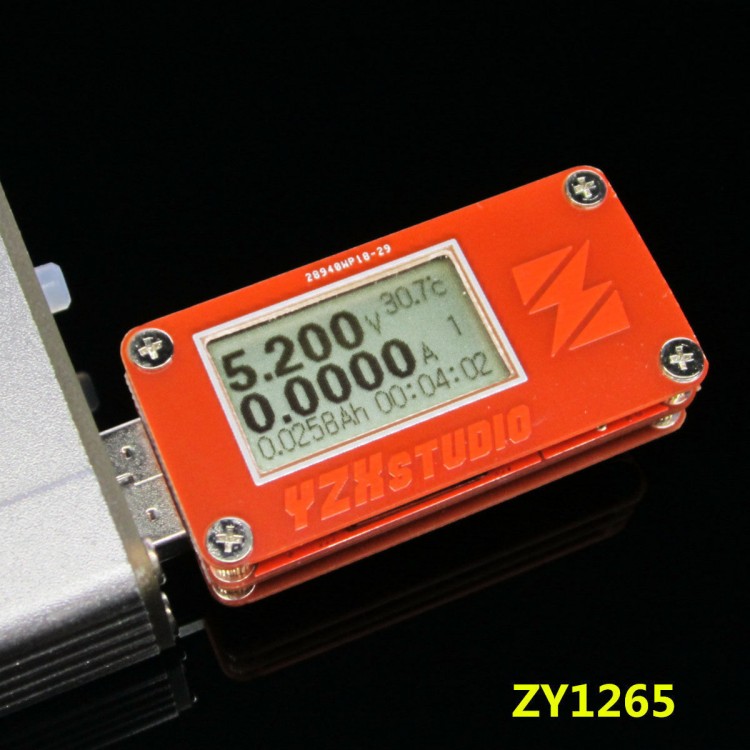

• USB 2.0 LCD Power Monitor Tester Voltage Current YZXstudio ZY1265 QC 3.0 18-bit Power Meter

USB 2.0 LCD Power Monitor Tester Voltage Current YZXstudio ZY1265 QC 3.0 18-bit Power Meter

Availability: In stock, usually dispatched in 1 business day

  • Price:$25.99
  • Price in reward points: 260 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $25.47 $24.95 $24.17 $23.13 Contact US
Quantity:

USB 2.0 LCD Power Monitor Tester Voltage Current YZXstudio ZY1265 QC 3.0 18-bit Power Meter


Description:
- ZY1265: new red table with MicroUSB port can measure the data line, red PCB frame shell, high-resolution dot matrix LCD FSTN large display life much longer than the OLED can be a long continuous display, not open backlight than the OLED power , The larger the screen larger fonts, voltage and current curves drawn on the same screen

Specifications:

- Size: 63 * 23 * 12mm
- Weight: Contains iron box 46g, ZY123x bare metal 18g, ZY125x bare metal 13g
- Voltage range: 3.5-13V, over-range will lead to voltage accuracy, voltage 18V. ZY1252 version of the 3.5-24V, voltage 28V
- Voltage Resolution: 0.001V (12bit) ZY1252 Edition 0.0001V (18bit)
- Current range: the average positive and negative 0-3A, the moment can be the largest integral 24A (more than 3AUSB mouth can not afford more than Kazakhstan) to change the large current can choose to store large 10mA shunt direct support 24A
- Current resolution: 0.0001A (0.1mA 18bit)
- Capacity range: 0-99999Ah 0-99999Wh, in fact, 999999 and 9999999 also support, but the decimal point is not in, only shows the high 5
- Capacity Resolution: 0.0001Ah 0.0001Wh (0.1mAh 0.1mWh)

Package included :

- 1 x USB 2.0 LCD Power Monitor (Red) YZXstudio ZY1265 QC 3.0 18-bit Power Meter
