USB External S/PDIF Optical Sound Card Stereo Channel 5.1 DAC Audio Line In

USB External S/PDIF Optical Sound Card Stereo Channel 5.1 DAC Audio Line In

Win98/ME/2000/XP/WIN7(32/64bit)/VISTA/MAC OS9.1 (MAC no need drive,auto recognise)

The Latest Drive Download


WIN8/Win8.1/Win10 Drive

Product Decription: This external USB sound card offers a great solution for upgrading your PC or laptop internal audio adapter.
- This device supports 32 KHz,44.1 KHz sampling rate in digital and analog sound recording,and in digital or analog audio playback.After you will plug-in the box in to your computer it will install the drivers and then you will be able to hook up a full 5.1 system via the 3.5mm jacks or the optical output.This external sound card can be also used for input devices like microphone or line-in sound producing devices.

Features:
- External 4 channel (5.1) sound card
- 2 interpolator for digital playback data to improve quality
- Dolby digital audio streaming via S/PDIF out
- Fully duplex playback/recording of audio stream without a sound card in PC
- Stereo MIC support with 33db maximum capability
- 4 channel DAC output with 16 bit resolution
- USB 2.0 full speed 12Mbit serial data transmission compliant
- Support Win98/ME/2000/XP/Win7/Win8/Win10(32/64 bit)VISTA/MAC OS9.1(MAC not need drive),need drive,OS drive free AC3
- Support AES/EBU,IEC60958,S/PDIF
- Support hardware 5.1 channel,7.1 virtual Sound Channels
- Can connect 5.1 speaker
- 48KHz sampling rate,support 32KHz/44KHz/48KHz digotal recording function.
- Support Win98/ME/2000/XP/WIN7 32 64/WIN8/WIN10/VISTA/MAC OS9.1
- Separate sound card duplex audio stream playback and recording ,no need PC built-in sound card.
- USB2.0 downward compatible USB 1.1;compatible audio device V1.0
- Support 12Mbps USB full speed transmission.

Specifications:
- Color: Black
- Material: Aluminum
- Transmission speed: full speed 12Mbit
- Compatible with: Windows 8.1, Windows 10

Supporting Software:
- Windows 10 Drivers
- Windows 7 Drivers
- Installation Instructions

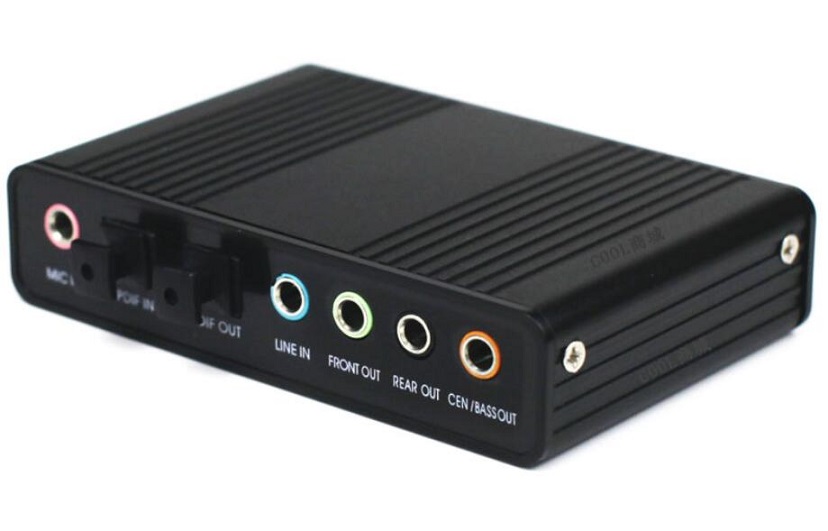

3PCS 3.5mm audio output port includes:
1.Front "L + R "speaker outout(green FRONT OUT)
2.Rear "Ls + Rs"speaker outout(black READ OUT)
3.Middle C/bass"Sub-woofer" output (yellow CEN/BASS OUT)

Note:
2.0:2PCS speakers;2CH
2.1:3PCS speakers 2CH Left Right + Subwoofer
4.0:4PCS speakers 4CH front left right+ rear left right
5.1:6PCS theater,6CH front left right+ rear left right + middle/bass

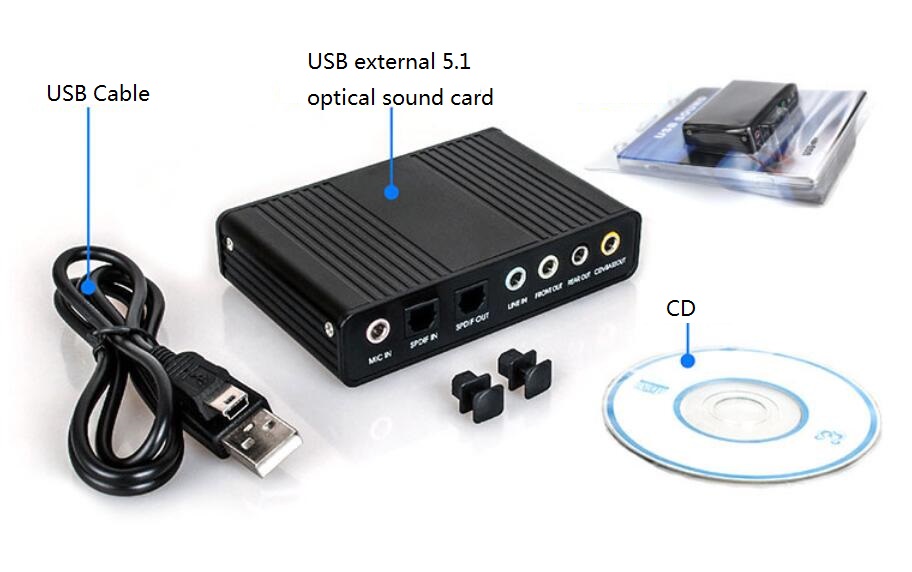

Package List:
- 1 x USB external sound card
- 1 x CD driver disk
- 1 x USB Cable
