Description:
The arcade game has been turned into a home-use, and integrated to achieve a variety of functions. Like a regular game console, it's easy to use, featuring small size and convenient wiring.

Features:
1. The extension cable jamma board is externally designed, and the buttons/shots/combinations can be set freely, which is more convenient to use.
2. 12v high-power design, can output 10A current, 6 seats for SNK can also drive. With polarity protection, you will not be afraid of the problem of wrong plugging and anti-burning, and no bulky power supply is needed. The power supply should be above 12v 6a, supporting 5.5*2.5 interface (internal for positive pole and external for negative pole).
3. 5V output supports an old arcade system board sound.
4. 5V adjustment function.
5. USB interface for PS3/PS4/XBOX360 gamepads and joysticks. There are many joypads and joysticks on the market that can't be tested one by one. Generally, the joysticks that support PS3/4 are selected.
6. Interface for SNK/DB15, supporting for NEOGEO joypad and joystick/self-made joystick, according to the interface marked on the picture.
7. MD2 RGBS/SCART interface. You can use md2's RGBS cable (for SEGA) and SCART cable to connect to a color monitor or a TV with a SCART device. Please purchase the cables separately.
8. S terminal/A micro video output, which can be connected to TV with S terminal and A micro video. Generally, A micro video is not built, because each substrate and Cbox will have a certain frequency error effect.
9. The ycbcr component output can be connected, and some TVs may not support it.
10. The function of adjusting the picture position. The picture can be adjusted up, down, left and right, which can solve some compatibility problems such as the distortion of the black screen of the substrate.
11. Compatible with a variety of commonly used substrates and decks.

Compatible Gamepads and Joysticks:
- Fit joysticks including for SUNGA 4, HORI, PXN, XBOX360, PS3 and PS4
- One-key pairing, compatible with multi-platform game controllers
- Suitable for 8BitDo USB wireless receiver. It can not only support game controllers for 8BitDo series, but also more third-party controllers such as for PS3, PS4, Switch, WiiU and other controllers. It reduces the tedious Bluetooth pairing process. One-click pairing of the USB wireless receiver solves the tedious problem of pairing.
- Can use receiver for 8BitDo corresponding (SELECT+UP): XINPUT mode

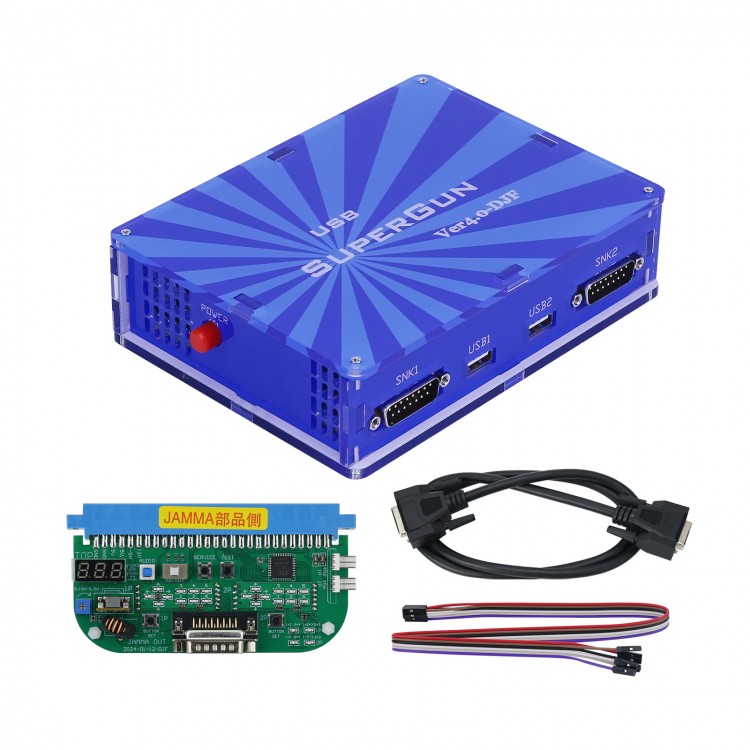

Package Included:
- 1 x Cbox
- 1 x Board
- 1 x Cable

Note:
- Power supply is not included.

Button Setting:
(Start button + coin button + up)
Set display light (up, down, left and right 123456) in sequence. If there are no 6 keys after key setting, wait for the light to go out and save automatically

Burst settings:
(Start key+123.. your desired key) Operate again to close.

Key Combination Setting:
(start key + left) 5 keys = 1 + 2
6 keys=3+4

(start key + right)
5 keys=1+2+3, 6 keys=2+3
