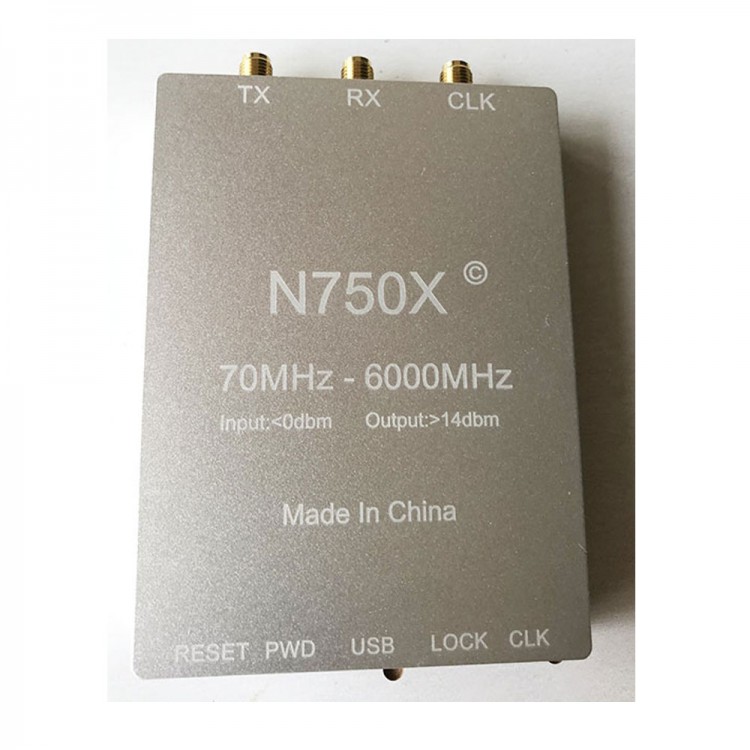

USRP SDR Board AD9364 Development Board 70M-6GHZ Without Shell Antenna Replacement For B200MINI
Description:
Software radio platform is an optimized and improved version based on B200MINI schematic diagram. RF switch channel is optimized to reduce the mutual interference between RX and TX. Although B200MINI can use a single antenna to transmit and receive, its wireless performance loss is huge. RF switch SKY13350-385LF used by B200MINI has a maximum isolation value of 27 dB typical at 2.5 GHz, but in full duplex mode, it will cause 0.4db loss of each channel and TX to RX input. This switch is removed in the SDR board, improving transceiver performance, and increasing the sensitivity of RF receiving channel.
This latest USB3.0 version software radio hardware platform can realize spectrum analysis by software for SDRWin.
This hardware adopts the design scheme for AD9364+Spartan-6 75K, which can directly replace the USRP B200 product. It is with onboard high-precision VC-TCXO.
This hardware can be customized for mass production according to customer needs.
Function Description:
- ADC/DAC: AD9364
- MODE: RTX
- FPGA: For Spartan-6 75K
- Maximum sampling rate: 56MSPS
- CLK IN: External clock or PPS input, support external 10MHZ clock or GPS PPS signal input
- RX: Wireless receiving SMA, maximum input 0db
- TX: Wireless transmission SMA, maximum gain>+14db
- CLK SYNC: PPS signal heartbeat indicator
- CLK LOCK: Clock synchronization lock indication
- USB: USB3.0 or USB2.0 automatic switching interface
Application:
1. GSM micro base station (for openBTS)
2. LTE micro base station (for srsLTE)
3. Spectrum analysis (for sdrwin)
4. 6G signal source (for sdrwin)
5. Other SDR applications
Technical Support:
- For Software/Hardware/MATLAB/SDRWIN
Software:
- Link for http://sdrwin.com/downloads/sdrwin.zip
Package Included:
- 1 x Board
